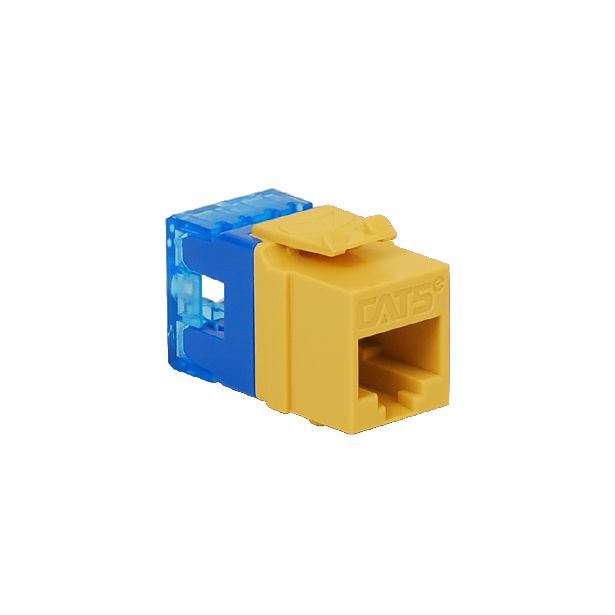

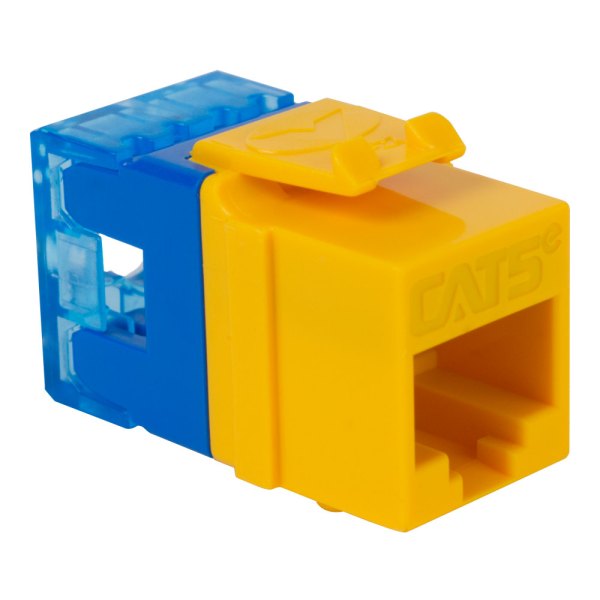

Icc IC1078F5YL CAT5e RJ45 Keystone Jack HD Style

Product Description

The ICC IC1078F5YL is a Category 5e High Density (HD) modular RJ-45 keystone jack designed with a smaller rear footprint for maximizing space. Engineered for superior performance and reliability, it supports up to Gigabit Ethernet applications. The advanced printed circuit board design provides optimum signal quality exceeding TIA Category 5e performance standards.

• CAT5e rated connectors provide excellent performance for data networks.
• Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
• PCB technology provides maximum performance and superior signal quality.

Product Highlights

This CAT5e RJ45 keystone jack is 8-position 8-conductor (8P8C) and is backward compatible with all lower rated category components. Terminate with 110 punch down tool or JackEasy Termination Tool.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC1078F5YL
• Country of Origin: Taiwan

Technical Specifications

• Wire Type: Cat5e
• Brand Name: ICC
• Manufacturer: ICC
• Product Name: Cat 5e, HD, Modular Connector, Yellow
• Product Type: Network Connector
• Compatibility: ICC ICACSPDT00 Punch Down ToolICC Cat.5e Patch Cables:ICPCSJ SeriesICPCSK SeriesICC IC107:FaceplatesInsertsSurface Mount BoxesBlank Patch PanelsICC IC108:Furniture FaceplatesBezelsSurface Mount Boxes
• TAA Compliant: yes
• Connector Type: RJ-45 Network Female
• Contact Plating: Gold,Nickel,Phosphor Bronze
• Package Contents: Cat.5e Network Connector\n1 x Wire Cap\nInstallation instructions
• Connector Details: 1 x RJ-45 Network Female
• Packaged Quantity: 1
• Network Category Type: CAT5e
• Environmentally Friendly: Yes
• Manufacturer Part Number: IC1078F5YL
• Environmental Certification: ROHS
• Country of Origin (subject to change): Taiwan, Province of China
• SKU: IC1078F5YL
• Connector Method: Punchdown
• Conductor: 8-position 8-conductor (8P8C)
• Performance: Exceeds Category 5e industry performance requirements
• Technology: PCB technology provides maximum performance and superior signal quality
• Crosstalk Cancellation: Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
• Footprint: Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
• Wiring Diagram: Includes an integrated TIA-568A/B color wiring diagram
• Listing: UL listed
• UPC/EAN Code: 633758018135
• Condition: New
• Category: Connectors, Keystone Jacks
• Side 1: RJ-45 (F)
• Cable Type: CAT 5e
• Connector A: Cat 5e, RJ-45
• Type: Connector
• Features: Gold Plated
