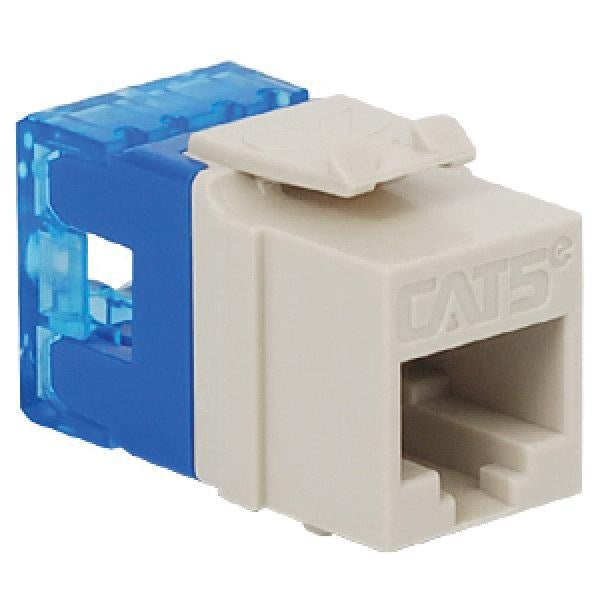

ICC IC1078F5WH CAT5e RJ45 Keystone Jack, HD Style, White

Product Description

The ICC IC1078F5WH is a CAT5e RJ45 keystone jack designed for high-density applications. This connector is engineered to accommodate space constraints while providing reliable performance for data transmission. It supports high-speed Gigabit Ethernet applications and is suitable for use with ICC CAT5e patch cords.

• Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
• Enhanced crosstalk cancellation reduces noise and enhances signal quality.
• Compatible with all work area outlets, inserts, and surface mount boxes.

Product Highlights

This keystone jack features an 8-position, 8-conductor design. It is backward compatible with lower-rated categories, making it versatile for various networking needs.

Product Information

Standard Information

• Brand: ICC
• Country of Origin: Taiwan

Technical Specifications

• MPN: IC1078F5WH
• Color: White
• Wire Type: Category 5e
• Dimensions: 1.2 inches x 0.64 inches x 0.82 inches
• Temperature Rating: -40 to 68 °C
• Amperage Rating: 1.5 Amps
• Contact Resistance: 20 Mega-Ohm
• Plug Insertion Life: 750 Cycles
