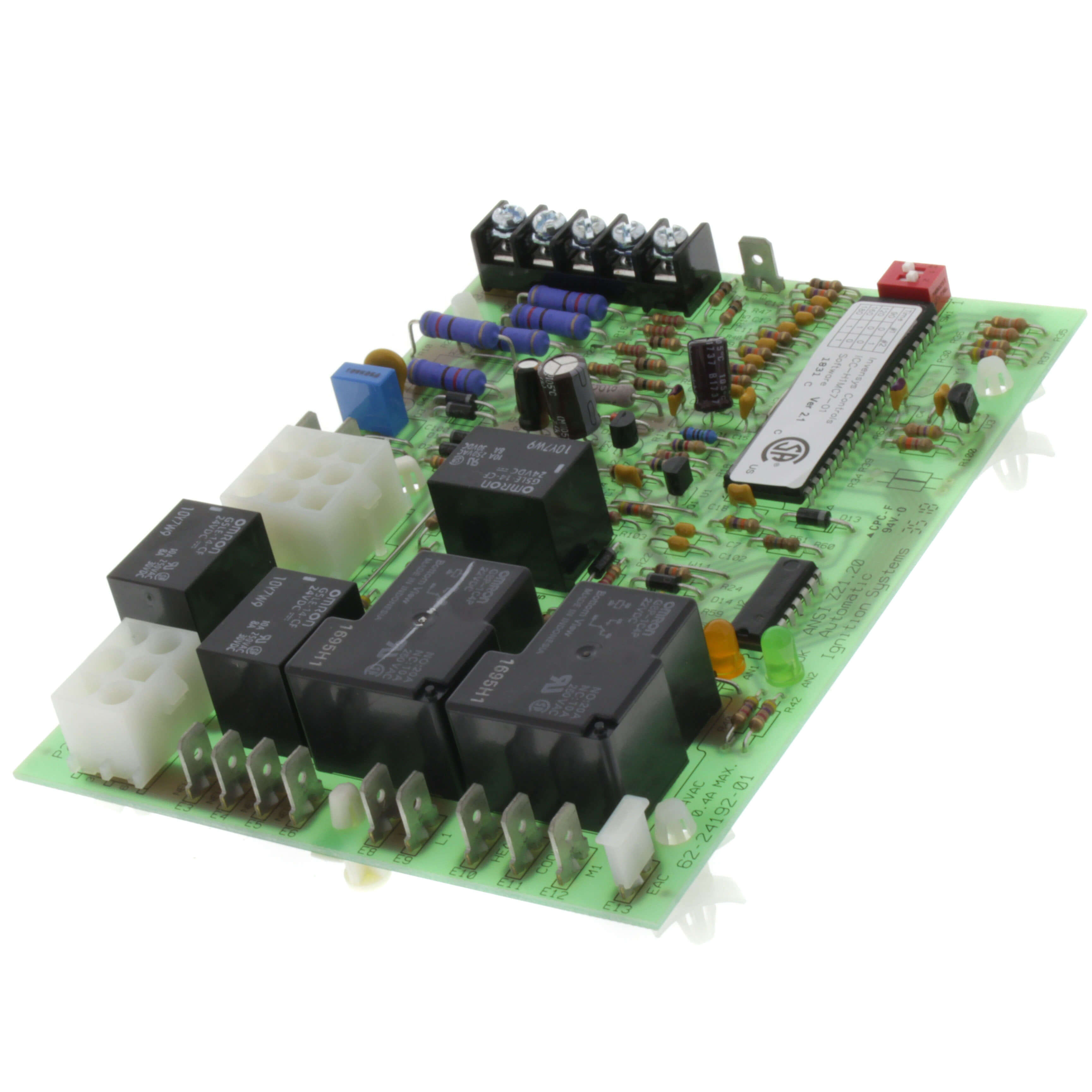

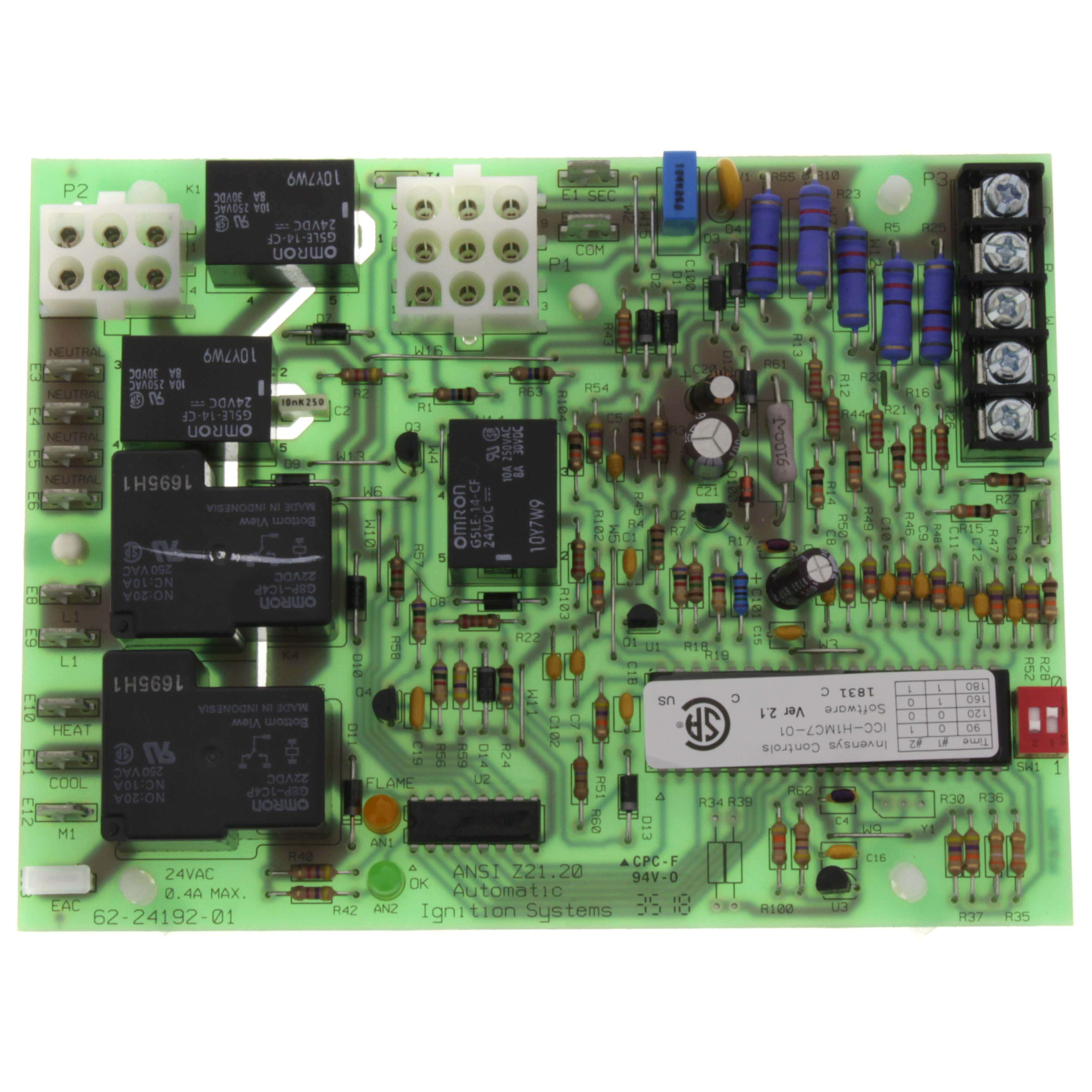

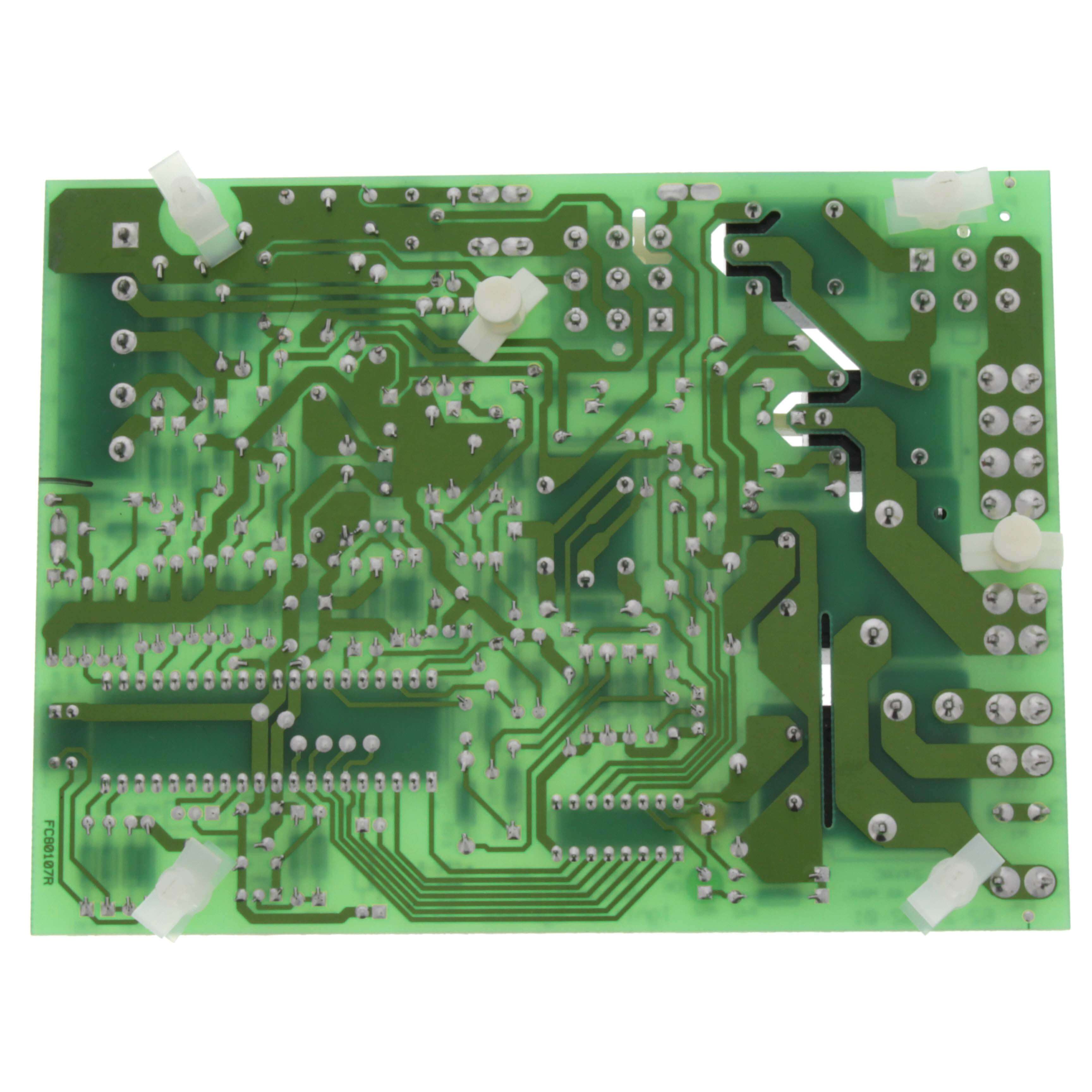

Robertshaw 695-200 Integrated Furnace Control

Product Description

The Robertshaw 695-200 Integrated Furnace Control is a reliable option for managing furnace operations. Designed for use with standard 120 VAC Silicon Carbide hot surface igniter elements, it ensures precise temperature management for various applications. Microprocessor monitoring increases safety and operational accuracy.

• Compatible with Silicon Carbide igniter elements
• Microprocessor monitoring for safe operation
• LED displays for error codes

Product Highlights

This control board is built to meet or exceed OEM specifications. The intuitive interface and customizable settings make it suitable for a range of industrial processes. Durable construction ensures long-term performance.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 695-200

Technical Specifications

• Dimensions: 8.07 inches length x 6.18 inches width
• Weight: 12.1 ounces
• Temperature Range: 22°F to 149°F
• Humidity Range: 10% to 95%
• Ignition Type: Intermittent Hot Surface Pilot
• Output: 5.0 A @ 120 VAC for HSI Contact, 1.0 A @ 120 VAC for Gas Valve Contact
