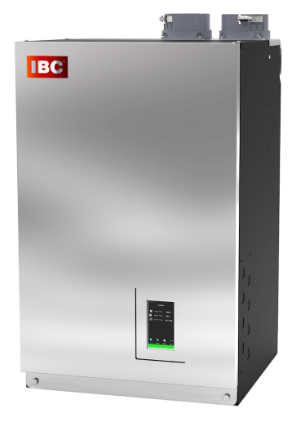

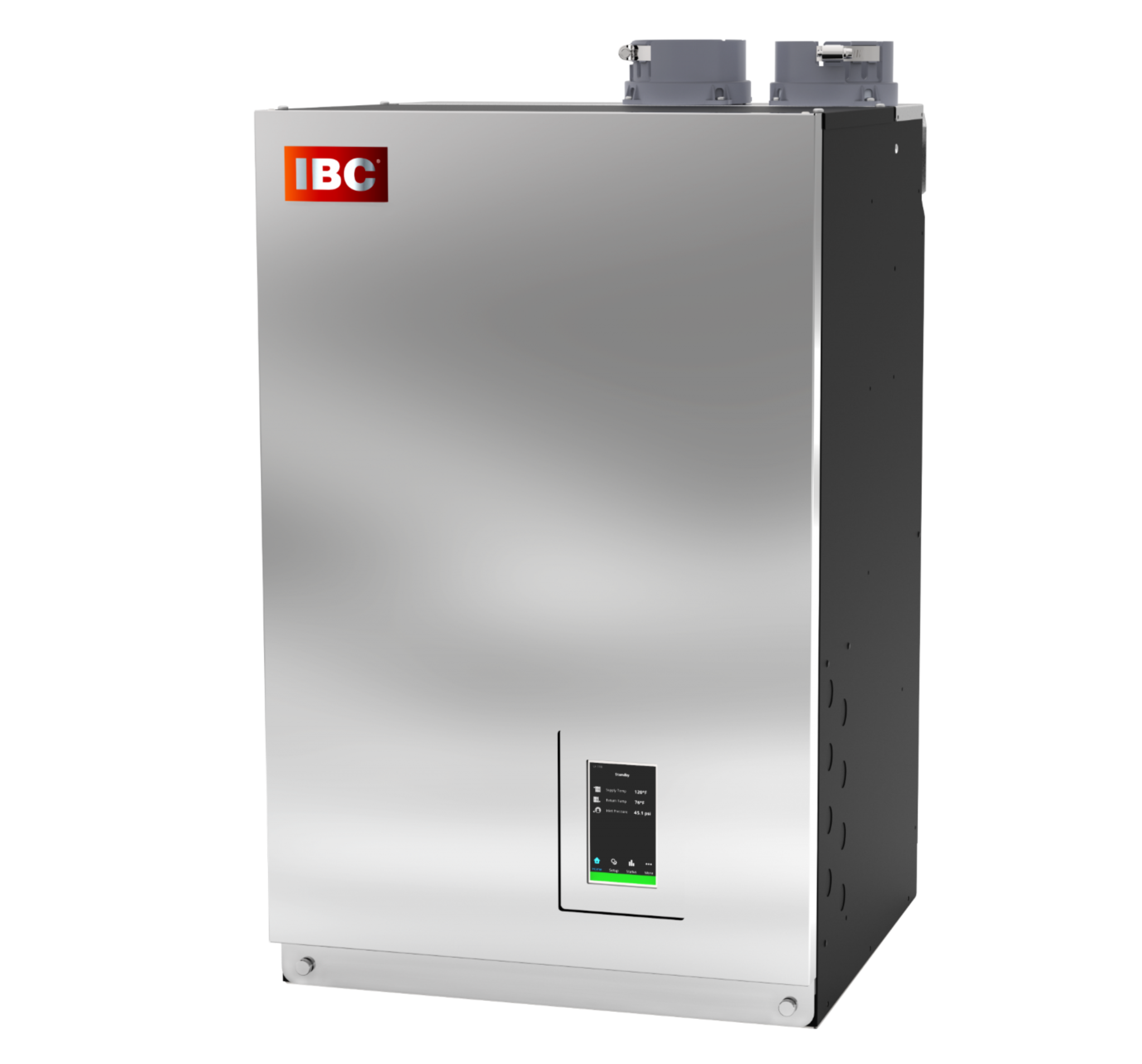

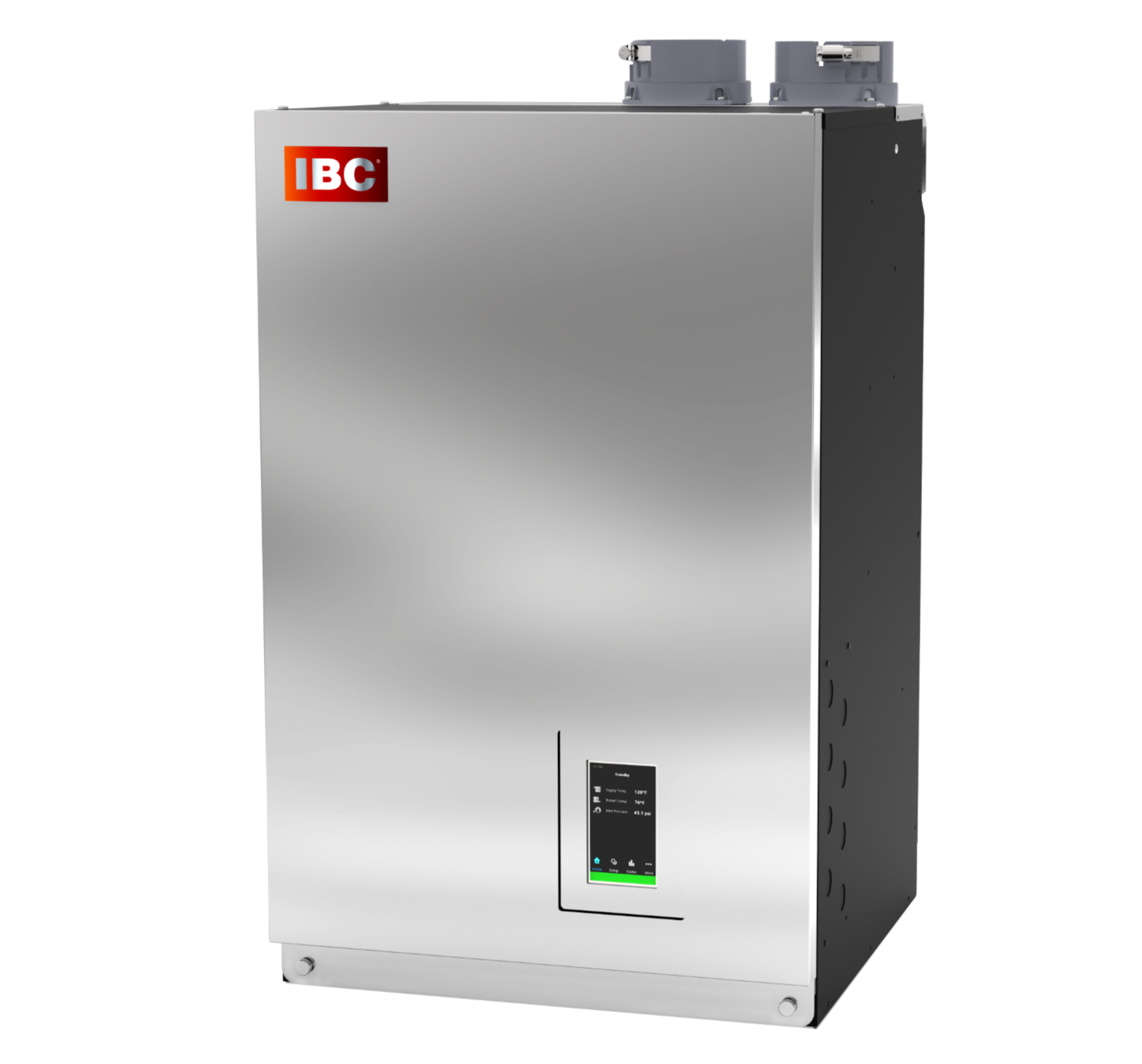

Ibc VX150-23-150 residential high efficiency natural gas condensing boiler 23 - 150 MBH

Product Description

The IBC VX150-23-150 is a residential high-efficiency natural gas condensing boiler designed for optimal home heating. It features built-in 4-zone pump or valve control, eliminating the need for external pump controls. Utilizing MFZ Technology, it protects internal components and ensures longevity. The boiler includes a CSA/UL approved LWCO and manual reset high limit for safety, and offers a turndown ratio of up to 6.5:1 for efficient operation in varying weather conditions.

• Built-in 4 zone pump or valve control in addition to the primary control. 5 pumps total. Replacing the need for external pump controls
• MFZ Technology: Patented moisture management system. Protects and ensures long life for all components in the boiler
• Built-in CSA/UL approved LWCO and manual reset high limit

Product Highlights

High-efficiency natural gas condensing boiler with integrated zone control and advanced moisture management for residential heating.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: VX150-23-150
• Country of Origin: North America

Technical Specifications

• AFUE Rating: 95 %
• Condensing/Non Condensing: Condensing
• Gas Connection: 1/2 in NPT-F
• Gas Type: Natural Gas
• MFG #: 010-122
• CSA Input (Natural Gas or Propane): 23 - 150 MBH
• CSA Output: 22 - 138.5 MBH
• Minimum Gas Pressure (Natural Gas or Propane): 4 inch w.c.
• Maximum Gas Pressure (Natural Gas or Propane): 14 inch w.c.
• Power Consumption (120Vac/60Hz): 54 Watts @ full fire with internal pump
• Pressure Vessel Water Content: 2.79 USG / 10.56 Liters
• Maximum Boiler Flow Rate: 19 USgpm
• Minimum Boiler Flow Rate: 3 USgpm
• Maximum Operating Pressure: 50 psig
• Minimum Water Pressure: 8 psig
• Minimum Water Temperature (Space Heating): 34 °F / 1 °C
• Maximum Water Temperature (Space Heating): 190 °F / 88 °C
• Maximum Equivalent Vent Length (2 inch): 50 ft
• Maximum Equivalent Vent Length (3 inch): 170 ft
