Ibc sft-199-1 sft 199-1 superflow condensing tankless water heater 199,000 btu/h

Product Description

The IBC SFT-199-1 Superflow is a high-efficiency tankless water heater designed to provide a continuous supply of hot water at a constant temperature. This condensing unit eliminates the need for a water tank, offering an uninterrupted hot water supply for multiple taps simultaneously. It features a heat capacity of 28,500 to 199,000 BTU/H and an efficiency rating (UEF) of 0.9.

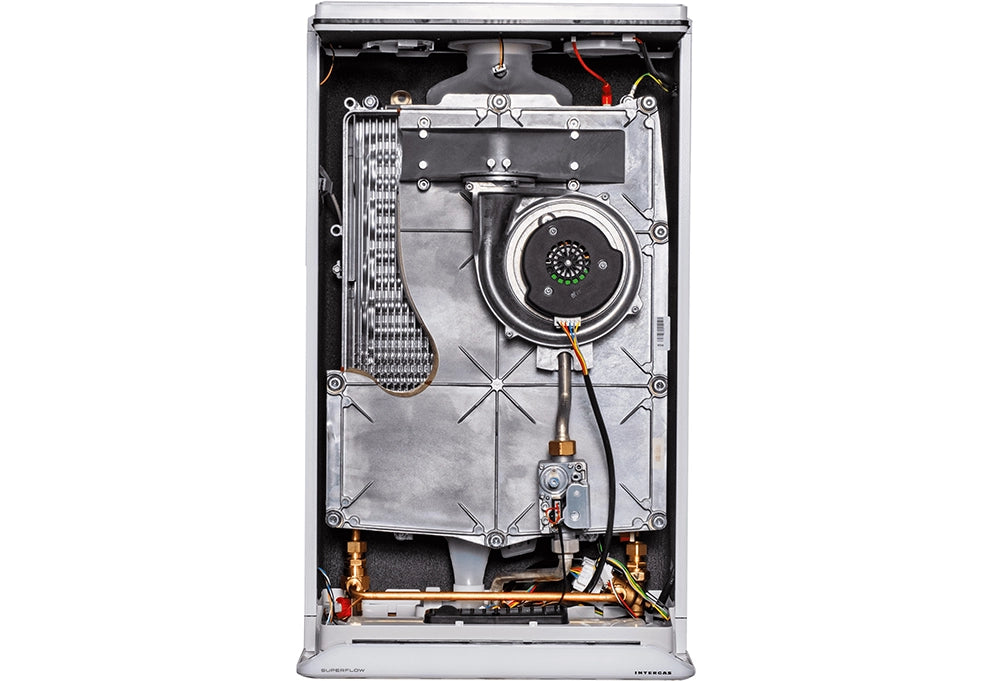

• Features a patented single-pass Labyrinth heat exchanger with fully integrated copper waterways.
• Equipped with an illuminated touchscreen control display panel for intuitive operation.
• Designed for indoor, wall-hung installation with a sleek, space-saving profile.

Product Highlights

Provides a continuous supply of hot water at a constant temperature with a compact, tankless design.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: SFT-199-1
• Country of Origin: Netherlands, USA

Technical Specifications

• Input BTU: 28,500 - 199,000 BTU/H
• Efficiency Rating (UEF): 0.9
• DHW Flow Rate: 5.4 - 10.1 GPM

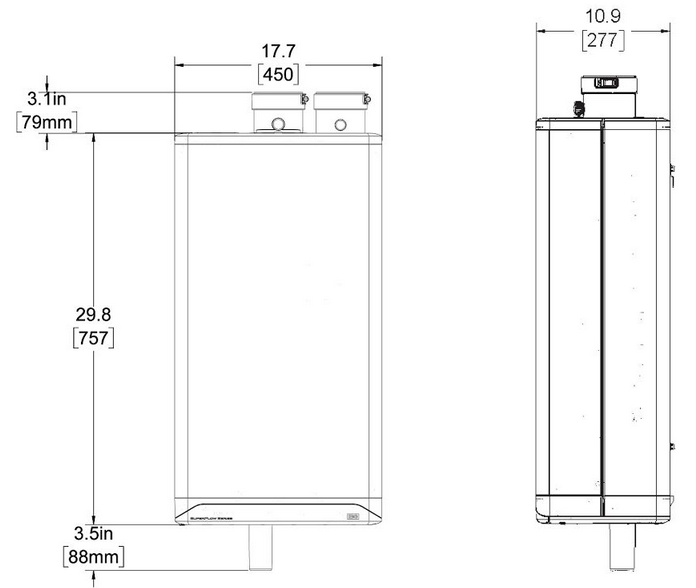

• Dimensions (W x H x D): 17.7 in x 29.8 in x 10.9 in
• Weight: 68 lb (31 kg)
• Installation Type: Indoor, Wall-hung
• Venting Type: Forced Draft Direct Vent
• Water Pressure: 40 - 150 PSI
• Gas Pressure Range: 4 - 14 inch w.c.
• Minimum DHW Activation Flow Rate: 0.5 USgpm
• Cold Water Inlet Connection: 3/4 inch Male NPT
• Hot Water Outlet Connection: 3/4 inch Male NPT
• Gas Inlet Connection: 3/4 inch Male NPT
• Pressure Vessel Water Content: 0.19 USG (0.72 Liters)
• Ambient Temperature Range: 32 - 122 °F (0 - 50 °C)
• Max Relative Humidity (non-condensing): 90%
• DHW Temperature Range: 105 - 149 °F (40 - 65 °C)
• Main Power Supply: 120Vac, 60Hz
• Power Consumption (Full Fire): 100 watts
• Casing Material: Painted steel and plastic
• Heat Exchanger Material: Copper tubes in AL block
• Venting Material & Size: 2 inch or 3 inch PVC, CPVC, Polypropylene
• Vent Clearances to Combustibles: 0 inch
• Safety Devices: Flame Proving module, Flue Gas Temperature Sensor, Protective fuse
• Certifications: ANSI Z21.10.3, CSA 4.3
• Freeze Protection: Yes
• Venting Max Equivalent Length - Schedule 40 PVC, CPVC or PPs (2 inch): 65 feet
• Venting Max Equivalent Length - Schedule 40 PVC, CPVC or PPs (3 inch): 120 feet
• Venting Max Equivalent Length - 2 inch or 3 inch 90 degree Long Sweep Vent Elbow: Allow 5 equivalent feet
• Venting Max Equivalent Length - 2 inch or 3 inch 90 degree Short Sweep Vent Elbow: Allow 8 equivalent feet
• Venting Max Equivalent Length - 2 inch or 3 inch 45 degree Vent Elbow: Allow 3 equivalent feet
• Venting Max Equivalent Length - PPs 87-90 degree Elbow: Allow 8 equivalent feet
• Venting Max Equivalent Length - 3 inch PPs Flex: (Max. 35) actual feet times 1.4
• Clearance from Combustible Surfaces - Front: 2 inch
• Clearance from Combustible Surfaces - Rear: 0 inch
• Clearance from Combustible Surfaces - Left Side: 1.5 inch
• Clearance from Combustible Surfaces - Right Side: 4 inch
• Clearance from Combustible Surfaces - Top: 2 inch
• Clearance from Combustible Surfaces - Bottom: 8 inch
• Recommended Service Clearance - Front: 24 inch
• Recommended Service Clearance - Rear: 0 inch
• Recommended Service Clearance - Left Side: 6 inch
• Recommended Service Clearance - Right Side: 6 inch
• Recommended Service Clearance - Top: 24 inch
• Recommended Service Clearance - Bottom: 24 inch
• Fuel Type: Natural Gas / Liquid Propane
• Condensing Type: Condensing
• Elevation Rating: 0-10,000 feet
• Efficiency Tier: 90% and above
