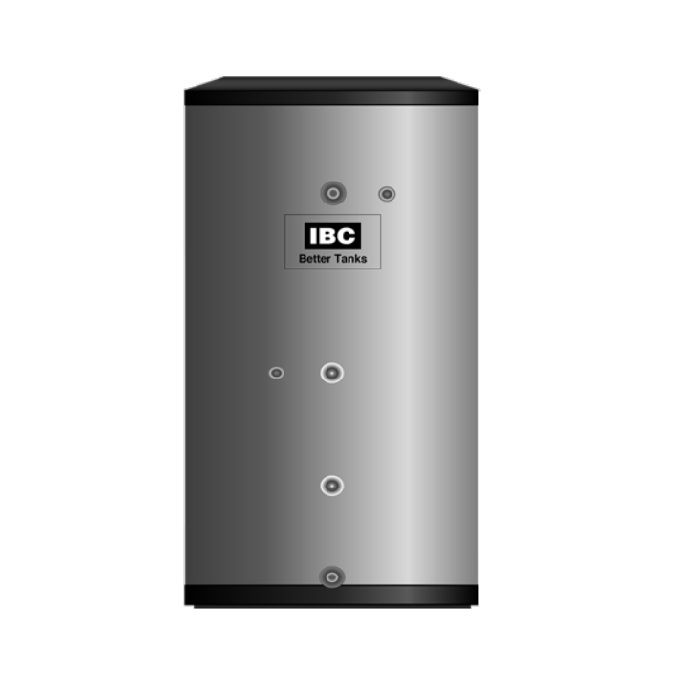

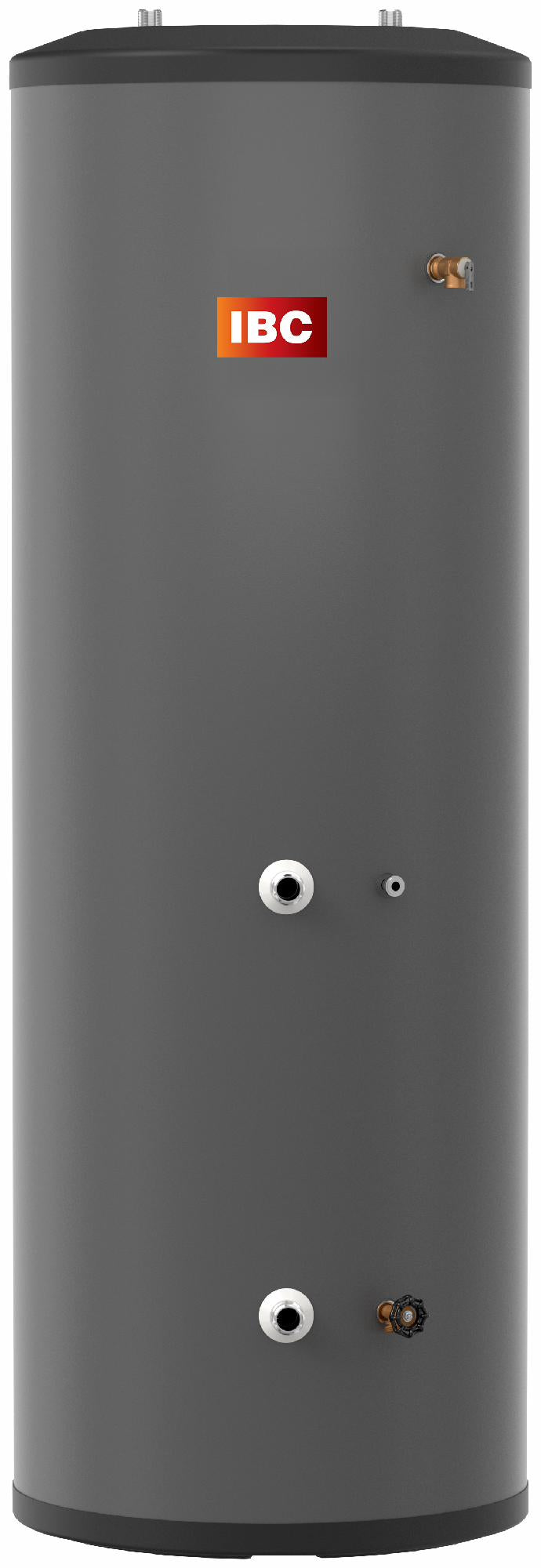

Ibc 034-009T Indirect Tank 21.8X62.8H DTI-55

Product Description

The IBC 034-009T Indirect Tank 21.8X62.8H DTI-55 provides high-performance domestic hot water. Features include stainless steel construction for corrosion resistance and a high-capacity smooth wall stainless steel coil. It has a maintenance-free design and is lightweight for easy installation. The tank includes a removable inspection port for coil and tank access.

• High performance domestic hot water
• Stainless steel construction, pickled & passivated for the highest possible resistance to corrosion

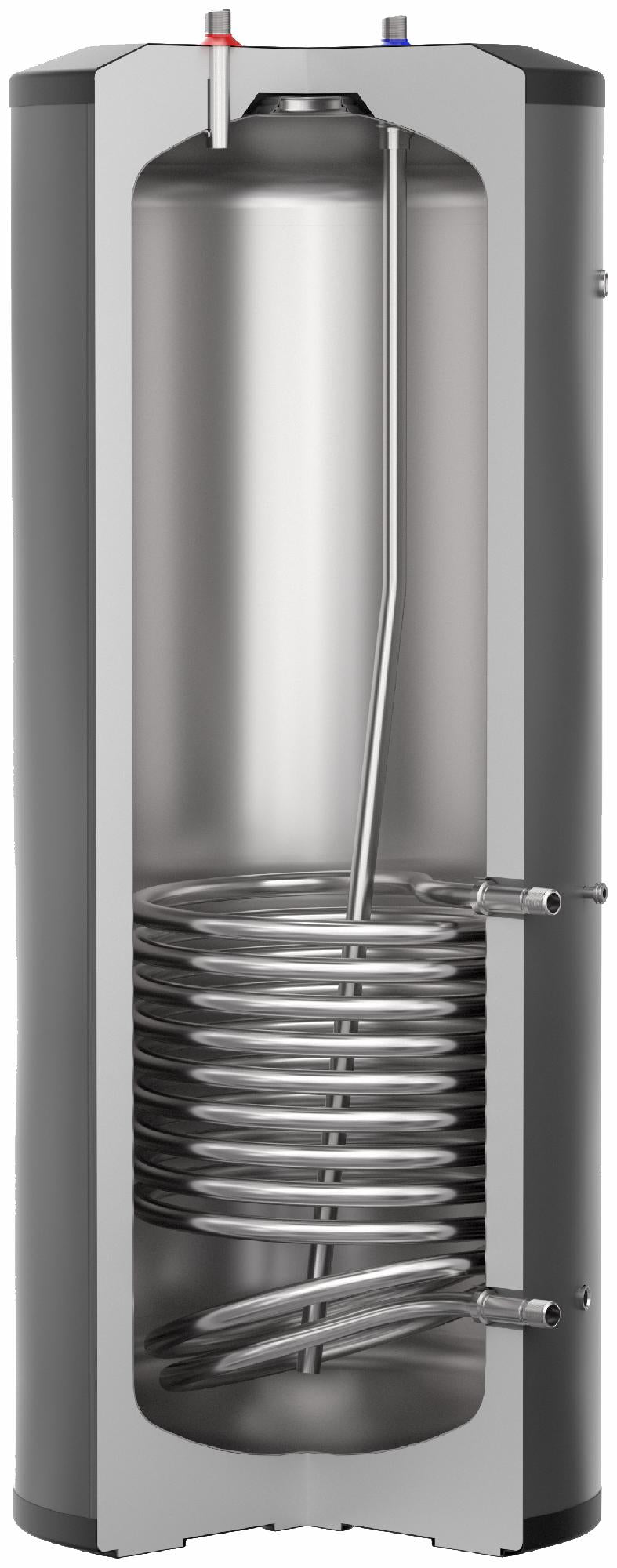

• High capacity smooth wall stainless steel coil

Product Highlights

This indirect tank features stainless steel construction, a smooth wall coil, and easy installation.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: 034-009T

Technical Specifications

• MPN: 034-009
• Manufacturer: IBC Technologies
• Series: Interstor
• Height (Inches): 62.8"
• Diameter: 21.4"
• Gallons: 56.5 Gallon
• Tank Size (Gallons): 56.5
• Heat Exchanger Material: Stainless Steel
• Tank Material: Stainless Steel
• Heat Exchanger Style: Coil
• Number of Heat Exchangers: 1
• Diameter/Width (inches): 21.4
• Boiler Water Connection: 1 Male
• Water Inlet Size: 3/4 Male
• Hot Water Outlet Size: 3/4 Male
• Boiler Connection Location: Side
• Input Water Temperature: 180 degrees
• Domestic Water Temperature: 140 degrees
• First Hour Rating (GPH): 200
• Continuous Flow (GPH): 156
• Relief Valve: No
• Boiler Output Required (BTU): 100000
