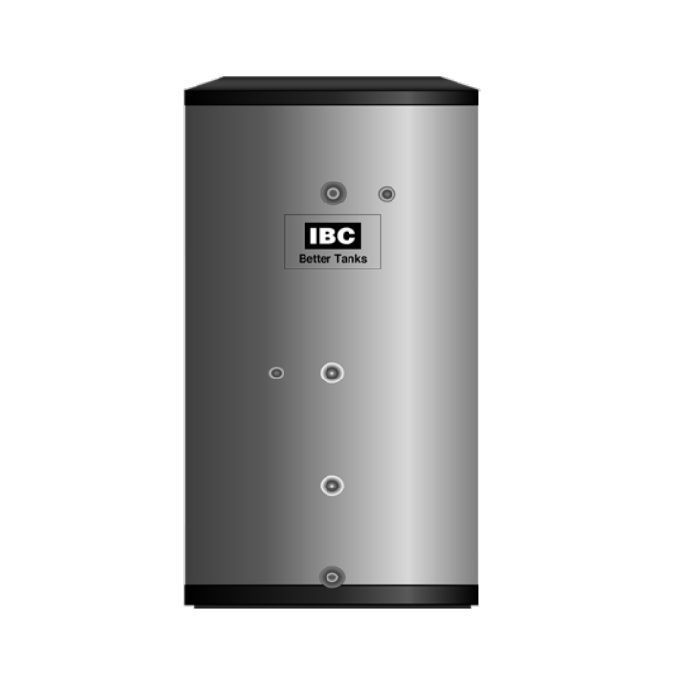

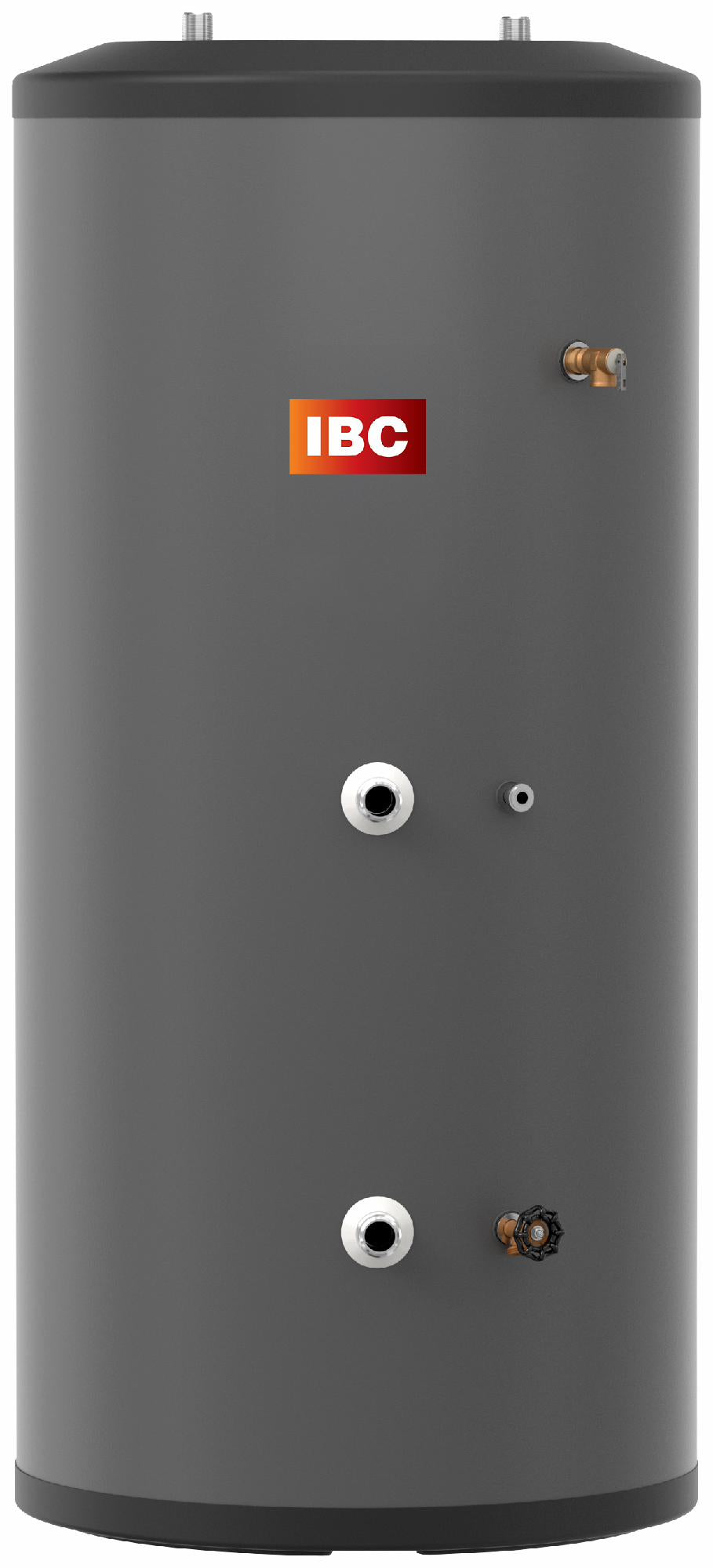

Ibc 034-008T Indirect Tank 21.8X46.9H DTI-40

Product Description

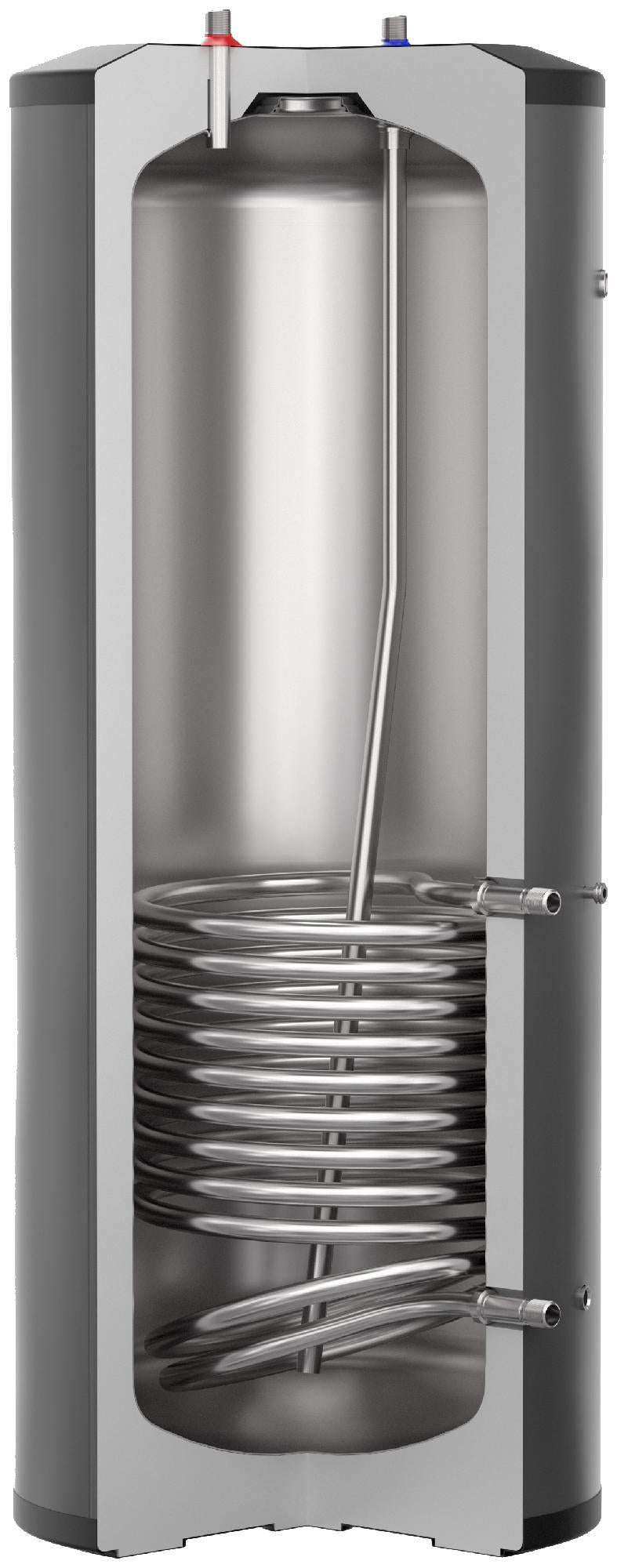

The IBC 034-008T Indirect Tank 21.8X46.9H DTI-40 is an indirect tank. It features a removable inspection port for easy access to the coil and tank and 2 inches of polystyrene foam insulation. The tank has a high capacity smooth wall stainless steel coil and stainless steel tank.

• Removable inspection port for easy access to the coil and tank
• 2 inches of polystyrene foam insulation
• High capacity smooth wall stainless steel coil

Product Highlights

The IBC 034-008T indirect tank features stainless steel construction and a maintenance-free design for domestic hot water.

Product Information

Standard Information

• Brand: IBC
• Manufacturer Part Number: 034-008T

Technical Specifications

• MPN: 034-008
• Manufacturer: IBC Technologies
• Series: Interstor
• Height (Inches): 47"
• Diameter: 21.4"
• Gallons: 39.9 Gallon
• Brand: IBC Boilers
• Tank Size (Gallons): 39.9
• Heat Exchanger Material: Stainless Steel
• Tank Material: Stainless Steel
• Heat Exchanger Style: Coil
• Number of Heat Exchangers: 1
• Height (inches): 47
• Diameter/Width (inches): 21.4
• Boiler Water Connection: 1 Male
• Water Inlet Size: 3/4 Male
• Hot Water Outlet Size: 3/4 Male
• Input Water Temperature: 180 degrees
• Domestic Water Temperature: 140 degrees
• First Hour Rating (GPH): 188
• Continuous Flow (GPH): 156
• Relief Valve: No
• Boiler Output Required (BTU): 100000
