Hydroquip 50-BP1-200-40-C Water Pro BP100 Retro-Fit Spa Control 4.0kW Low-Flow Heater TP200 Panel

Product Description

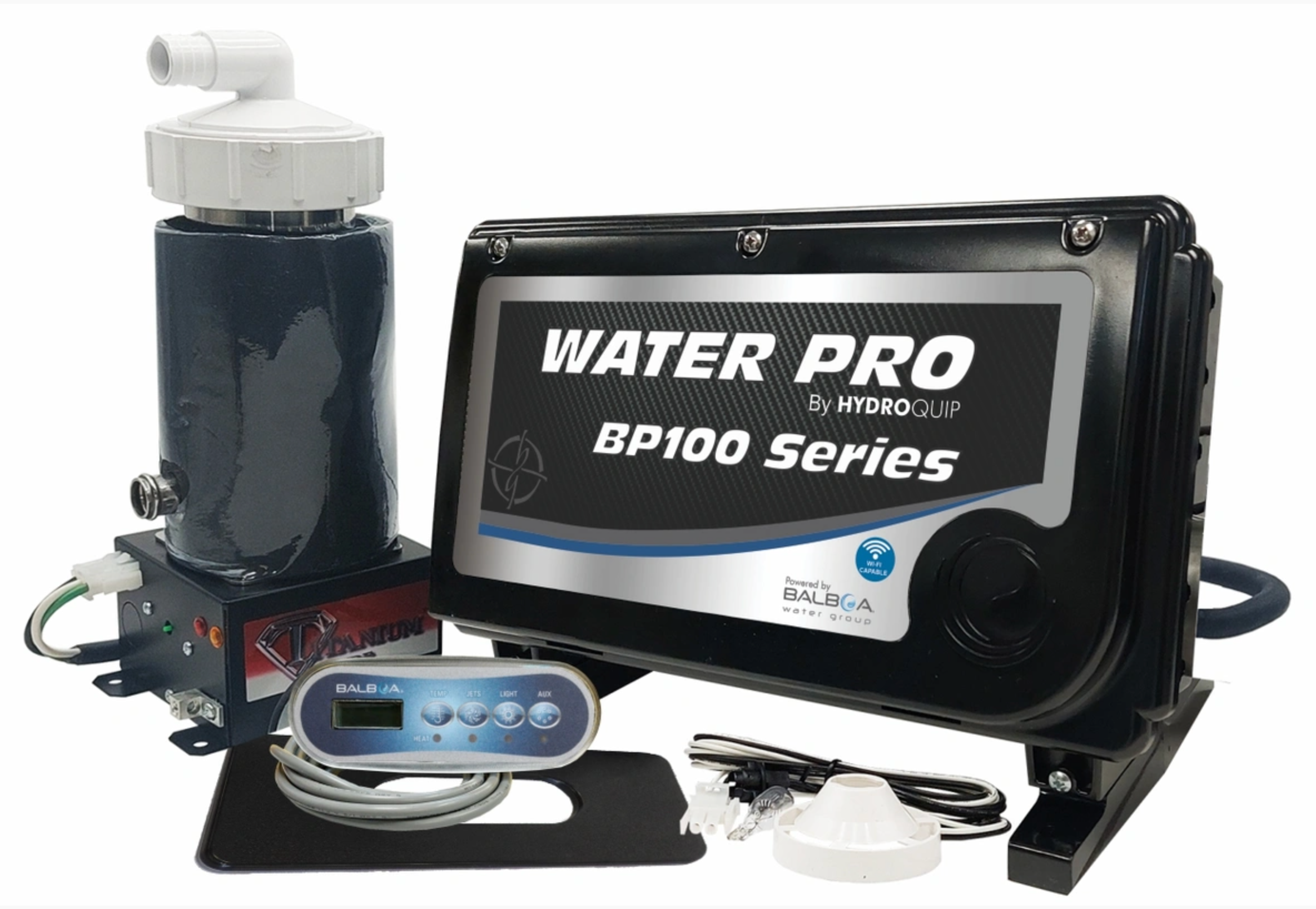

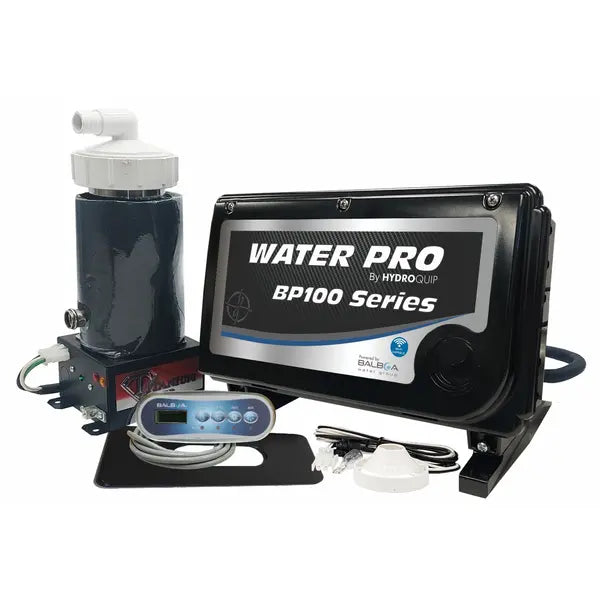

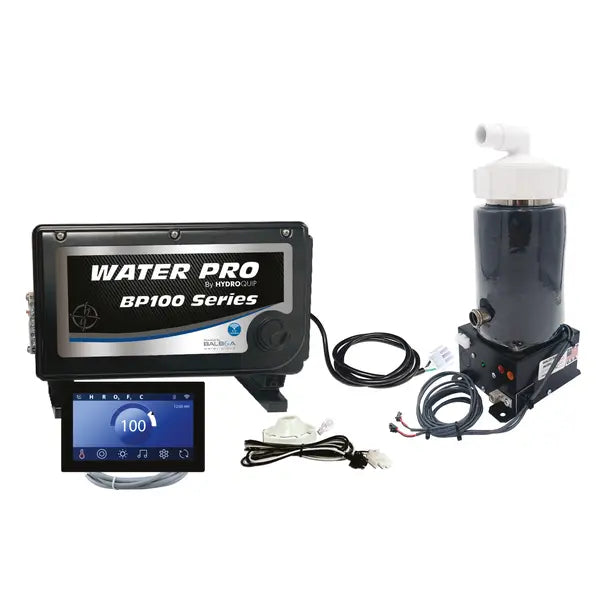

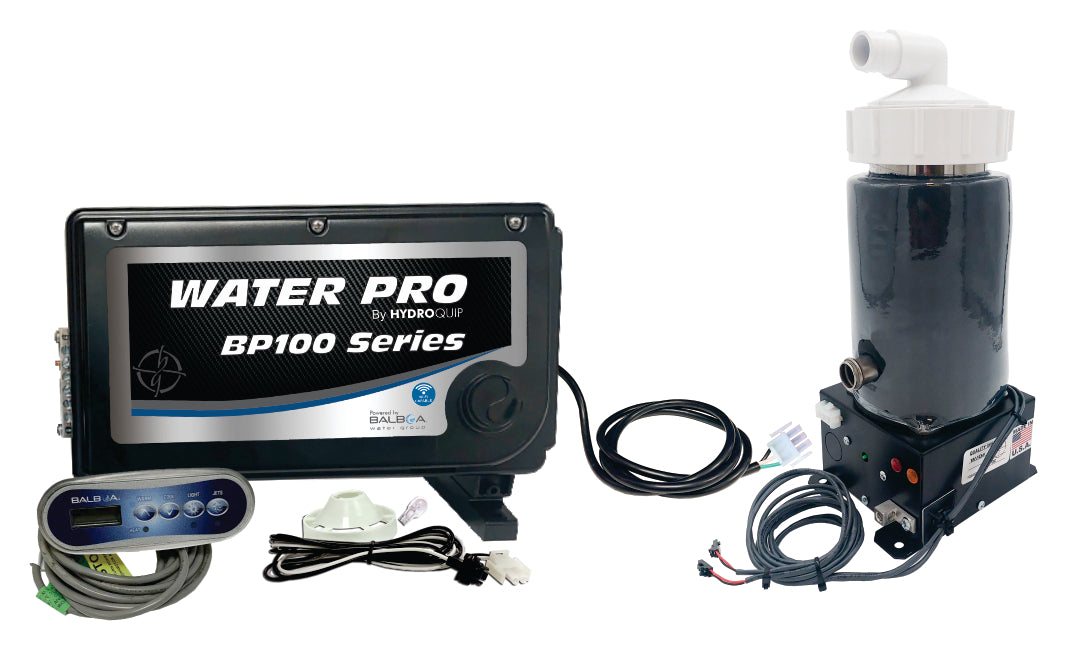

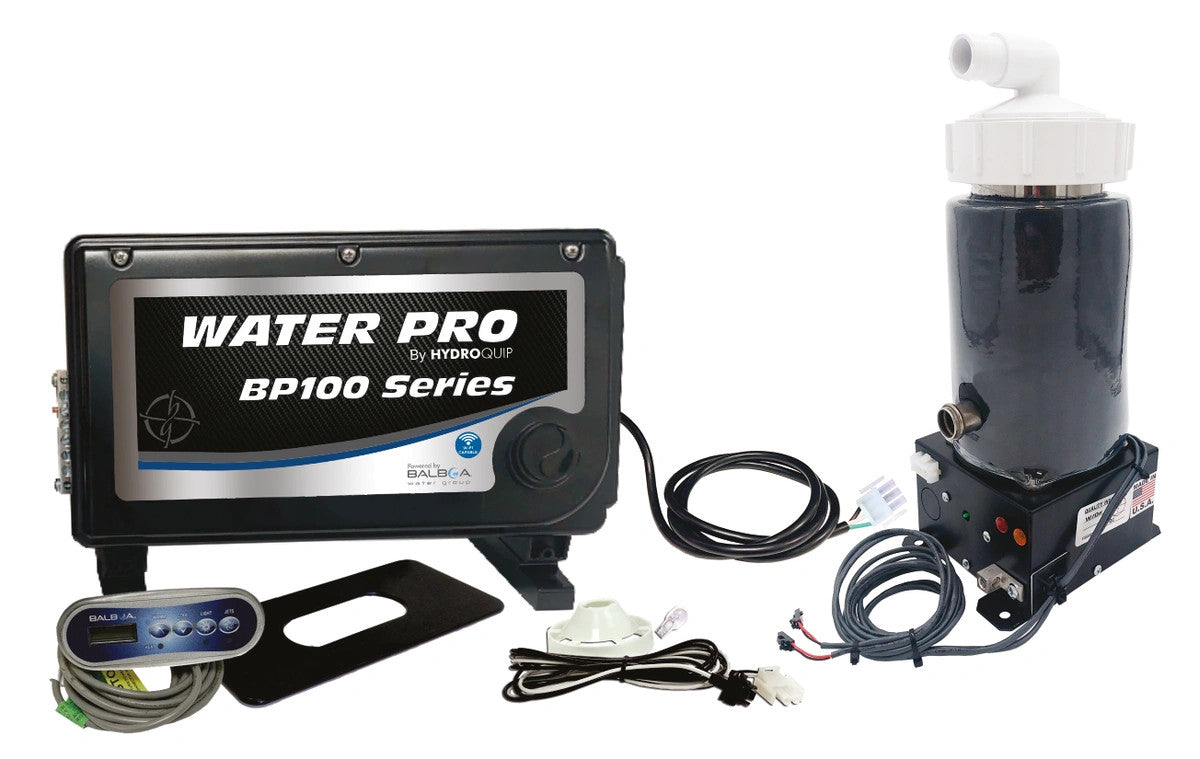

The HYDROQUIP 50-BP1-200-40-C Water Pro BP100 Series retrofit kit features a 4.0kW low-flow canister heater and TP200 topside control. It is equipped with M7 technology and all circuits are convertible to 120 or 240VAC. The system supports Pump1 + Blower or Pump2 and has freeze protection. An installation kit, owner’s manual, and wiring diagram are included.

• Includes 4.0kW low flow canister heater
• Features M7 Technology
• All circuits convertible to 120 or 240VAC

Product Highlights

This kit is easy to install and service, and it's UL Recognized in the US and Canada.

Product Information

Standard Information

• Brand: HYDROQUIP
• Manufacturer Part Number: 50-BP1-200-40-C

Technical Specifications

• Brand: Balboa Water Pro Series By HydroQuip
• Model: Water Pro BP100 Series
• System Supports: Pump1 + Blower or Pump2
• System Voltage: 115/230V
• Heater Version: Low Flow Canister
• Heater Wattage: 4.0kW
• Topside Included?: TP200
• Special Features: Circulation Pump = Supported, Wi-Fi Capable
• Components Supported: Pump1 + Blower or Pump2
• USA and Canada UL Recognized: True
• Pump 1: 120V or 240V, 1 or 2 Speed Pump
• Pump 2: 120V or 240V, 1 or 2 Speed Pump
• Pump 3 or Blower: 120V or 240V, 1 Speed
• Circ Pump Circuit: 120V or 240V, Circulation (Requires 23 GPM)
• Ozone Circuit: 120V or 240V, Controlled By Filter Cycle
• AV Circuit: 120V or 240V, For Stereo/Video
• Light Circuit: 12V LED, Color Rotation
• Temperature Sensor: Heater Mount, Auto Reset
• Overheat Sensor: Heater Mount, Auto Reset
• Wi-Fi Ready: Requires Module 50350
