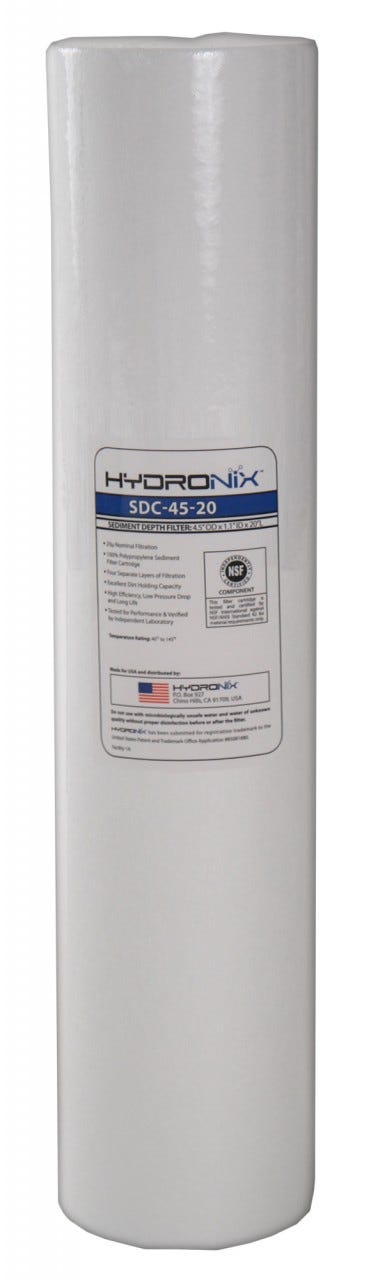

Hydronix SDC-45-2050 Sediment Graded Density Filter Cartridge 4.5 inches x 20 inches Formerly Liquatec SDF-45-2050

Product Description

The Hydronix SDC-45-2050 is a 4.5" x 20" graded-density sediment depth filter cartridge manufactured from 100% pure polypropylene. It features true multi-stage depth filtration integrated into its design. The outside-in flow allows the outer layers to trap larger-sized particles, resulting in a lower pressure drop. Ideal for point-of-use and reverse osmosis applications.

• Manufactured from 100% Pure Polypropylene
• Graded density for higher dirt holding capacity
• 50 Micron Nominal Filtration

Product Highlights

This filter cartridge has a 50 micron nominal filtration and is NSF Standard 42 Component Certified.

Product Information

Standard Information

• Brand: Hydronix
• Manufacturer Part Number: SDC-45-2050

Technical Specifications

• Diameter: 4.5"
• Length: 20"
• Initial Flow Rate: 1 psi @ 20 GPM
• Micron Rating: 50 micron
• Maximum Operating Temperature: 145°F (63°C)
• Maximum Pressure Drop: 46.4 psi (3.2 kg/cm2) at 69°F (20°C)
• Recommended replaceable pressure drop: 21.75 PSI (1.5kg/cm2)
• Operating Temperature: 40 Degrees F to 145 Degrees F
• Materials of construction: 100% Polypropylene
• Inside diameter: 1.1”
• Temperature range: 40 °F to 145 °F (4.4 °C to 62.8 °C)
• Maximum flow: 2-8 gpm (Depending on micron rating)
• PSI change at flow rate: 1 psi @ 20 gpm
• Part #: 14815567
