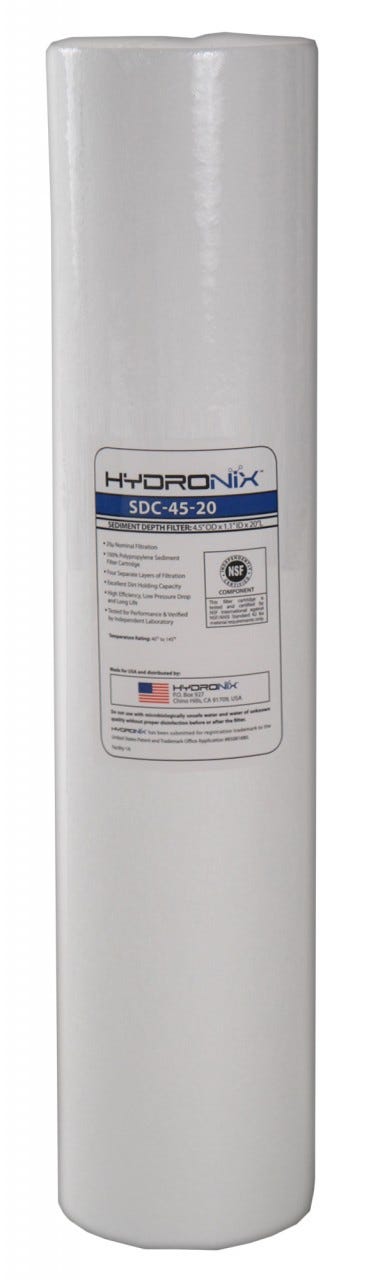

Hydronix SDC-45-2005 sediment water filter 5 micron (2 pack)

Product Description

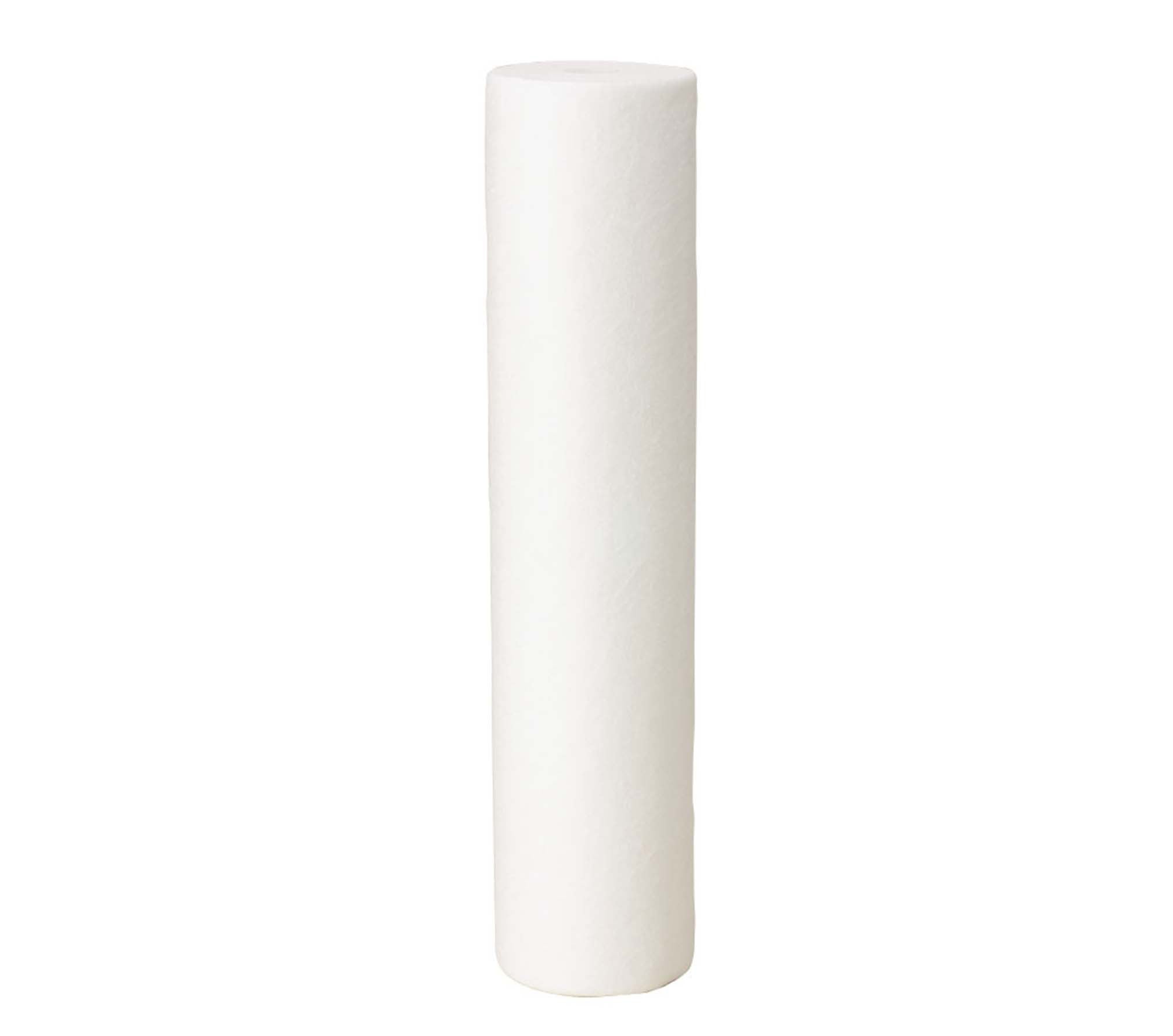

The Hydronix SDC-45-2005 polypropylene sediment filters have a particle retention size of 5 microns and are used in residential and commercial water filtration system applications. The coreless filter design has an outside diameter (OD) of 4.5" and an overall length of 20". Made of 100% pure polypropylene, the cartridge has structural stability and is resistant to most chemicals.

• Features a particle retention size of 5 microns.
• Designed with a coreless filter.
• Certified by the ANSI/NSF Standard 42 for material and structural safety.

Product Highlights

This sediment filter is suitable for use in filtration systems such as ice machines, film processing, beverages, coffee, analytical, and wineries.

Product Information

Standard Information

• Brand: Hydronix
• Manufacturer Part Number: SDC-45-2005
• Country of Origin: Taiwan

Technical Specifications

• Brand: Hydronix
• Micron Rating: 5 μm
• Filter Length: 20"
• Outside Diameter: 4.5"
• Material: 100% pure polypropylene
• Application: Residential and commercial water filtration systems
• Filter Series: SDC
• Type: Sediment - Spun
• Size: 4 1/2 x 20 Inches (114 x 508 mm)
• Pressure Loss: 1 psi @ 20.0 GPM
• Validation: NSF42
• Made in: Taiwan
• Maximum Operating Temperature: 145 °F (63°C )
• Maximum Pressure Drop: 69 °F (20°C) 46.4 psi (3.2 kg/cm2)
• Temperature range: 40 °F to 145 °F (4.4 °C to 62.8 °C)
• Maximum flow: 2-8 gpm (Depending on micron rating)
• External Testing Certification: ANSI, NSF
• Operating Temperature: 40 Degrees F to 145 Degrees F
• Initial Flow Rate: 1 psi @ 20 GPM
