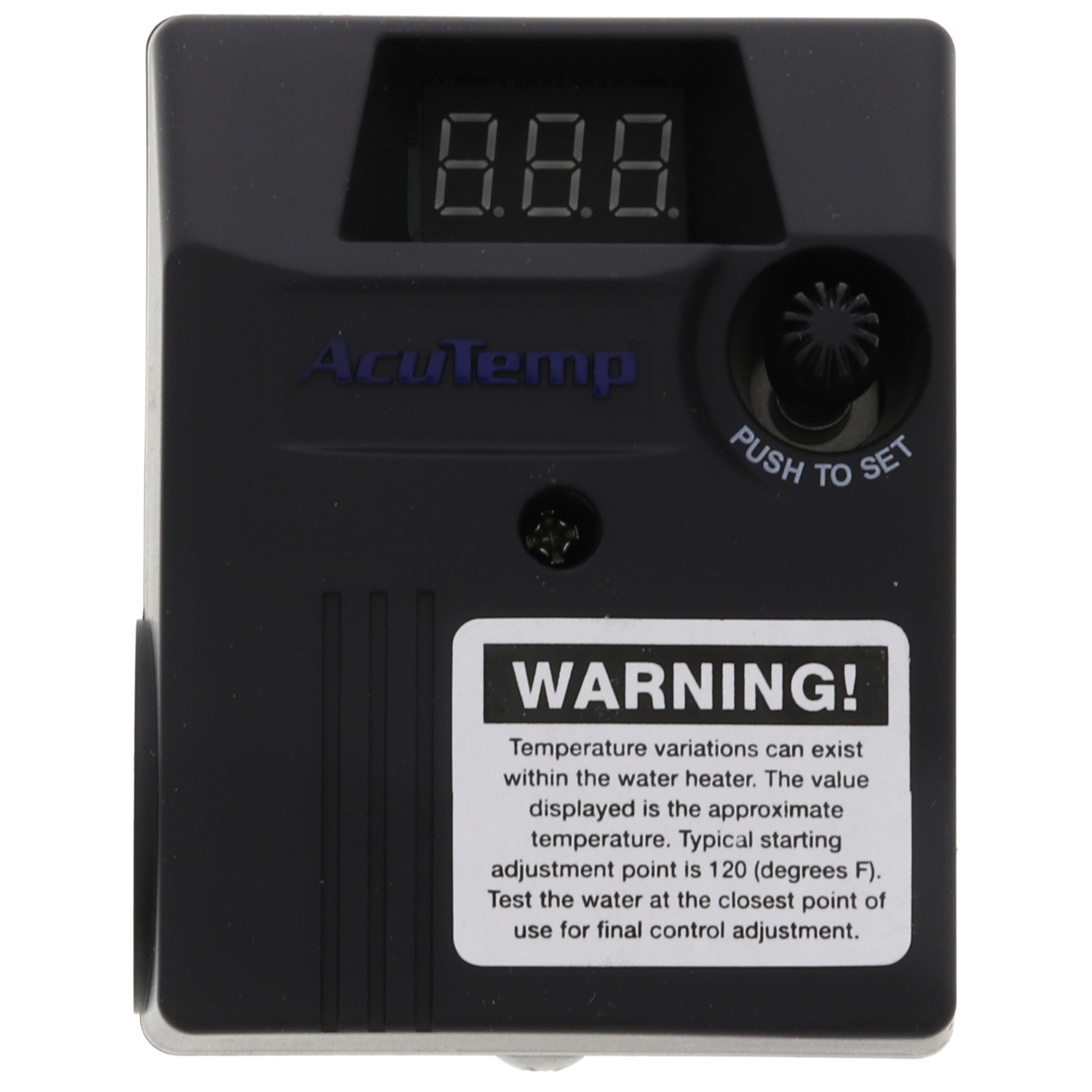

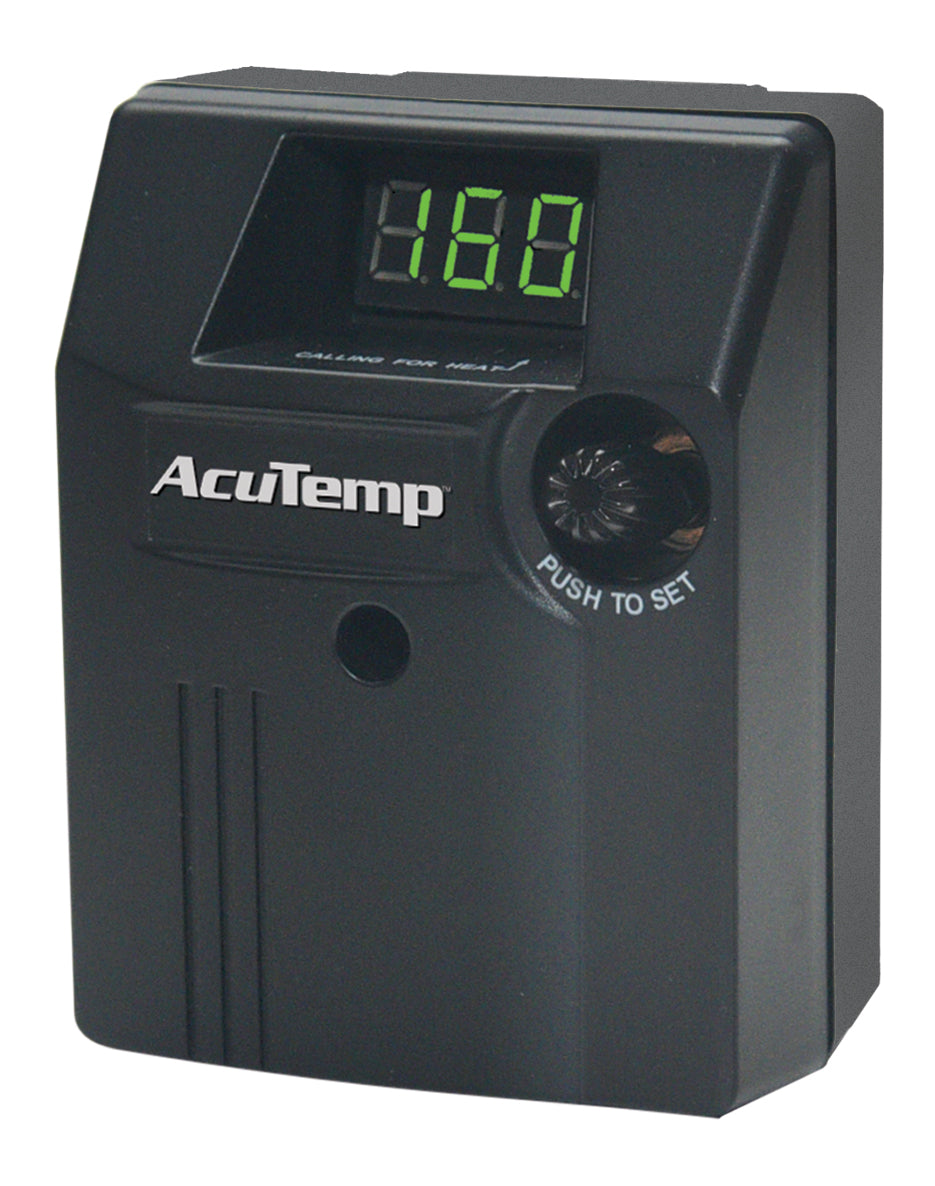

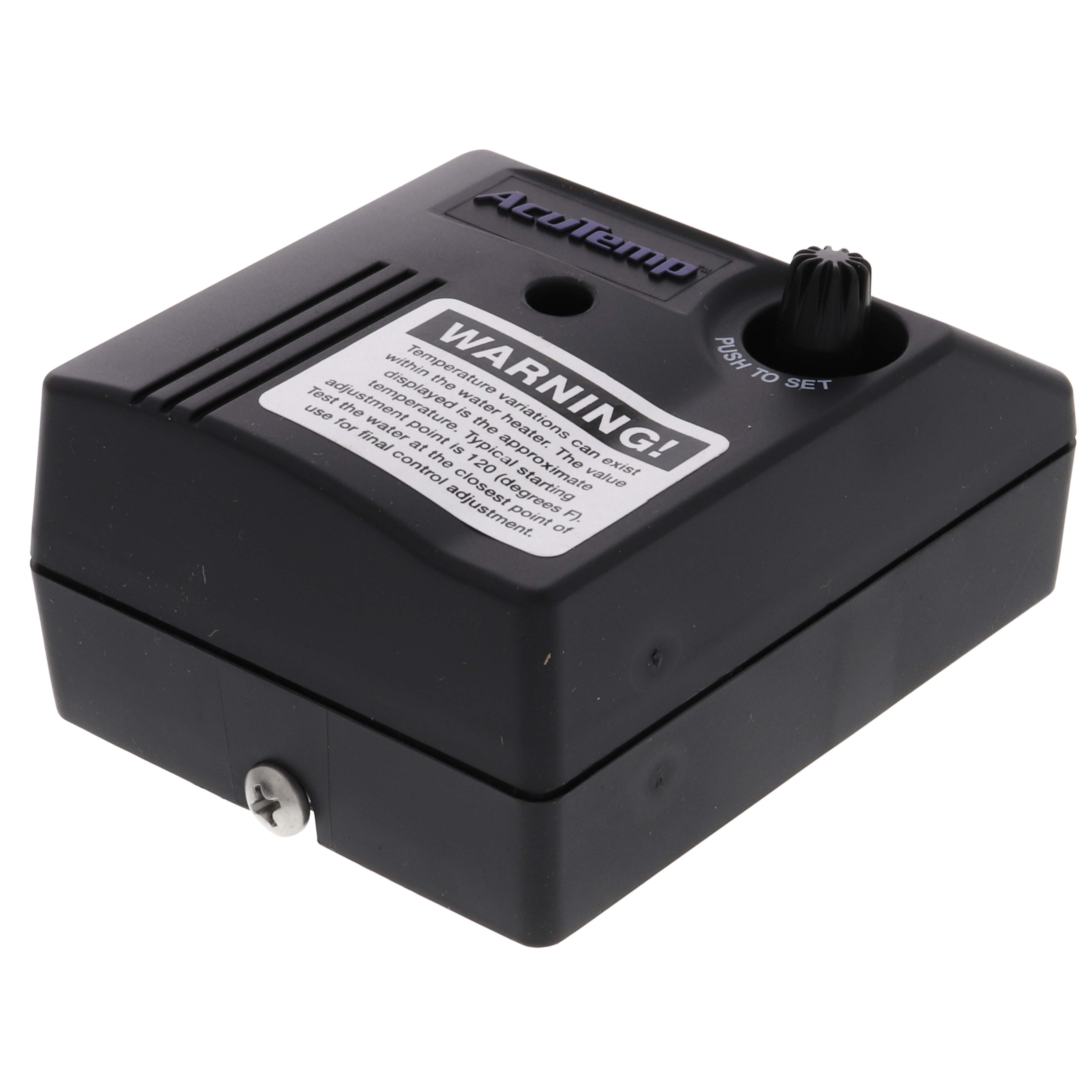

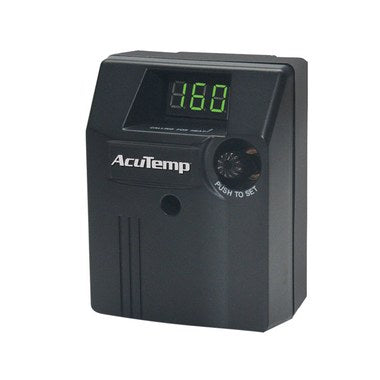

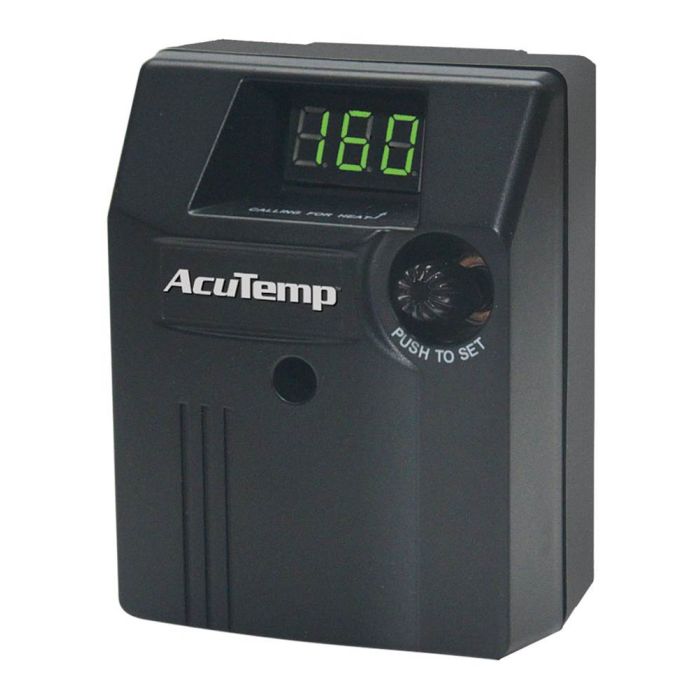

Hydrolevel 46-2000 Acu-Temp Temperature Control

Product Description

The HYDROLEVEL 46-2000 AcuTemp controls water temperature using a microcontroller-based design. It monitors tank temperature changes and controls the heating source to minimize fluctuations while optimizing fuel efficiency. Features adjustable temperature settings for residential and commercial use, an easy-to-read LCD display, and an intuitive push-to-set dial.

• Controls water temperature
• Microcontroller-based design
• Monitors tank temperature changes
• Optimizes fuel efficiency

Product Highlights

The AcuTemp temperature control is designed to control water temperature in indirect water heaters. It includes two 90'' sensors (1 with 3/8'' head; 1 with 1/4'' head).

Product Information

Standard Information

• Brand: HYDROLEVEL
• Manufacturer Part Number: 46-2000

Technical Specifications

• Ambient Temperature [Features]: 30 to 140 F
• Ambient Temperature: 30 to 140 F
• MPN: 46-2000
• Input: 24 VAC, 60 Hz
• Power: 2.4 VA
• Output: Dry contacts, 50 VA @ 24 VAC, 60Hz
• Operating Range High Limit Model 2000 (Residential Setting): 60 F 160 F default
• Operating Range High Limit Model 2000 (Commercial Setting): 60 F 180 F
• Operating Range High Limit Other Models: 60 F to the number specified in the suffix of the model number. (ex Model 2000-135 has an operating temp range of 60 F 135 F)
• Differentials: Automatically controlled 5 F 10 F2
