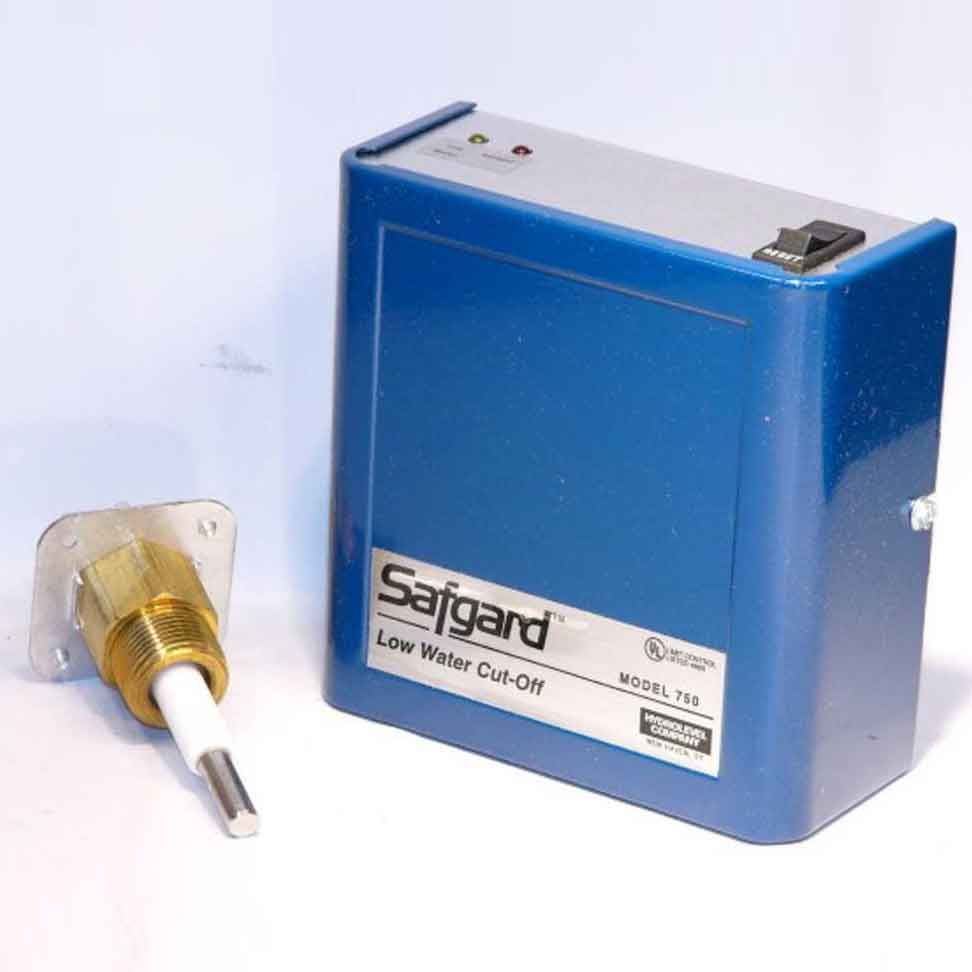

Hydrolevel 45-750 Safgard Low Water Cut Off with Manual Reset 120V

Product Description

The Hydrolevel Safgard 750, with MPN 45-750, is a low water cut off designed for hot water boilers. It operates at 120 volts and includes a manual reset feature. This device interrupts power immediately in a low water condition to prevent boiler damage.

• Application: Hot Water Boilers
• Max Pressure: 160 PSI
• Manual Reset

Product Highlights

This low water cut off is ideal for maintaining the safety and efficiency of your hot water boiler system. It automatically shuts off the burner in low water conditions and boasts a heavy-duty electro-mechanical design for longevity. Its manual reset feature ensures it does not lock out during power failures, and there's no maintenance needed due to its lack of moving parts.

Product Information

Standard Information

• Brand: Hydrolevel
• Model: 750
• MPN: 45-750

Technical Specifications

• Application: Hot Water Boilers
• Voltage: 120V
• Enclosure: NEMA 1
• Max Water Temp: 250°F
• Connection Size: 3/4
• Ohms Sensitivity: 15,000 ohm
• Max Ambient Temp: Room
• Control Connection: NPT
• Max Water Pressure: 160 PSI
• Weight: 2.83 lbs
• Max Steam Pressure: N/A
• Control Reset: Manual
