Product Description

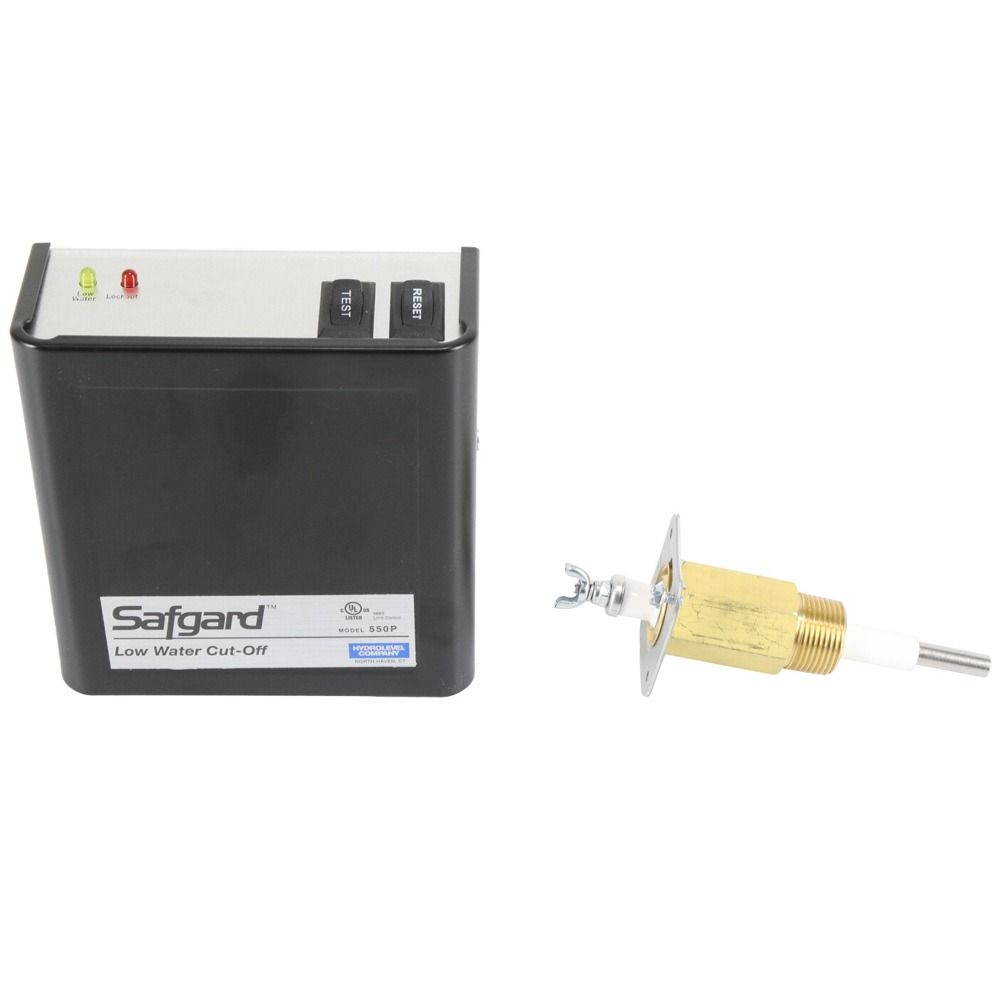

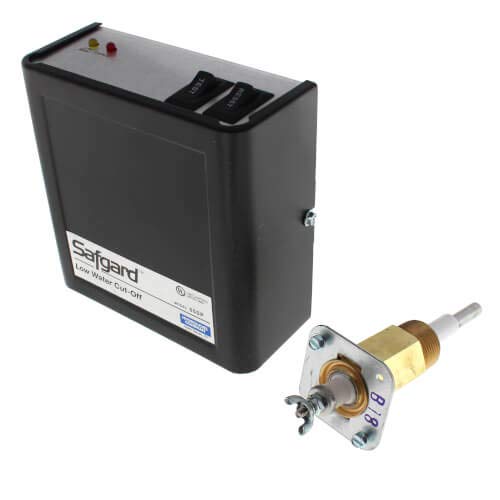

The Hydrolevel Safgard Low Water Cut-Off, model 45-553, is designed to automatically shut off the burner when the water level is low. This feature helps prevent boiler damage. This unit operates at 120 volts and is suitable for hot water boilers.
- Application: Hot Water Boilers
- Voltage: 120V
- Switch Type: SPDT
Product Highlights
This cut-off switch includes a manual reset feature for convenience. It also features a test button for checking the burner circuit functionality without changing the water level.
Product Information
Standard Information
-
Brand: Hydrolevel
-
MPN: 45-553
Technical Specifications
-
Control Connection: NPT
-
Max Water Pressure: 160 psi
-
Max Water Temperature: 250°F
-
Max Ambient Temperature: Room
-
Installation Method: Direct to Boiler Tappings
-
Control Reset: Manual
-
Ohms Sensitivity: 15,000 ohm
-
Weight: 2.72 lbs
