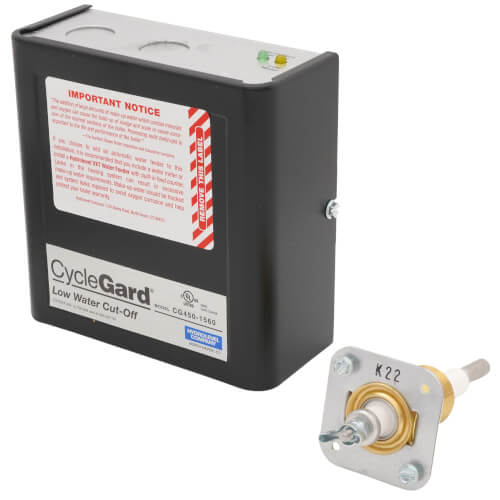

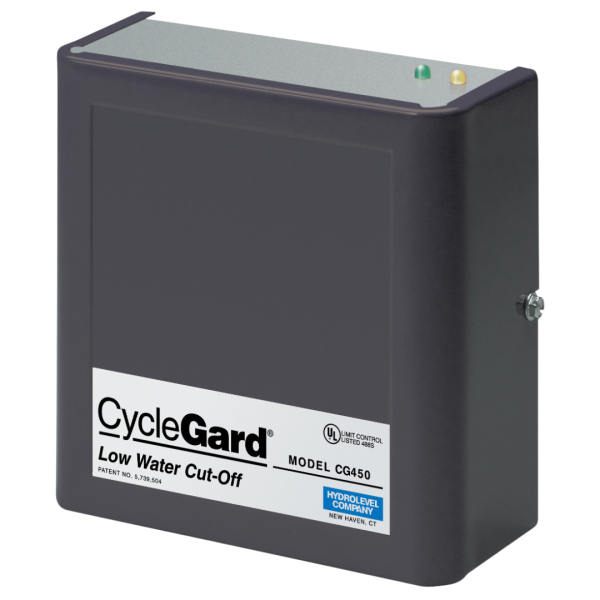

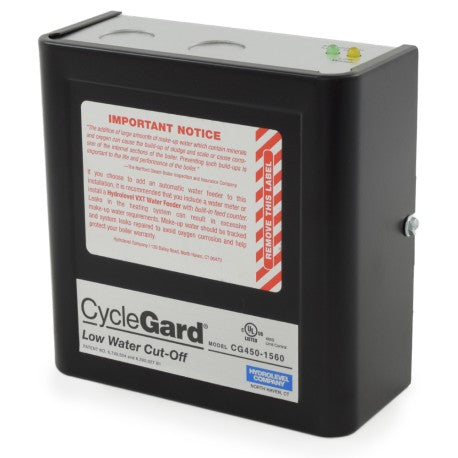

HYDROLEVEL 45-460 Cyclegard CG450-1560 Low Water Cutoff 120V

Product Description

The HYDROLEVEL 45-460 Cyclegard CG450-1560 is a low water cutoff designed for steam boilers operating at 120V. This unit includes a fifteen-minute intermittent level test feature, which provides essential safety measures for foaming boilers. It also has a fifteen-second burner off delay followed by a thirty-second burner on delay. Additionally, the system includes an automatic reset function and a low water indicating light for enhanced monitoring.

• Intermittent level test ensures maximum protection for steam boilers.
• Includes a fifteen-second burner off delay and a thirty-second burner on delay.
• Designed for direct mounting to the boiler to eliminate the need for blowdowns.

Product Highlights

This device is crucial for maintaining safe operation and reliability in steam boiler systems.

Product Information

Standard Information

• Type: Electronic Low Water Cutoff
• Switch Type: SPDT

Technical Specifications

• Application: Steam Boilers
• Max Pressure (PSI): 15 (Steam)
• Voltage: 120V
• Power Consumption: 4.2 VA
• Reset Type: Automatic
• Electrical Ratings (ALR): 34.8 A @ 120 VAC (N.C)
• Electrical Ratings (AFL): 5.8 A @ 120 VAC (N.C)
• Switching Capacity: 5.8 FLA, 34.8 LRA
• Connection: 3/4 inch NPT
• Max Steam Pressure: 15 psi
• Brand: Hydrolevel/Safeguard
• Collection: Low Water Safety
• Part Number: CG450
