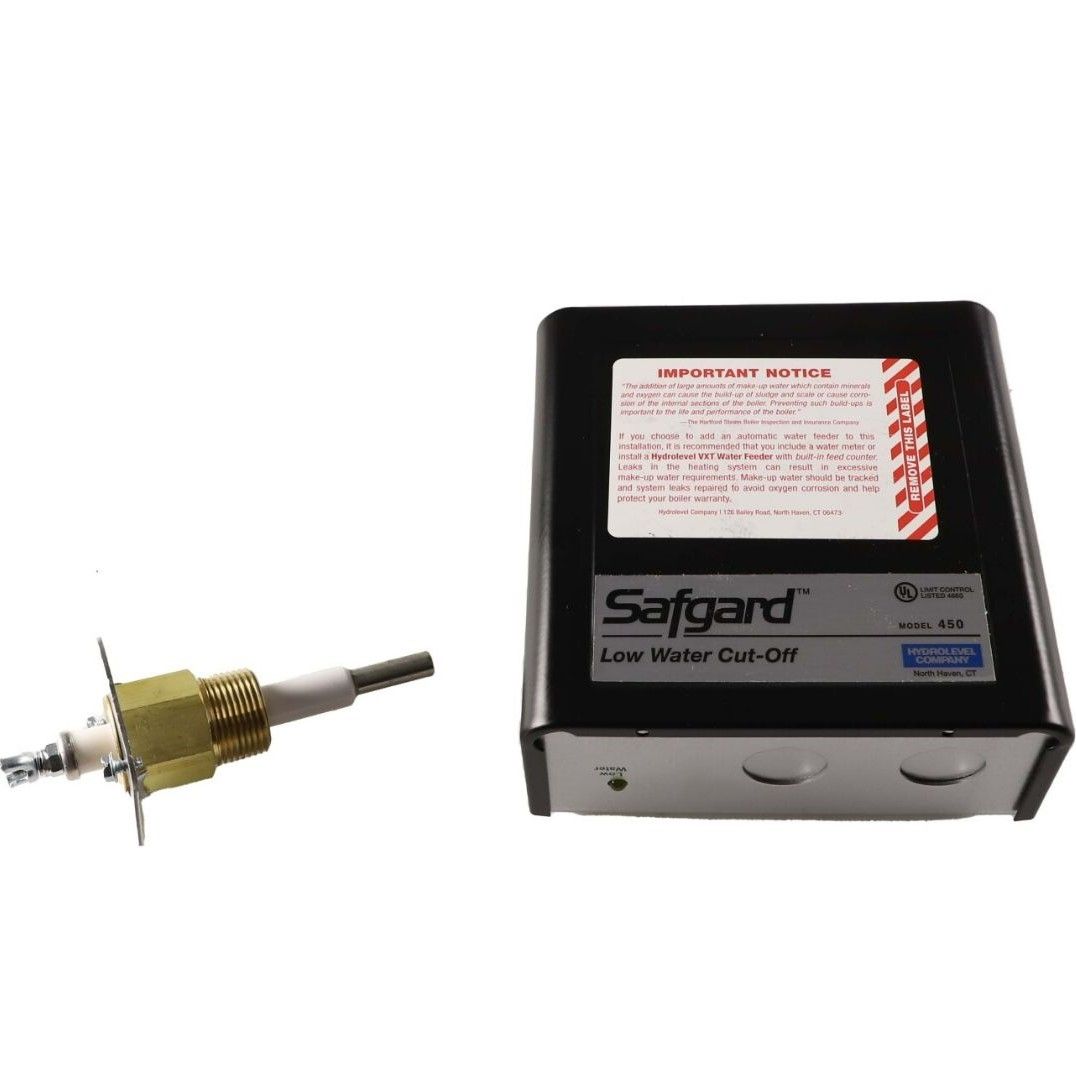

Hydrolevel 45-450 Safgard Model 450 Low Water Cut-Off Auto Reset 120V

Product Description

The Hydrolevel 45-450 Safgard Model 450 is a high-performance low water cut-off for steam boilers, designed to ensure maximum safety and efficiency. The control unit, featuring an automatic reset and operational delays, avoids short cycling and enhances reliability of your boiler systems.

• 120V operation with automatic reset and 15-second burner off delay.
• Incorporates a 30-second burner on delay for improved system stability.
• Features a low water indicating light and direct boiler connection.

Product Highlights

This device provides critical safety measures for steam boilers by monitoring water levels, preventing potential dry fire conditions. It is equipped with a 3/4 inch NPT connection and operates within a temperature range up to 250 degrees Fahrenheit.

Product Information

Standard Information

• Application: Steam Boilers
• Brand: Hydrolevel
• Model: 450
• MPN: 45-450

Technical Specifications

• Voltage: 120V
• Weight: 3.00 pounds
• Max Water Temp: 250 degrees Fahrenheit
• Max Steam Pressure: 15 psi
• Control Connection: NPT
• Enclosure: NEMA 1
• Installation Method: Direct to Boiler Tappings
• Ohms Sensitivity: 15,000 ohm
