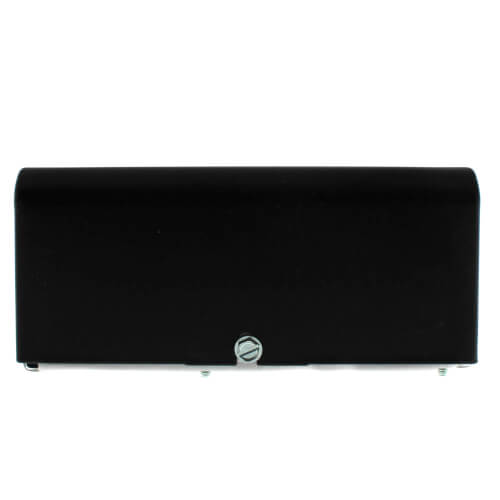

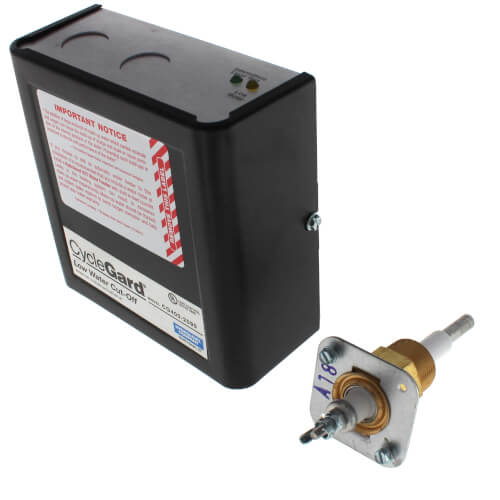

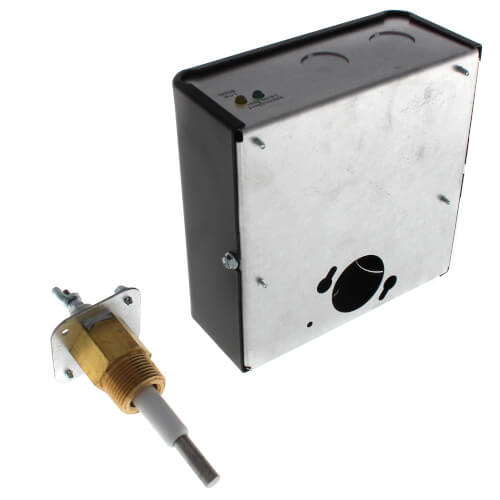

Hydrolevel 45-410-2090 CycleGard CG400-2090 Low Water Cutoff - 24V

Product Description

The Hydrolevel 45-410-2090 CycleGard CG400-2090 is a low water cutoff device designed for steam boilers operating at 24 volts. It features an intermittent level test for reliable operation and maximum protection against foaming conditions. With a fifteen second burner off delay and a thirty second burner on delay, this unit prevents short cycling and ensures stable boiler operation.

• Includes a three-fourths inch probe for direct boiler mounting.
• Automatic reset function restores operation once water levels rise above the probe.
• Intermittent Level Test ensures safety by cutting power to the burner at regular intervals.

Product Highlights

This low water cutoff device is essential for monitoring water levels and protecting steam boilers from damage due to low water conditions.

Product Information

Standard Information

• Type: Electronic
• Replacement Parts: 45-214

Technical Specifications

• Voltage: 24v
• Power Consumption: 2.1 VA
• Max Pressure: 15 PSI (Steam)
• Weight: 2.645 lbs
• Shipping Dimensions: 6.95 x 6.1 x 5.35 inches
