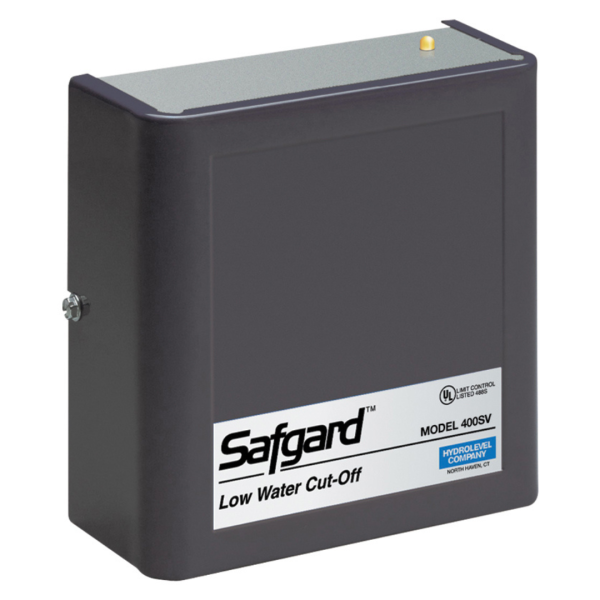

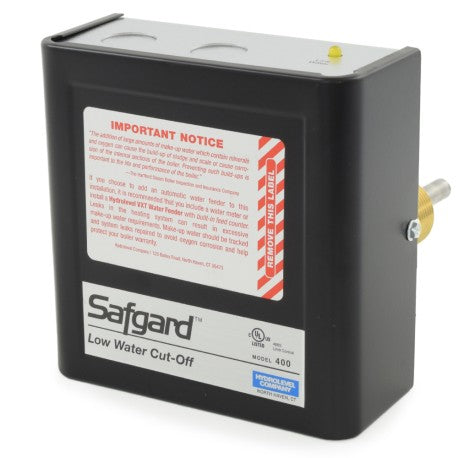

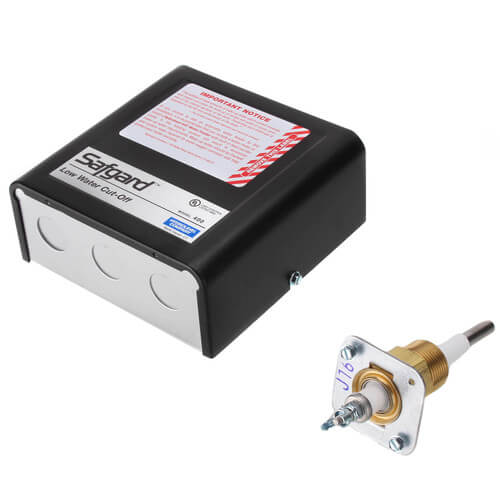

HYDROLEVEL 45-400 Safgard 400 Non-Cycling Steam Primary Low Water Cutoff - 24V

Product Description

The HYDROLEVEL 45-400 Safgard 400 is a low water cut-off device designed specifically for steam boilers. Operating at 24V, this non-cycling cut-off effectively monitors water levels to prevent boiler damage.

• Reliable electronic operation
• Easy installation
• Minimal maintenance required

Product Highlights

This device includes a fifteen-second burner off delay and a thirty-second burner on delay, ensuring automatic reset functionality and a clear low water indication light.

Product Information

Standard Information

• Application: Steam Boilers
• Switch Type: SPDT

Technical Specifications

• Max Pressure: 15 PSI
• Type: Electronic
• Reset Type: Automatic
• Voltage: 24V
• Power Consumption: 2 VA
• Burner Off Delay: 15 Second
• Burner On Delay: 30 Second
• Aux Switch Ratings: 50 VA pilot duty @ 24 V
• Connection: 3/4 inch NPT
