Hydrolevel 45-170 Safgard 170 Low Water Cutoff 120V (Replacement 45-214)

Product Description

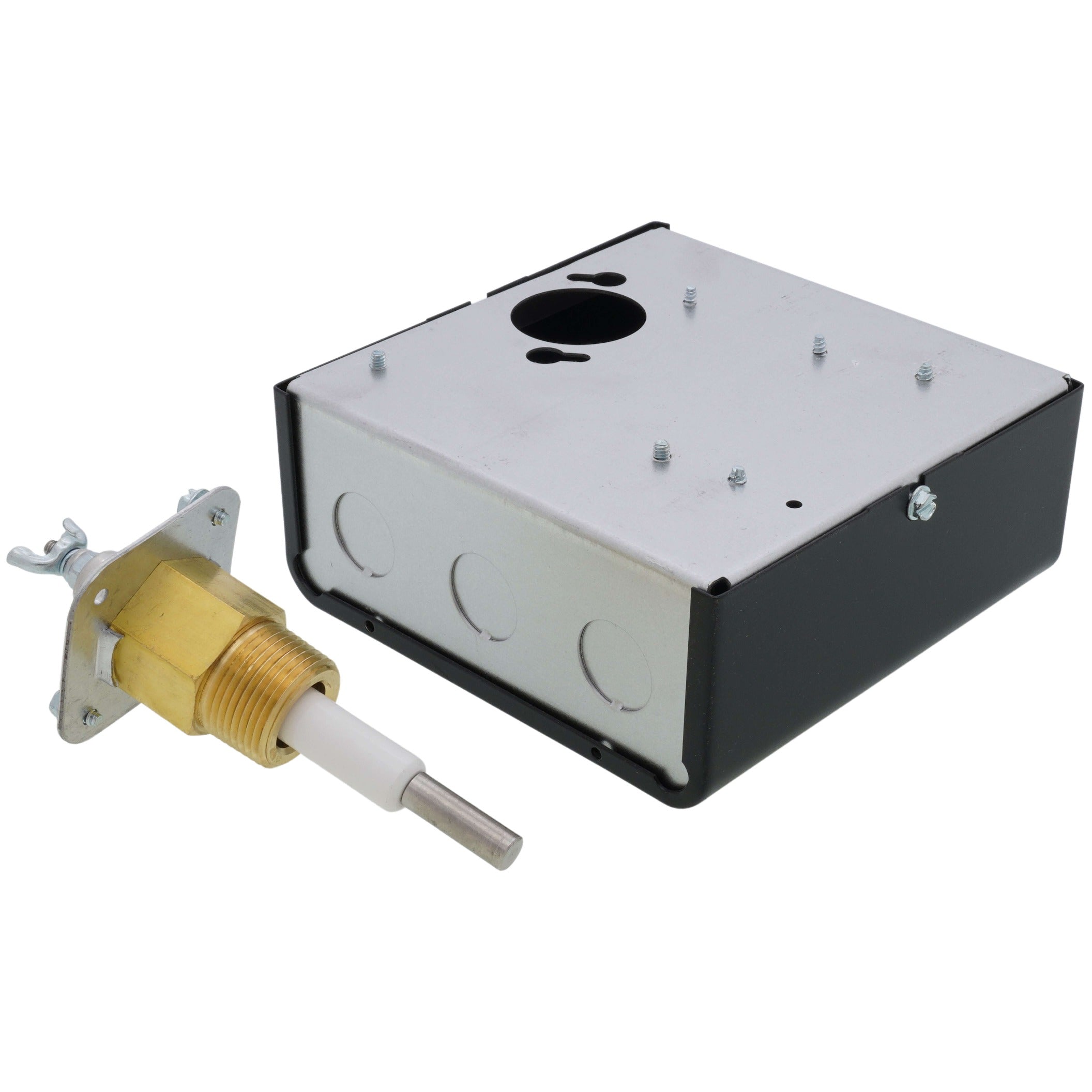

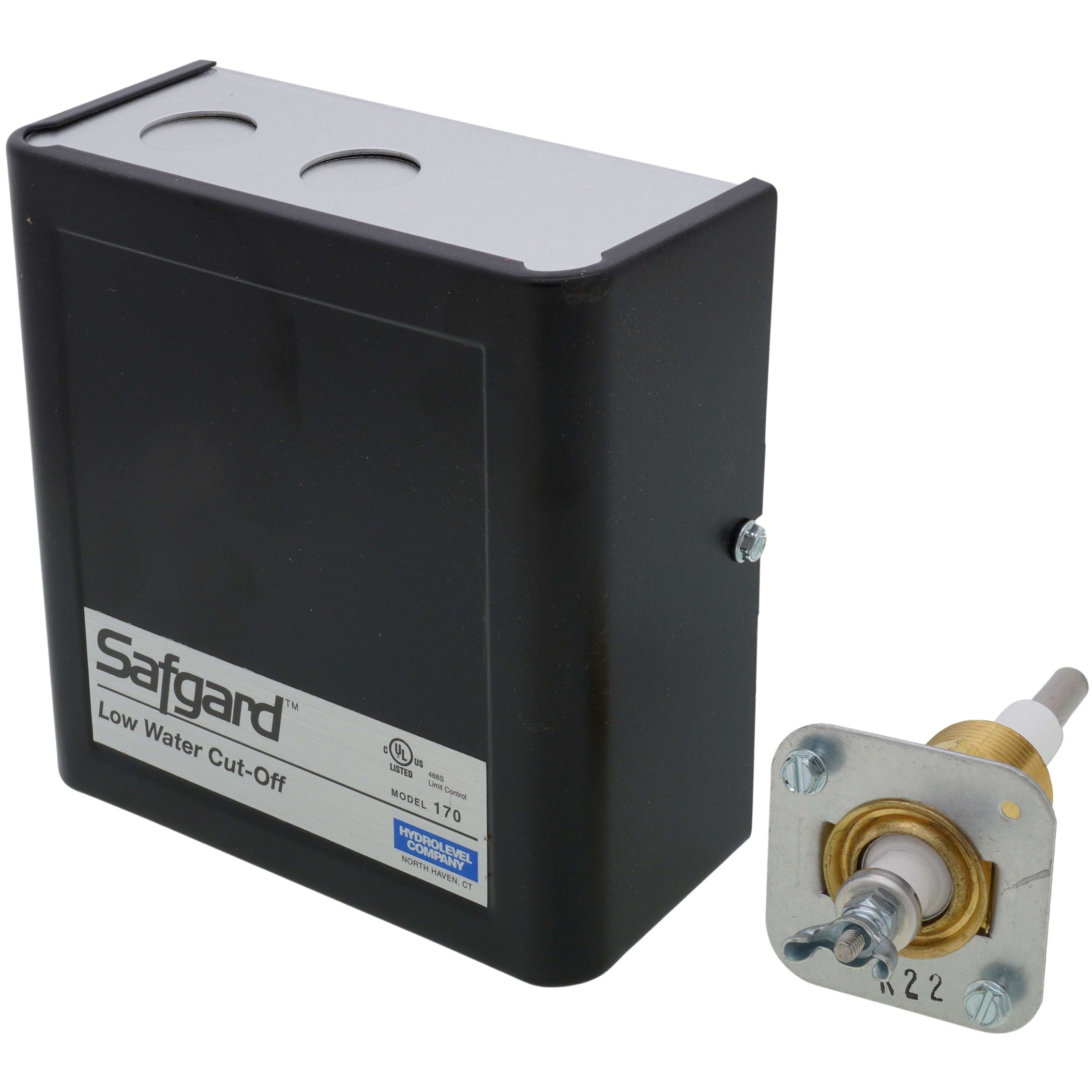

Hydrolevel 45-170 Safgard 170 is an electrically operated low water cutoff with automatic reset for 120V boiler systems. A probe installed in the boiler shell completes a circuit when contacted by water; if water drops below the probe the circuit opens and de-energizes the burner circuit to protect the boiler. The control provides SPDT contacts, alarm contact provisions, 7 VA power consumption, switching capacity of 5.8 FLA and 34.8 LRA, and a 160 psi pressure rating.

• Automatic reset low water cutoff for hot water boilers; probe-based sensing completes or opens the control circuit
• Electrical rating 120 VAC, 60 Hz; power consumption 7 VA; SPDT switch with 5.8 FLA and 34.8 LRA switching capacity
• Rated to 160 psi; includes alarm contact provisions and NEMA 1 enclosure for heavy-duty electromechanical applications

Product Highlights

Electrically operated low water cutoff with automatic reset, SPDT contacts, 120 VAC, 160 psi rating

Product Information

Standard Information

• Brand: HYDROLEVEL
• Manufacturer Part Number: 45-170
• Country of Origin: United States
