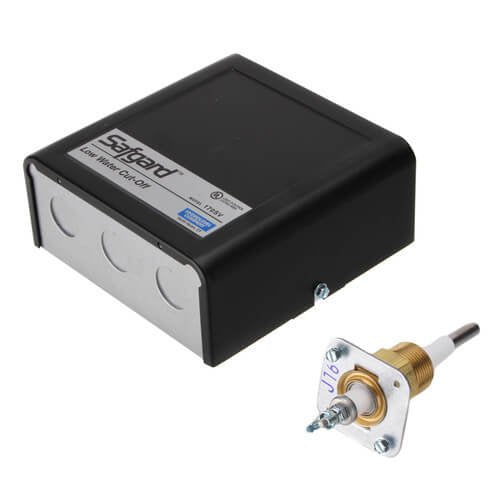

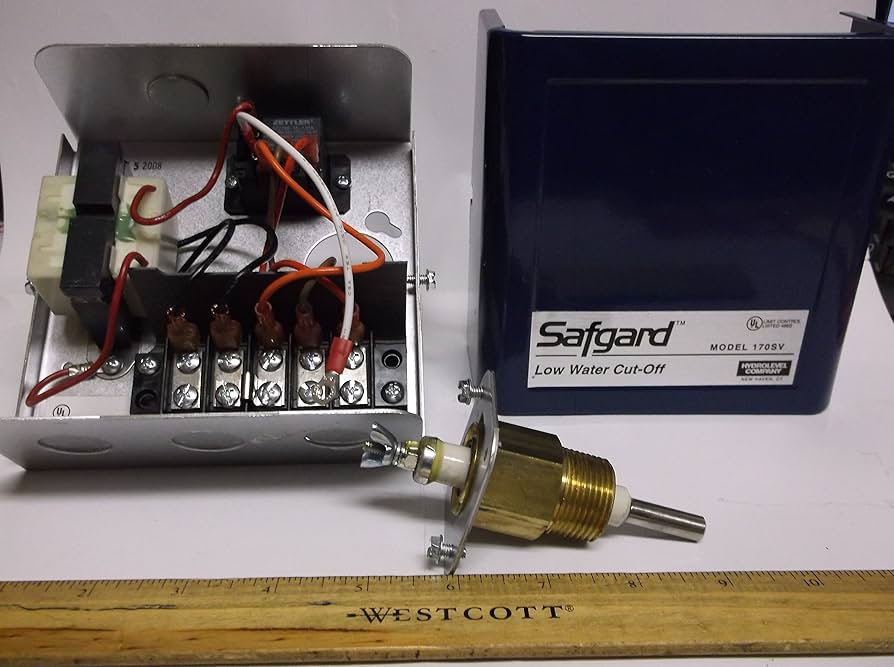

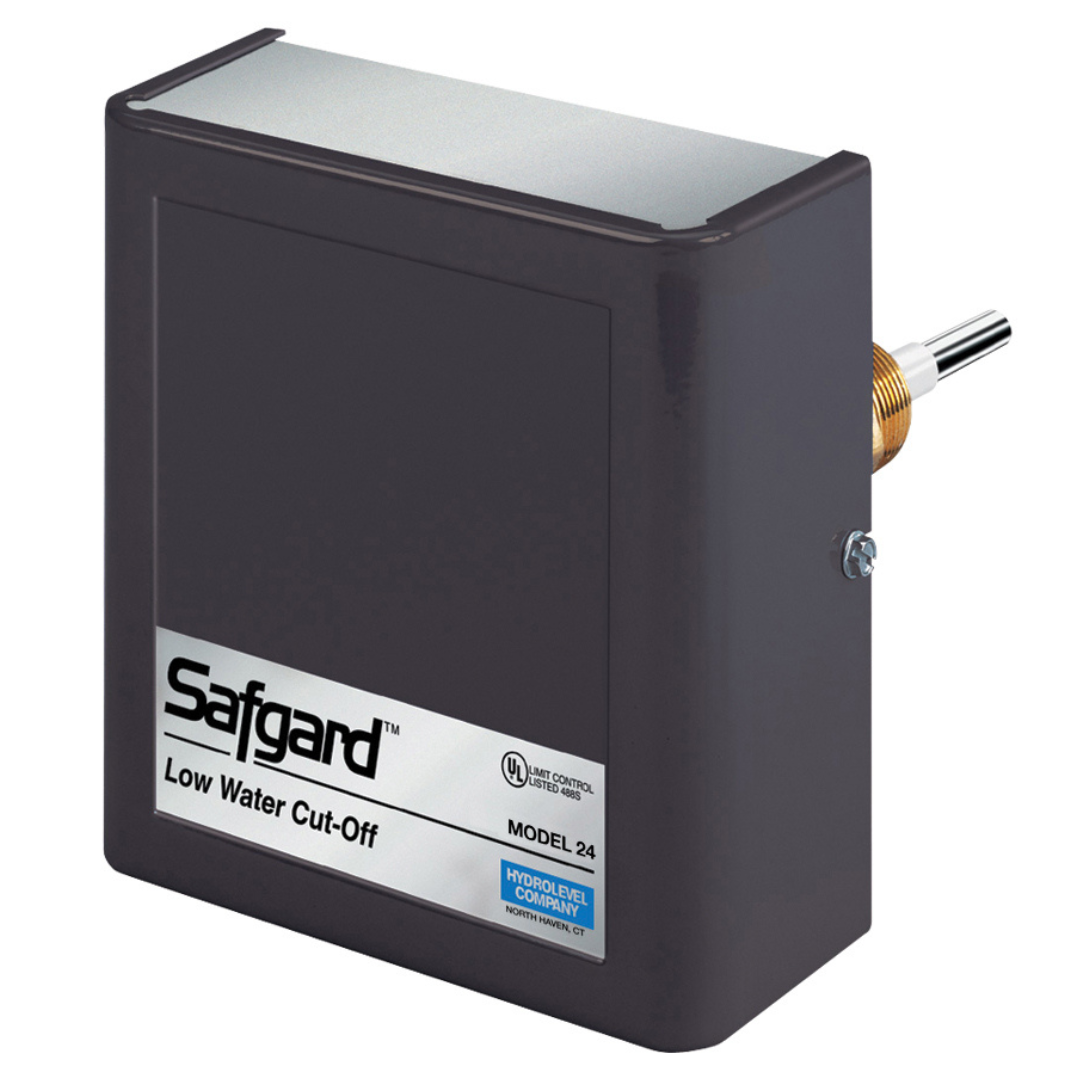

Hydrolevel 170-CL Safgard Low Water Cut-Off

Product Description

The Hydrolevel 170 Safgard Low Water Cut-Off is essential for protecting hot water boilers. This unit interrupts power when water levels drop critically low. Once the water level returns to normal, it automatically restarts the burner. It uses a heavy-duty electronic probe to detect water levels, which can be directly installed in boilers or water tanks.

• Interrupts power immediately under low water conditions.
• Automatically restarts the burner upon water level normalization.
• Features SPDT switch contacts.

Product Highlights

This low water cut-off is built for durability and reliable operation in residential and commercial settings. It helps prevent boiler damage.

Product Information

Standard Information

• Application: Hot Water Boilers
• Voltage: 120V

Technical Specifications

• Max Water Pressure: 160 psi
• Connection Size: 3/4 inches
• Control Connection: NPT
• Control Reset: Automatic
• Enclosure: NEMA 1
• Ohms Sensitivity: 15,000 ohm
• Switching Capacity: 5.8 FLA, 34.8 LRA
• Power Consumption: 7 VA
