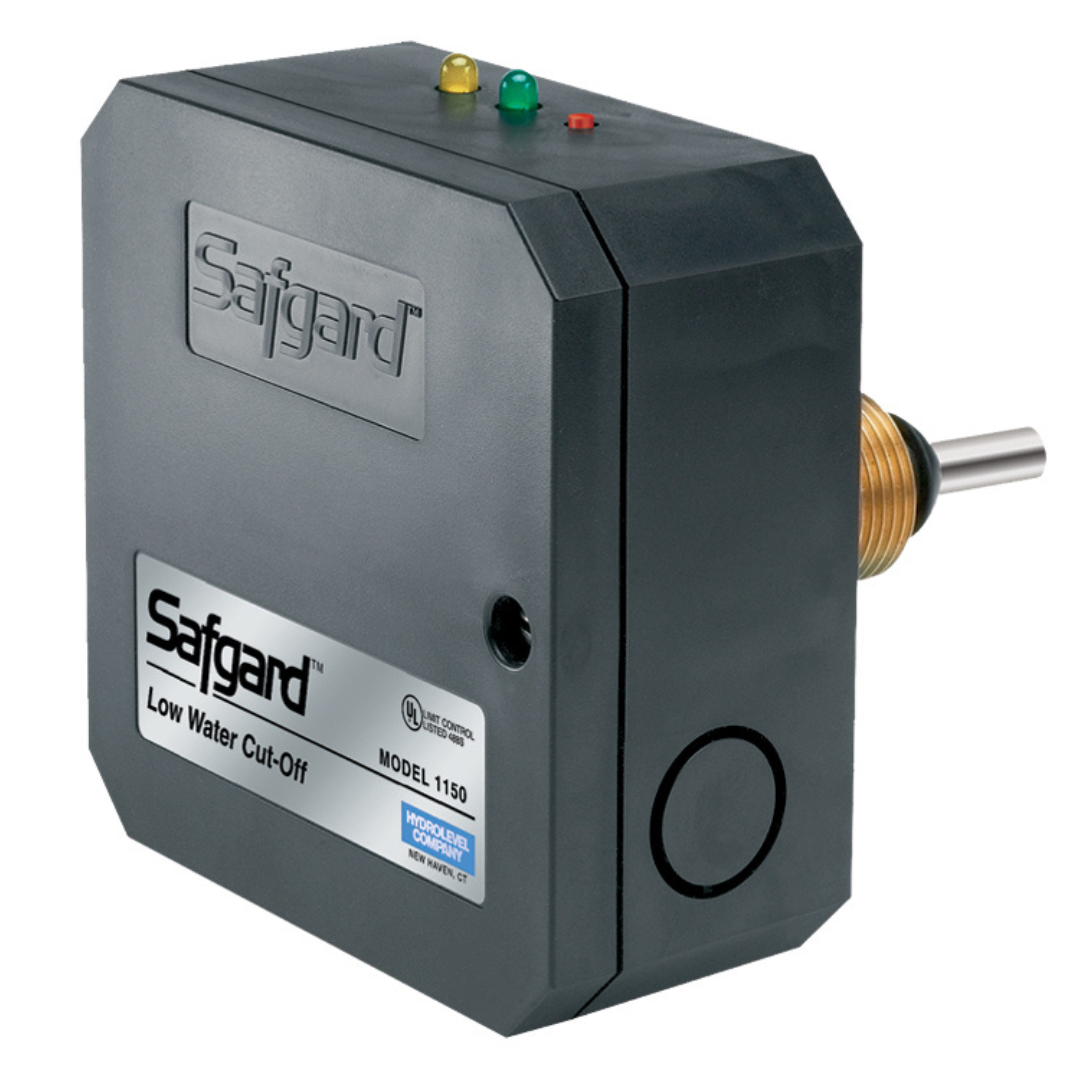

HYDROLEVEL 1150 / 45-1150 Safgard 1150 Low Water Cutoff w/ Auto Reset & Burner Circuit Test Button -120V

Product Description

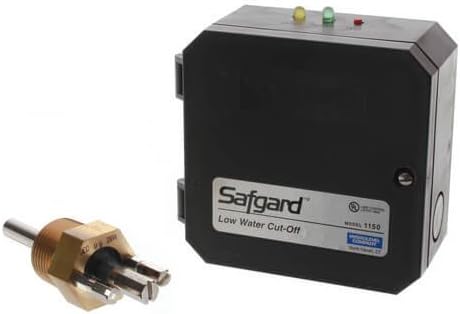

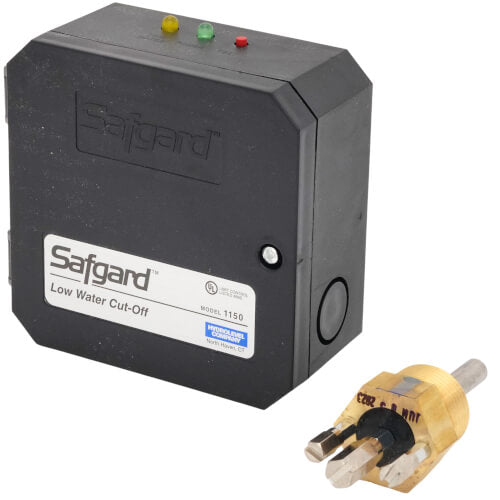

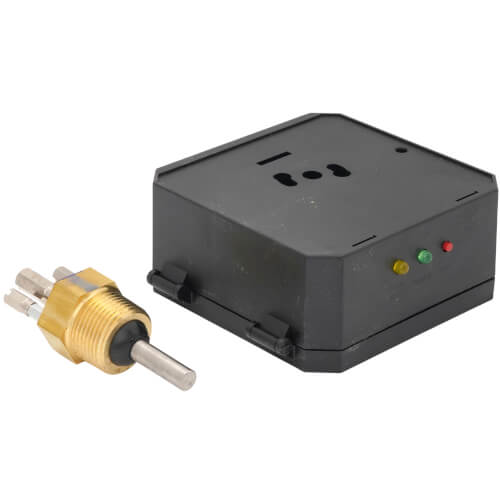

The Hydrolevel 1150 / 45-1150 is a low water cutoff designed for use with hot water boilers. This unit operates electronically and is equipped with a probe that connects to the control unit, which deactivates the burner circuit during low water scenarios. It features automatic reset and a burner circuit test button.

• Reliable electronic operation
• Low maintenance requirements
• Easy installation process

Product Highlights

This low water cutoff offers essential protection for your boiler system by ensuring safe operation.

Product Information

Standard Information

• Application: Hot Water Boilers
• Max Pressure: 160 PSI

Technical Specifications

• Type: Electronic
• Reset Type: Automatic
• Voltage: 120 VAC
• Pilot Duty Rating: 125 VA
• Power Consumption: 4 VA
• Max Temp: 250 degrees Fahrenheit
• Model: 1150
• Part Number: 45-1150
