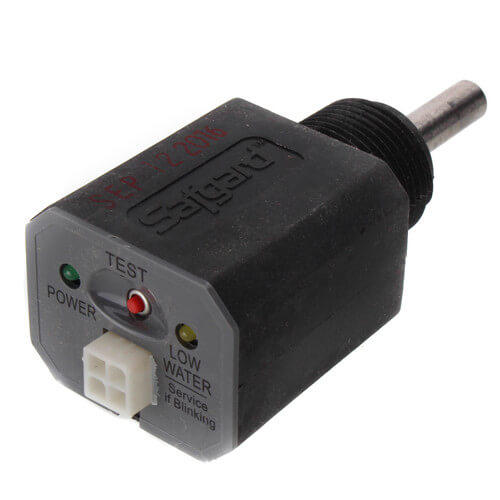

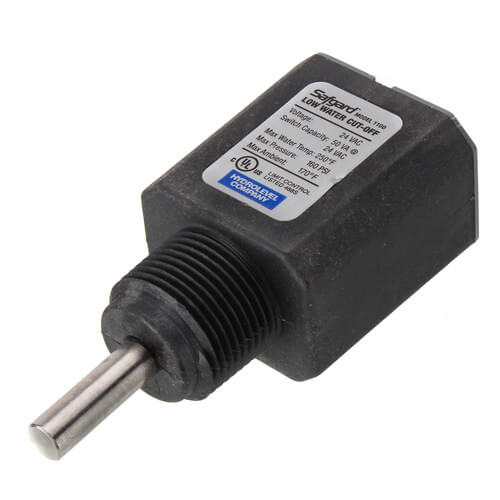

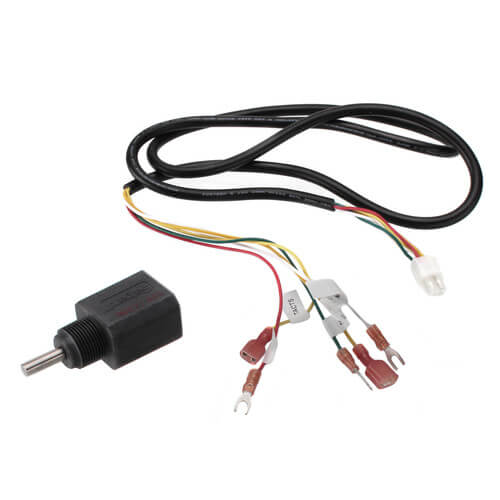

Hydrolevel 1100LWC Safgard 1100 Low Water Cutoff w/ Auto Reset & Burner Circuit Test Button 24V

Product Description

The HYDROLEVEL 1100LWC Safgard 1100 is an electrically operated low water cutoff with auto reset and burner circuit test button. It is designed for installation in the boiler shell or external manifold of hot water boilers. The control provides contacts to de-energize the burner circuit in a low water condition.

• Reliable Electronic Operation
• Low Maintenance
• Easy to Install
• 100% Factory Tested

Product Highlights

The HYDROLEVEL Safgard 1100 low water cutoff provides reliable electronic operation for hot water boilers, ensuring safety and preventing damage from low water conditions.

Product Information

Standard Information

• Brand: HYDROLEVEL
• Manufacturer Part Number: 1100LWC

Technical Specifications

• Application: Hot Water Boilers
• Switch: SPST
• Max Pressure (PSI): 160
• Type: Electronic
• Reset Type: Automatic
• Voltage: 24V
• Pilot Duty Rating: 125 VA
• Power Consumption: 1 VA
• Max Temp (F): 250°F
