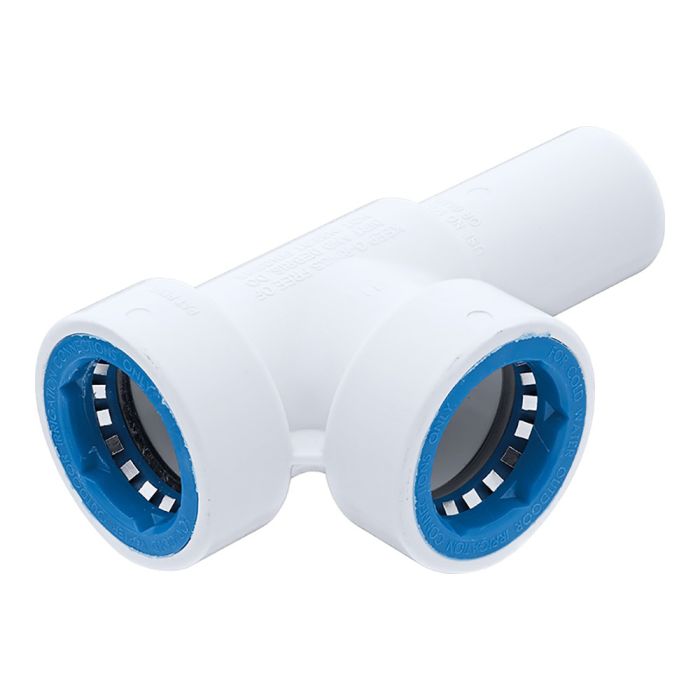

Hydro-Rain PVCL-444-010 Pvc-Lock Tee 1 in. PVCL x PVCL x Spigot

Product Description

The Hydro-Rain PVCL-444-010 1 in. PVCL x PVCL x Spigot Manifold Tee allows direct connection to valves. PVC-Lock fittings reduce installation times by over 50%. The stainless steel retainer ring and O-ring seal prevent leaking at both low and high pressures. For use with Schedule 40 and 80, and Class PVC pipe.

• Patent Pending Retaining System - Stainless steel teeth grip pipe tight for a strong, leak-proof connection.
• Swivels on the Pipe - After installation, PVC-Lock manifold fittings can swivel 360 Degrees around the pipe allowing easy valve maintenance and repair.
• Universal - For use with all brands of Schedule 40 and 80, and Class PVC pipe.

Product Highlights

The Hydro-Rain Pvc-Lock Tee is easy to install and remove. It has a 360-degree swivel design for adjustable sprinkler head installation.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: PVCL-444-010

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 1" PVC Lock Fittings
• Series: PVC-Lock x MIPT x Spigot Manifold Tee
• Max Working Pressure: 150 PSI
• Burst Pressure: 600 PSI
• Working Pressure: 0-150 PSI
• Size: 1 in.
• Connection: PVC-Lock (x2) x Spigot
• Material: ABS Plastic
• Connection Type: Socket
• Connection 2 Size: 1 in.
• Connection 2 Type: Socket
• Connection 3 Type: Spigot
• Connection 3 Size: 1 in.
• Maximum Operating Pressure: 150 PSI
• Angle: 90 Degree
• Item: Tee
• Type: Manifold
• Connection Size: 1 in.
• Regulated: No
• Body Material: ABS
• Retaining Ring Material: Stainless Steel
• Seal Material: EPDM
