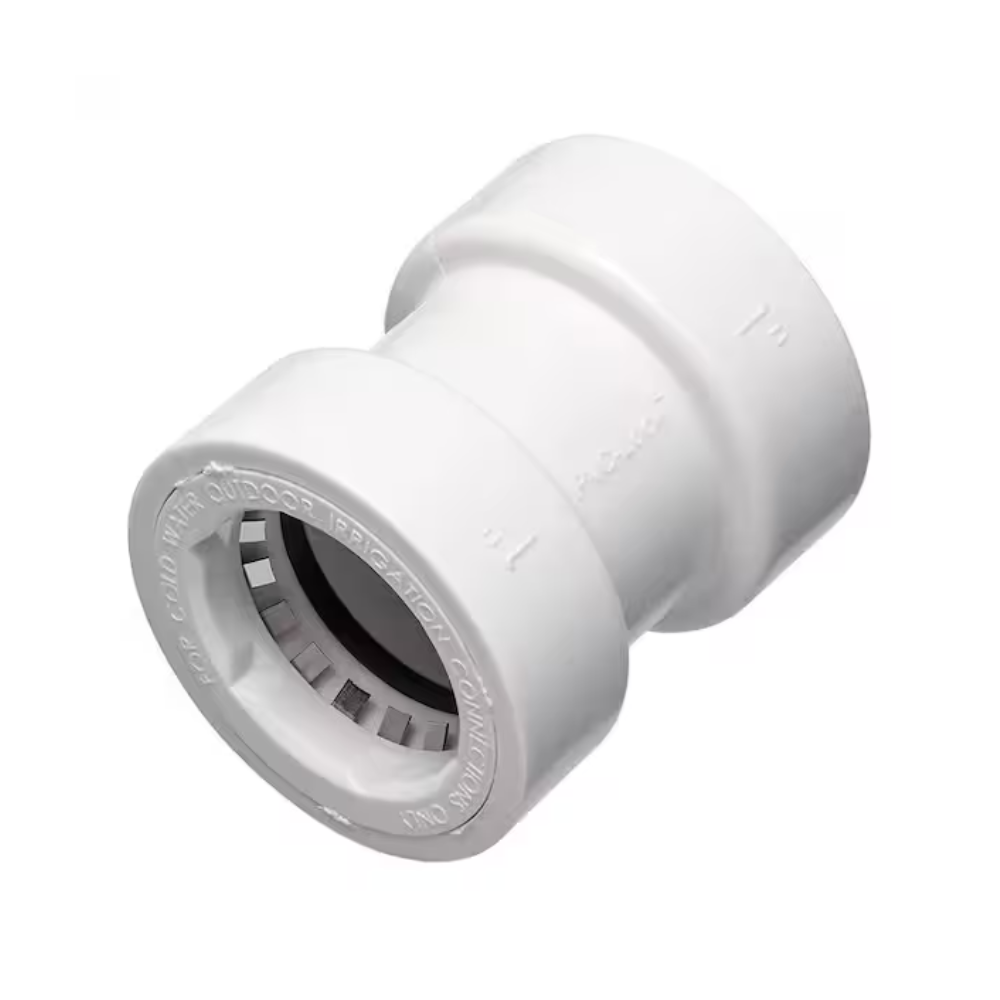

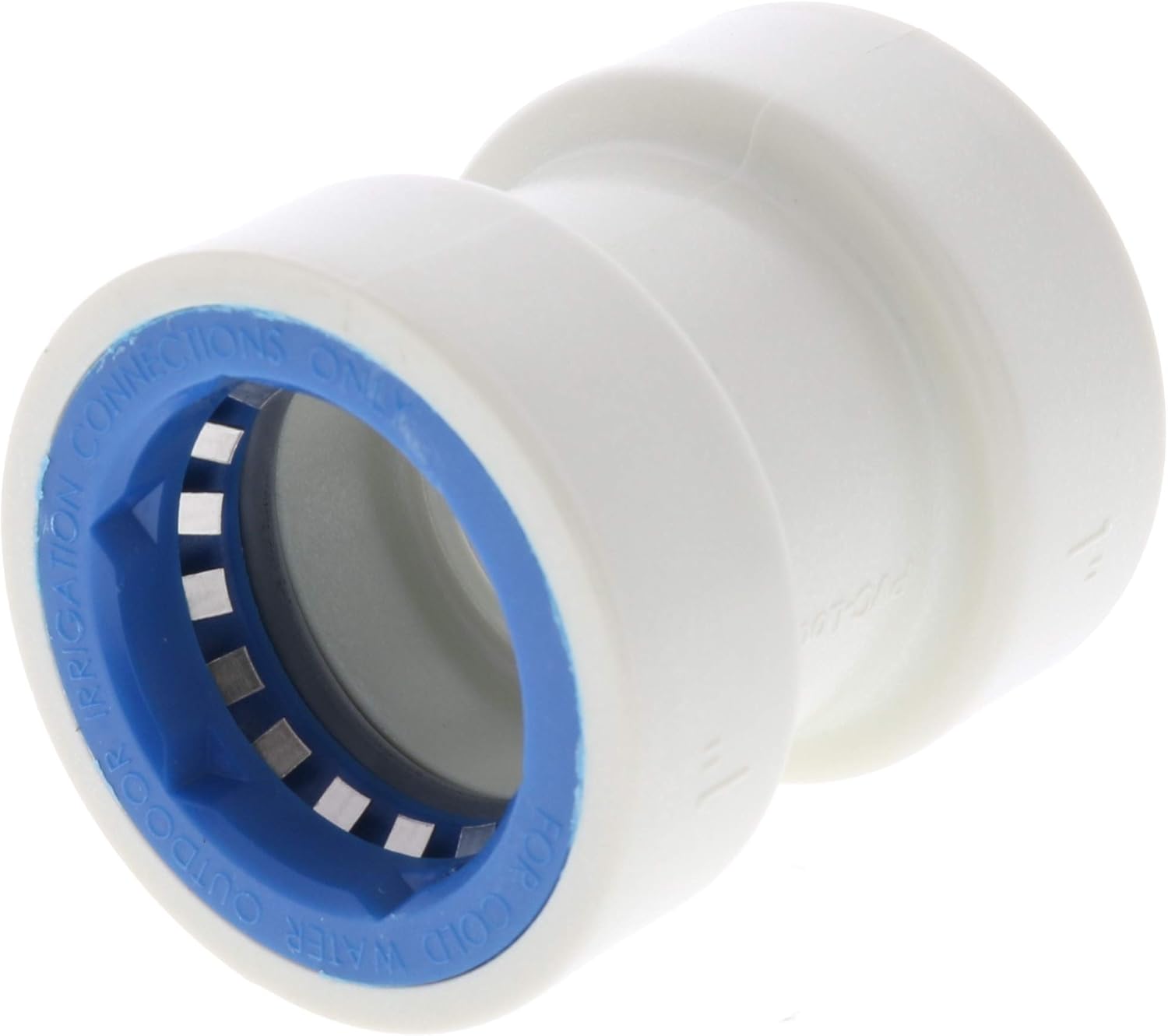

Hydro-Rain PVCL-429-010 PVC-Lock Coupling, 1 inches

Product Description

The HYDRO-RAIN PVCL-429-010 PVC-Lock Coupling is a push-fit fitting designed for repairing or installing PVC pipe without needing toxic primers or glues. It features an O-ring seal and stainless steel retainer ring to prevent leaks. It reduces installation times and protects from harmful chemicals.

• No glue needed
• Easy push and go design
• Internal stainless Steel retaining ring

Product Highlights

This coupling makes installing or repairing PVC pipe easier and safer.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: PVCL-429-010
• Country of Origin: United States

Technical Specifications

• Material: Stainless Steel, Polyvinyl Chloride
• Thread Size: 1 inch
• Connector Type: Coupling
• Size: 1 Inch
• Brand: Hydro-Rain
• Thread Type: NPT
• Number of Pieces: 1
• Burst Pressure: 600 PSI
• Operating Pressure: 80 PSI
• Operating Pressure Range: 0 to 150 PSI
• Flow Rate: 1 to 30 GPM
• Compatible Pipe Dimesnion: 1" Schedule 40 and 80, and Class PVC pipe
• Compatible Pipe Material: PVC
• Model: Hydro-Rain PVC-Lock
• Maximum Working Pressure: 150 psi
• Installation Area: Garden (above ground & underground)
• Type: Lawn Irrigation - PVC-Lock
• MPN: PVCL-429-010
• Set Includes: Coupling
• Suitable For: Lawn Irrigation, Planted Areas, Planted Rows
• Country of Origin: United States
• Product Type: 1" PVC Lock Fittings
• Series: PVC-Lock Coupling
• Max Working Pressure: 150 PSI
• Working Pressure: 0-150 PSI
• Connection: PVC-Lock
