Hydro-Rain PVCL-406-010 PVC-Lock Elbow, 1 inches

Product Description

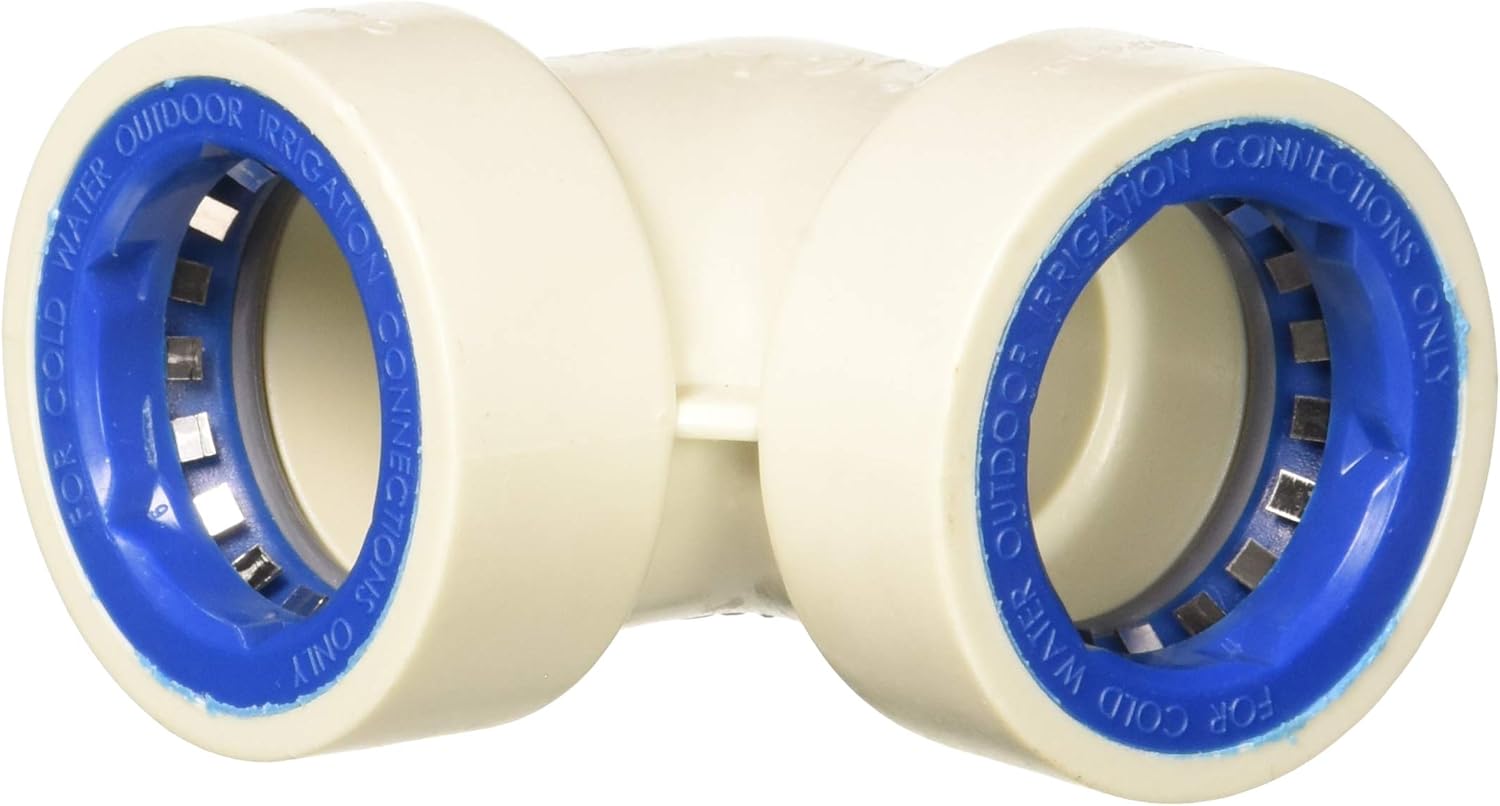

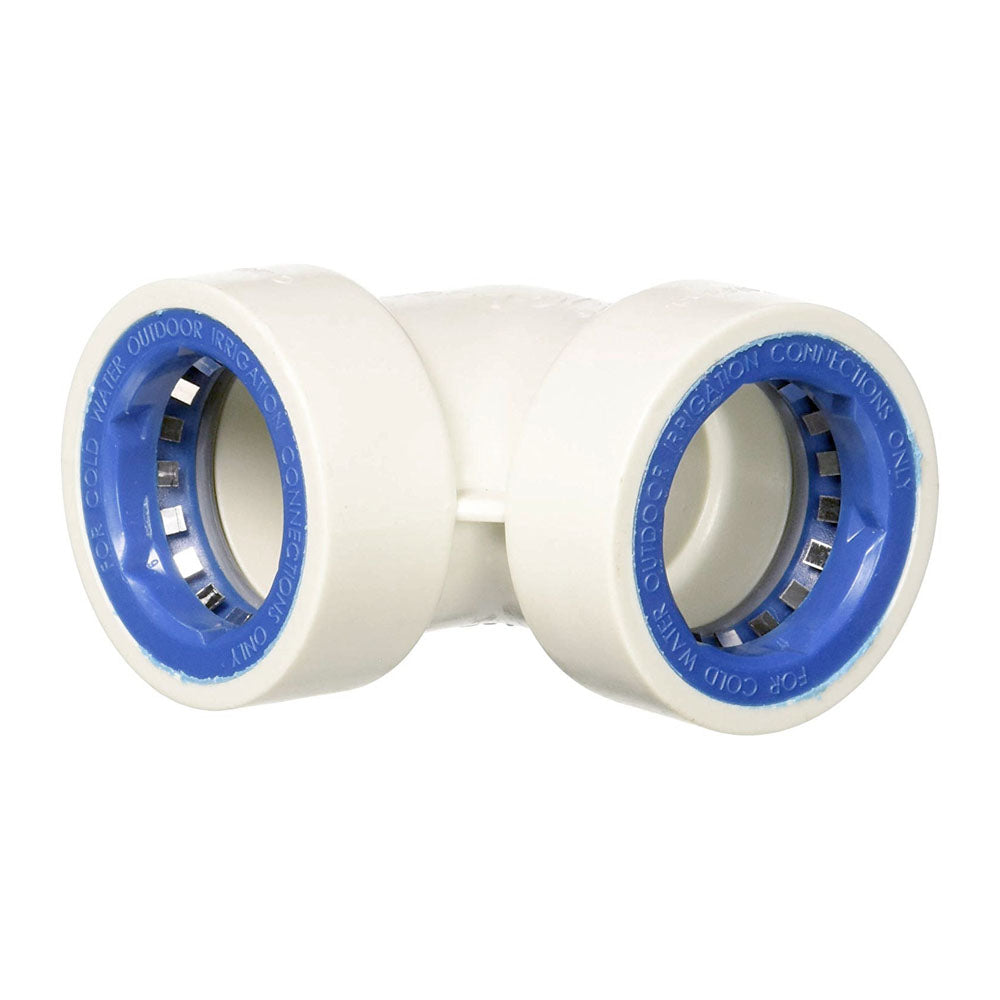

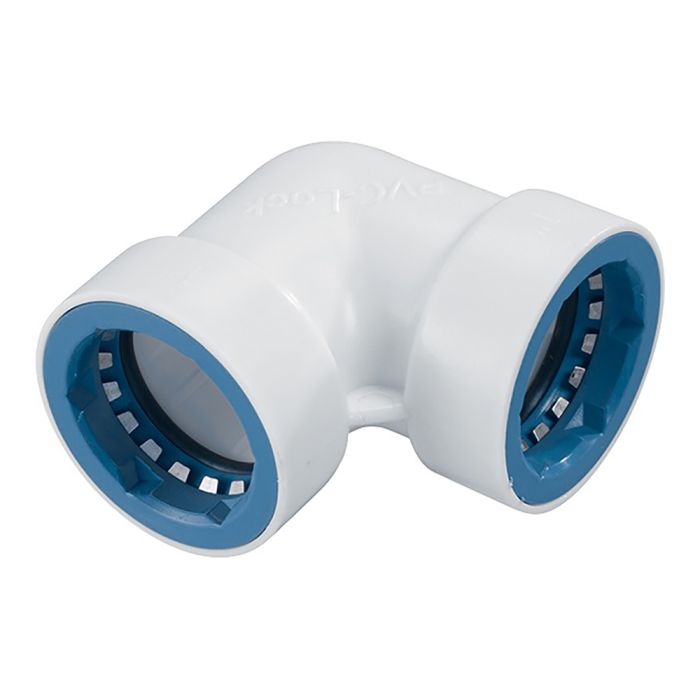

The HYDRO-RAIN PVCL-406-010 is a 1" PVC-Lock Elbow designed for repairing or installing PVC piped sprinkler systems without needing toxic glues or primers. Each fitting has a stainless steel retainer ring and an O-ring seal, preventing leaks. It reduces installation times and protects the environment from harmful chemicals.

• No Glue Needed
• PVC-Lock Elbow
• Easy push-and-go design

Product Highlights

This PVC-Lock elbow allows for quick, tool-free installation, saving time and protecting the environment by eliminating the need for glue and primers.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: PVCL-406-010

Technical Specifications

• Material: Stainless Steel, Polyvinyl Chloride
• Thread Size: 1 inch
• Connector Type: Elbow
• Brand: Hydro-Rain
• Product Type: 1" PVC Lock Fittings
• Series: PVC-Lock Elbow
• Max Working Pressure: 150 PSI
• Burst Pressure: 350 PSI
• Working Pressure: 0-150 PSI
• Size: 1 in.
• Connection: PVC-Lock
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 0 – 150 PSI
• FLOW RATE: 1 – 30 GPM
• COMPATIBLE PIPE DIMESNION: 1" Schedule 40 and 80, and Class PVC pipe
• COMPATIBLE PIPE MATERIAL: PVC
• TEMPERATURE RATING: 100°F
