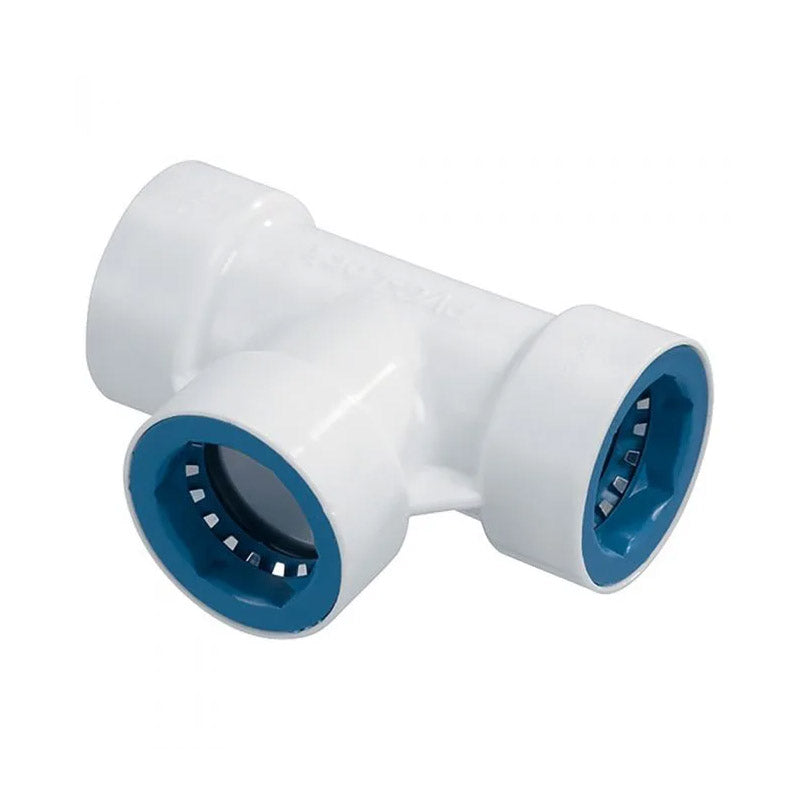

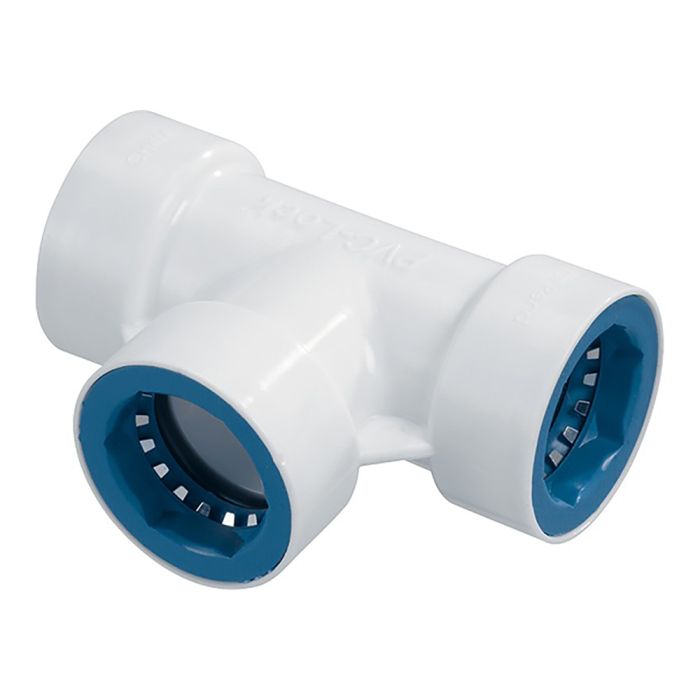

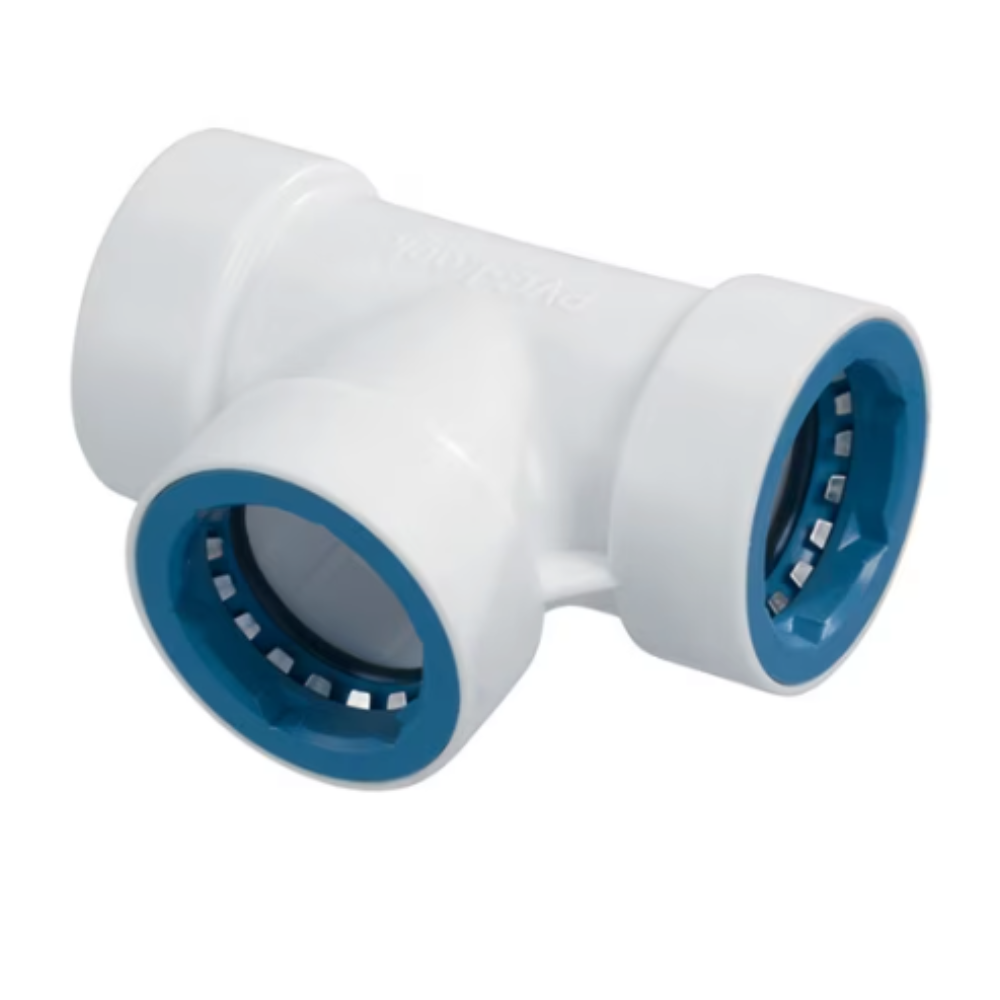

Hydro-Rain PVCL-401-007 PVC-Lock Tee, 3/4 inches

Product Description

The Hydro-Rain PVCL-401-007 PVC-Lock Tee is a push-fit fitting designed for repairing or installing PVC piped sprinkler systems without needing glues or primers. It features a stainless steel retainer ring and an O-ring seal to prevent leaks. This cost-effective fitting can be used in mainlines, header lines, or lateral lines.

• No glue needed
• Easy push and go design
• Internal stainless Steel retaining ring

Product Highlights

The PVC-Lock Tee offers a tool and chemical-free approach that reduces installation time, protects the environment, and ensures a strong, leak-proof connection.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: PVCL-401-007

Technical Specifications

• Product Dimensions: 2.5 x 3.13 x 1.75 inches
• Item Weight: 2.88 ounces
• Manufacturer: Hydro-Rain
• ASIN: B01L73K620
• Item model number: PVCL-401-007
• Brand: Hydro-Rain
• Product Type: 3/4" PVC Lock Fittings
• Series: PVC-Lock Tee
• Max Working Pressure: 150 PSI
• Burst Pressure: 600 PSI
• Working Pressure: 0-150 PSI
• Warranty: 1 Year
• Size: 3/4 in.
• Connection: PVC-Lock (x3)
• Material: ABS Plastic
• Operating Pressure: 80 PSI
• Operating Pressure Range: 0 – 150 PSI
• Flow Rate: 1 – 30 GPM
• Compatible Pipe Dimension: 1" Schedule 40 and 80, and Class PVC pipe
• Compatible Pipe Material: PVC
• Temperature Rating: 100°F
• UV Rating: 3 Year
• Connection Type: Pvcl
• Item: Tee
• Type: Lock
• Connection Size: 3/4 in.
• Weight: 0.20 lb.
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Temperature: 72 F
• Connection 2 Size: 3/4 in.
• Connection 2 Type: Pvcl
• Connection 3 Size: 3/4 in.
• Connection 3 Type: Pvcl
• Regulated: No
