Hydro-Rain BLP-075-CL-1X Blu-Lock Lateral Pipe 100 PSI (100 ft.)

Product Description

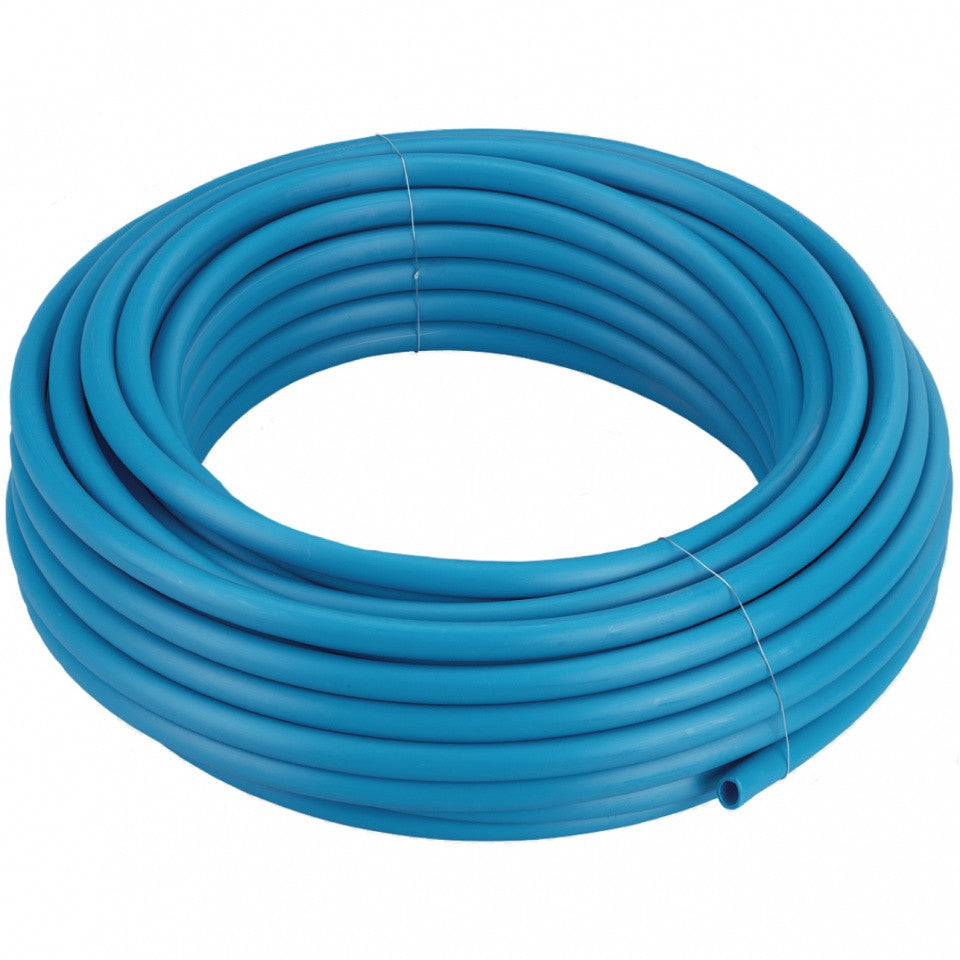

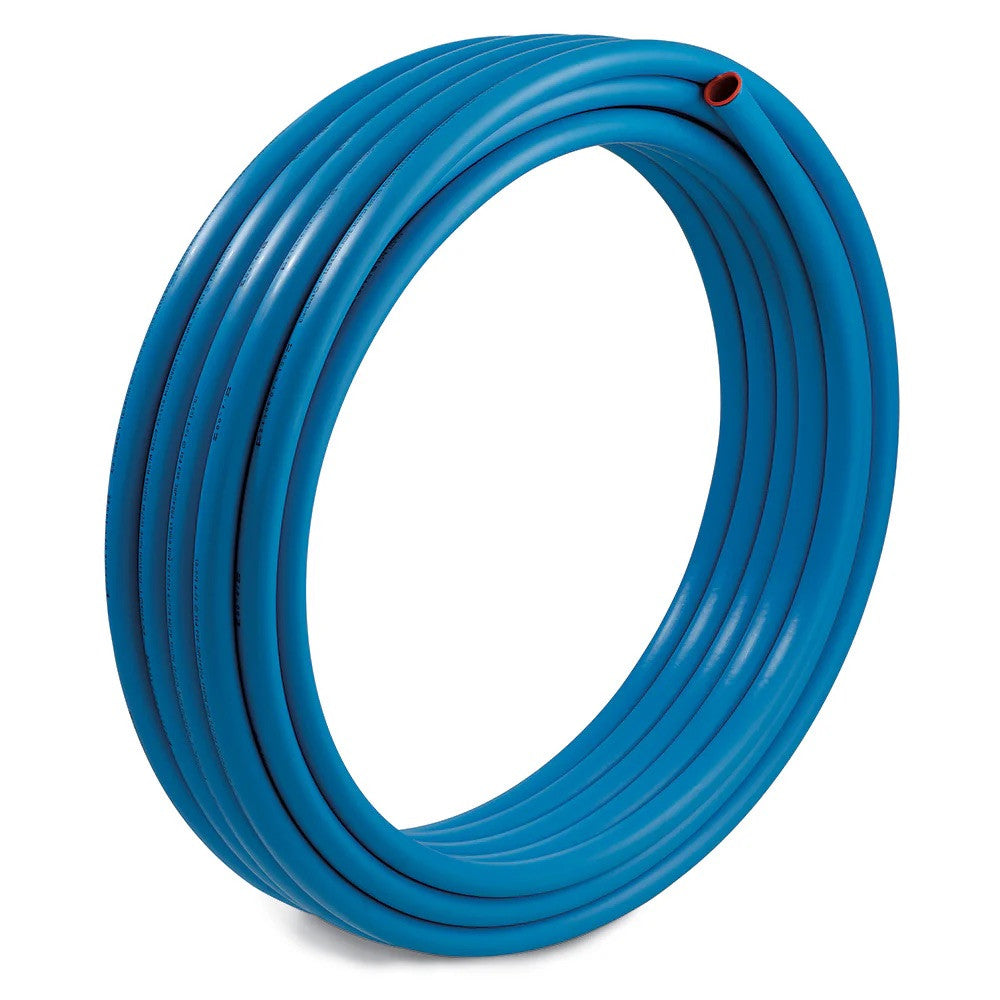

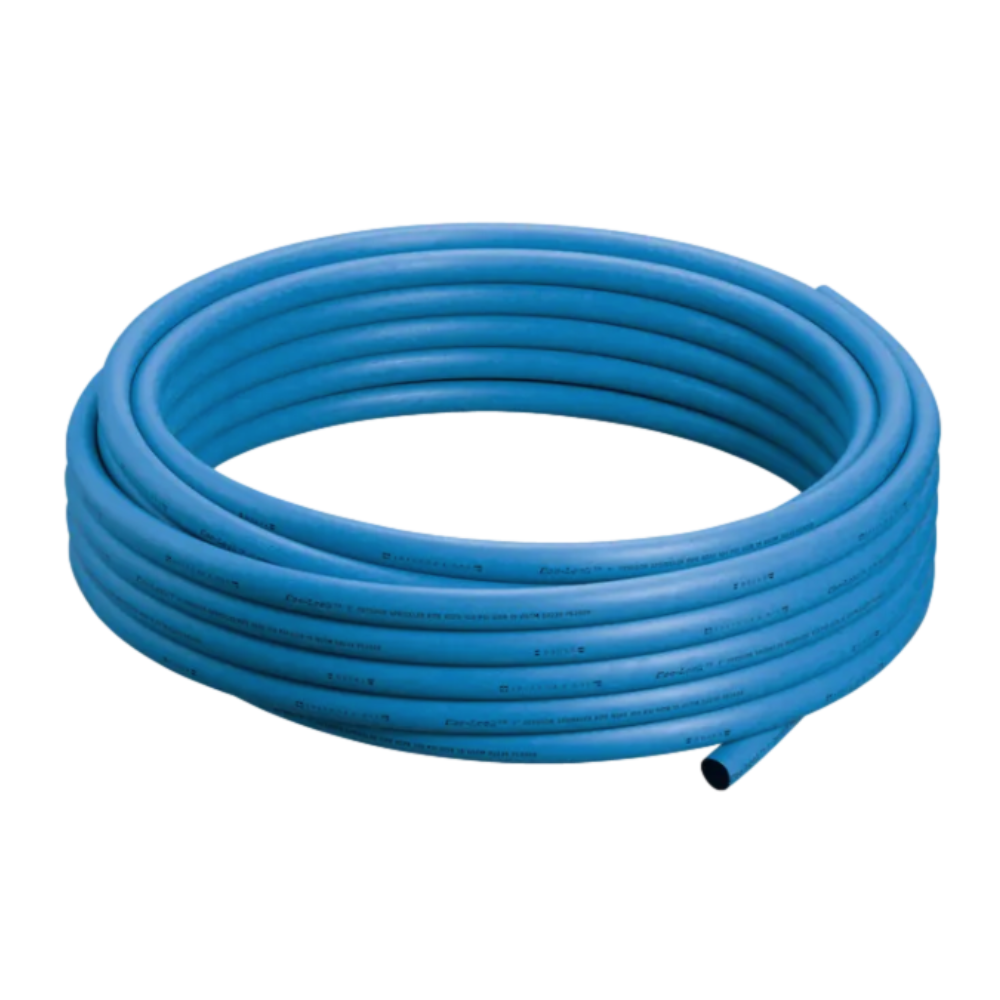

The Hydro-Rain BLP-075-CL-1X is a 3/4 in. Blu-Lock Swing Pipe Coil (.824 ID x .944 OD) with a max working pressure of 100 PSI and a length of 100 ft. Designed for valve-out sprinkler lateral line installations, it replaces traditional Schedule 40 PVC with a flexible, freeze-resistant alternative that installs faster.

• Tool and chemical free approach that cuts installation time in half or more.
• Environmentally Friendly recyclable HDPE pipe provides a superior alternative to PVC.
• Outside diameter (OD) technology ensure lower friction loss for better efficiency.

Product Highlights

This pipe is engineered for use with Hydro-Rain Blu-Lock quick-connect fittings, which use stainless steel teeth and EPDM seals to create a leak-proof, rotatable connection with zero tools.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BLP-075-CL-1X

Technical Specifications

• Brand: Hydro-Rain
• Product Type: Blu-Lock Pipe
• Inner Diameter: 0.824"
• Outer Diameter: 0.944"
• Purpose Or Function: Blu-Lock
• Warranty: 7 Years
• Size: 3/4 in.
• Coil Length: 100 ft.
• MPN: BLP-075-CL-1X
• UPC: 046878373822
• Pipe Size: 3/4 inch
• Length: 100 feet (coil)
• Wall Thickness: 0.060"
• Working Pressure: 100 PSI at 73°F
• Burst Pressure: Exceeds 320 PSI at 73°F
• Pressure Cycle Testing: Tested to 10,000 pressure cycles
• Material: HDPE (High-Density Polyethylene) – Virgin Resin
• Standard: ASTM D2239 – SIDR 15 PE3408
• Temperature Range: -4°F to 105°F
• UV Protection: 3-year UV protection package
• Application: Non-constant pressure, valve-out lateral lines only
• Fitting Compatibility: Blu-Lock push-connect fittings (recommended); standard poly insert fittings with clamps (compatible)
• Pressure Rating: 100 PSI
• Type: Polyethylene
• Item: Pipe
• Series: Blu-Lock Series
• Maximum Operating Pressure: 100 PSI
• Maximum Working Temperature: 100 F
• Maximum Flow Rate: 16 GPM
• Minimum Flow Rate: 11 GPM
• SDR Rating: SDR 15
• Regulated: No
• Inside Diameter: 3/4 in.
• Minimum Operating Pressure: 10 PSI
• Pack Size: Each
• UOM: ea
• Lead time: days
