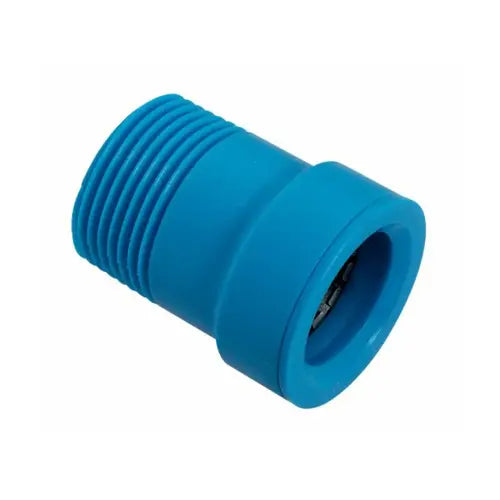

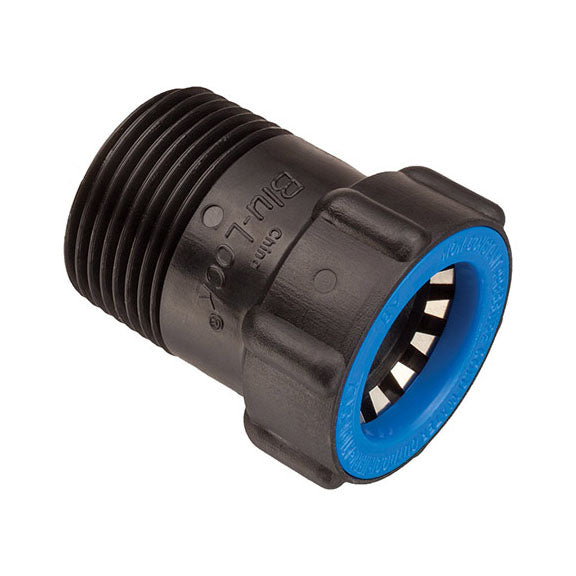

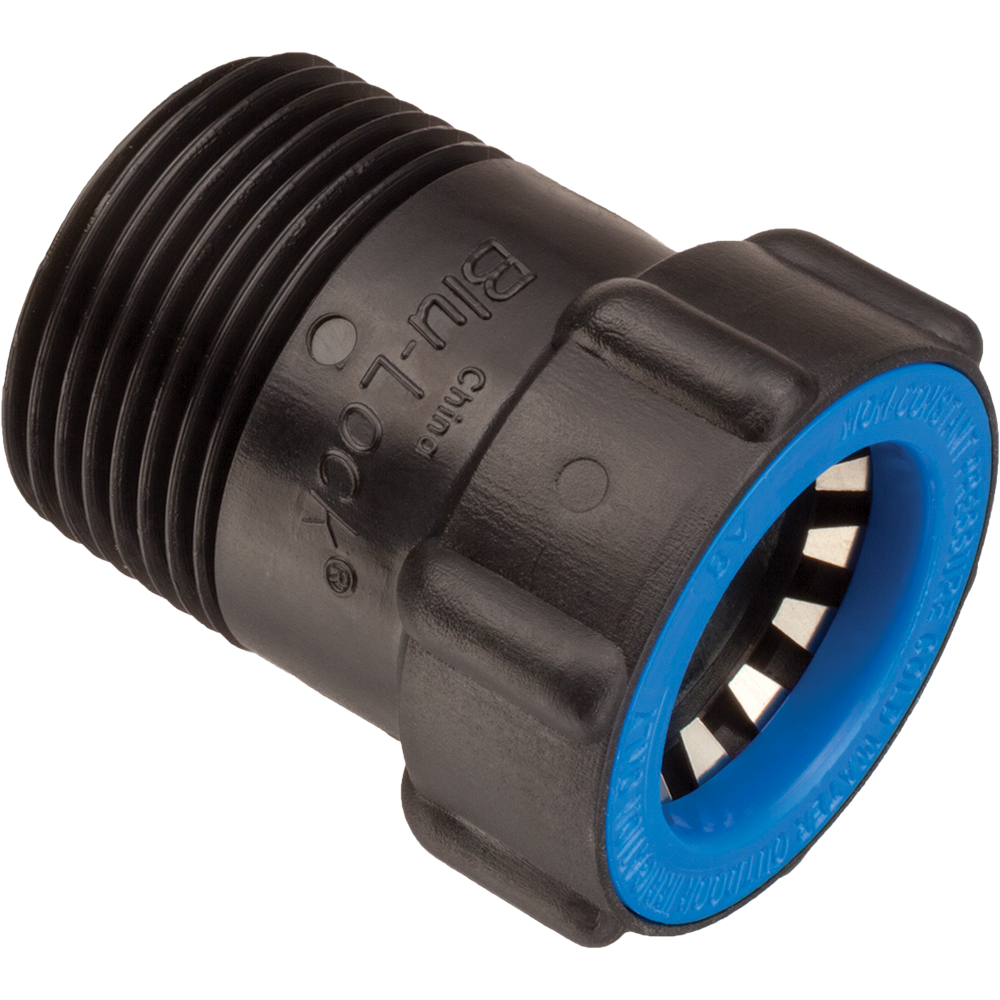

Hydro-Rain BL436-131 Blu-Lock Adapter 3/4 in. x 1 in. BL x MIPT

Product Description

The Hydro-Rain BL436-131 3/4 in. Blu-Lock x 1 in. MIPT Adapter eliminates the need for glue or clamps. The Blu-Lock system offers a faster and easier alternative for valve-out connections. This system is designed for non-constant pressure, cold water, outdoor direct burial irrigation connections only.

• Tool and chemical-free design cuts installation time in half.
• Recyclable HDPE pipe provides a superior alternative to PVC.
• Outside diameter (OD) technology ensures lower friction loss for better efficiency.

Product Highlights

The Hydro-Rain Blu-Lock system is the fastest, greenest irrigation installation method. Fittings are made from UV-resistant ABS, stainless steel and EPDM seals.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL436-131

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 3/4" Blu-Lock Fittings
• Series: Blu-Lock
• Reducing: YES
• Max Working Pressure: 125 PSI
• Burst Pressure: 250 PSI
• Working Pressure: 10-125 PSI
• Size: 3/4 in. x 1 in.
• COMPATIBLE PIPE DIMESNION: 3/4" Standard Inside Dimension Ratio (SIDR) 15 and 19 pipe (about 0.944" or 15/16")
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 10 ">– 125 PSI
• Connection Type: BL
• Item: Adapter
• Type: Lock
• Material: ABS Plastic
• Connection Size: 3/4 in.
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Pressure: 125 PSI
• Maximum Working Temperature: 72 F
• Connection 2 Size: 1 in.
• Connection 2 Type: Mipt
