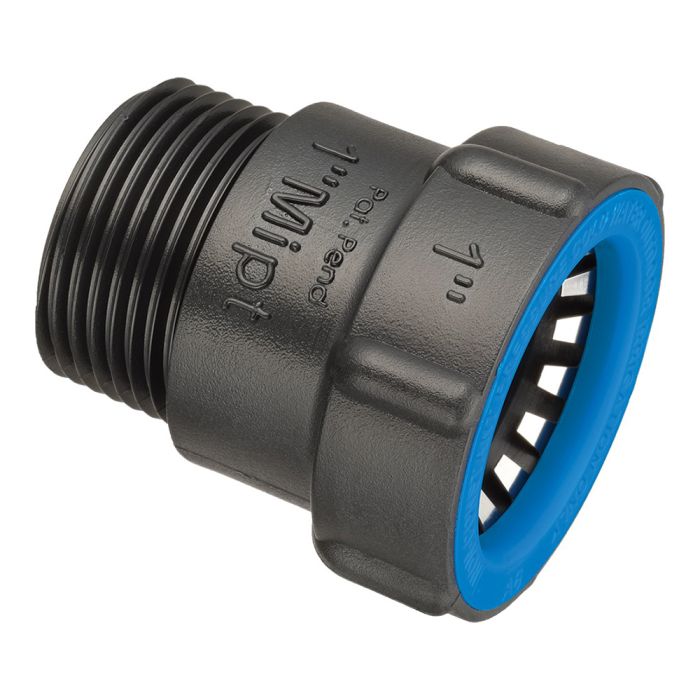

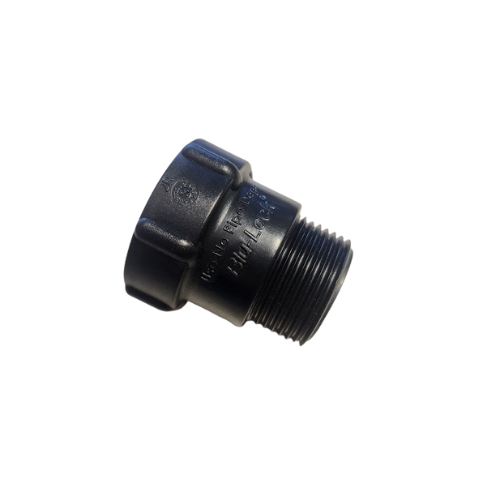

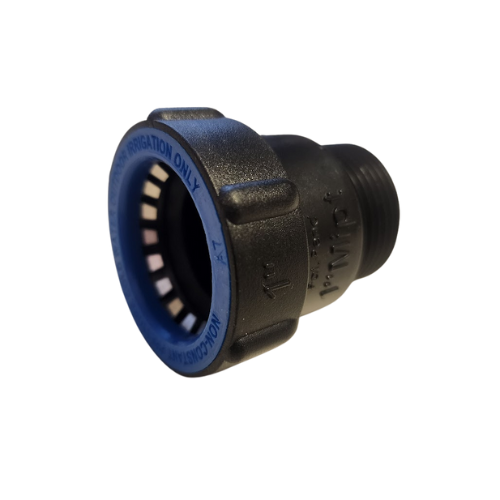

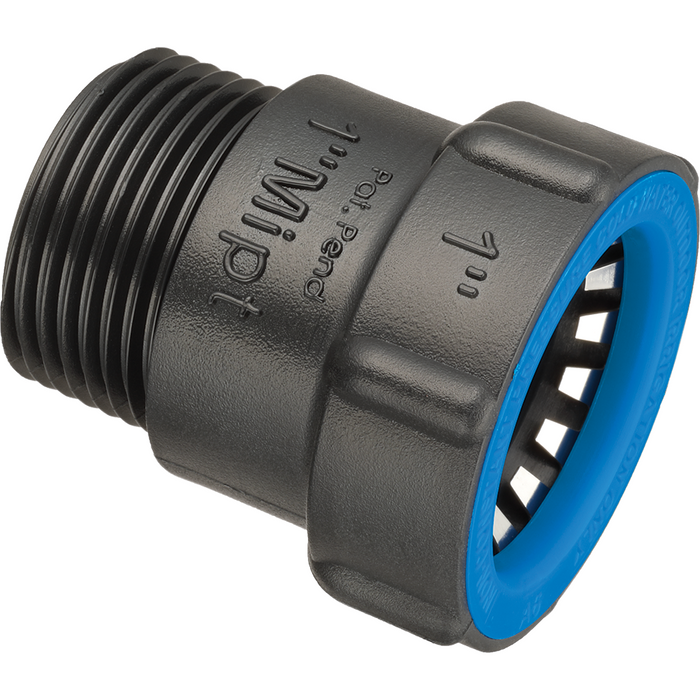

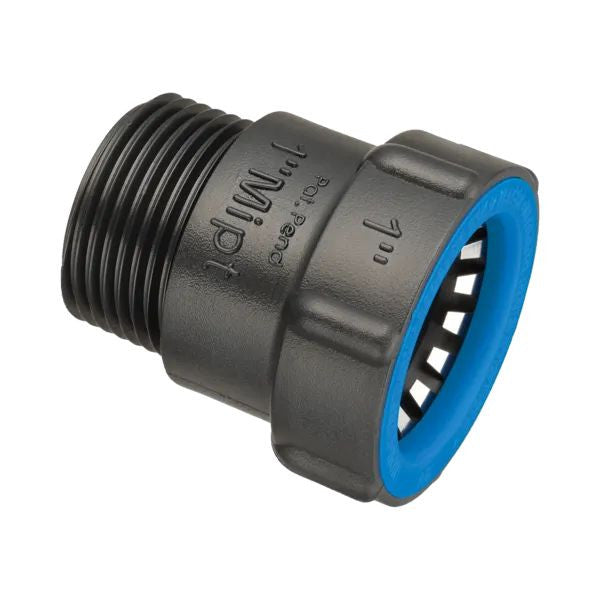

Hydro-Rain BL436-010 1 inches Blu Lock x 1 inches Male Pipe Thread Adapter

Product Description

The Hydro-Rain BL436-010 1" Blu-Lock x 1" Male Pipe Thread Adapter bridges the gap between flexible mainline tubing and rigid system components. This adapter connects 1" Blu-Lock tubing directly to AC electric valves, large filters, or pressure regulators. It allows you to build leak-free manifolds faster than with glued PVC.

• Easily converts 1" Blu-Lock tubing to a standard 1" Male Pipe Thread (MPT).
• Install tubing up to 80% faster than PVC with push-to-connect design.
• Internal stainless steel teeth lock onto the pipe for a strong, leak-proof connection.

Product Highlights

This adapter is essential for connecting Blu-Lock tubing to system components, offering a fast, secure, and chemical-free installation for irrigation systems.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL436-010

Technical Specifications

• Product Type: Adapter (Blu-Lock to Thread)
• Connection 1: 1" Blu-Lock Push-to-Connect
• Connection 2: 1" Male Pipe Thread (MPT)
• Operating Pressure: Up to 80 PSI (Constant), 100 PSI (Surge)
• Material: ABS Plastic
• MPN: BL-436-010
• Release Mechanism: Requires Release Tool (No built-in tab)
• Brand: Hydro-Rain
• Series: Blu-Lock
• Max Working Pressure: 150 PSI
• Burst Pressure: 350 PSI
• Working Pressure: 10-150 PSI
• Size: 1 in.
• Connection: Blu-Lock x MIPT
• COMPATIBLE PIPE DIMESNION: 1/2" pipe with an Outer Dimension of 0.59"
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 25 – 80 PSI
• PRESSURE RANGE: 25 – 220 PSI
• UV RATING: 5 Years
