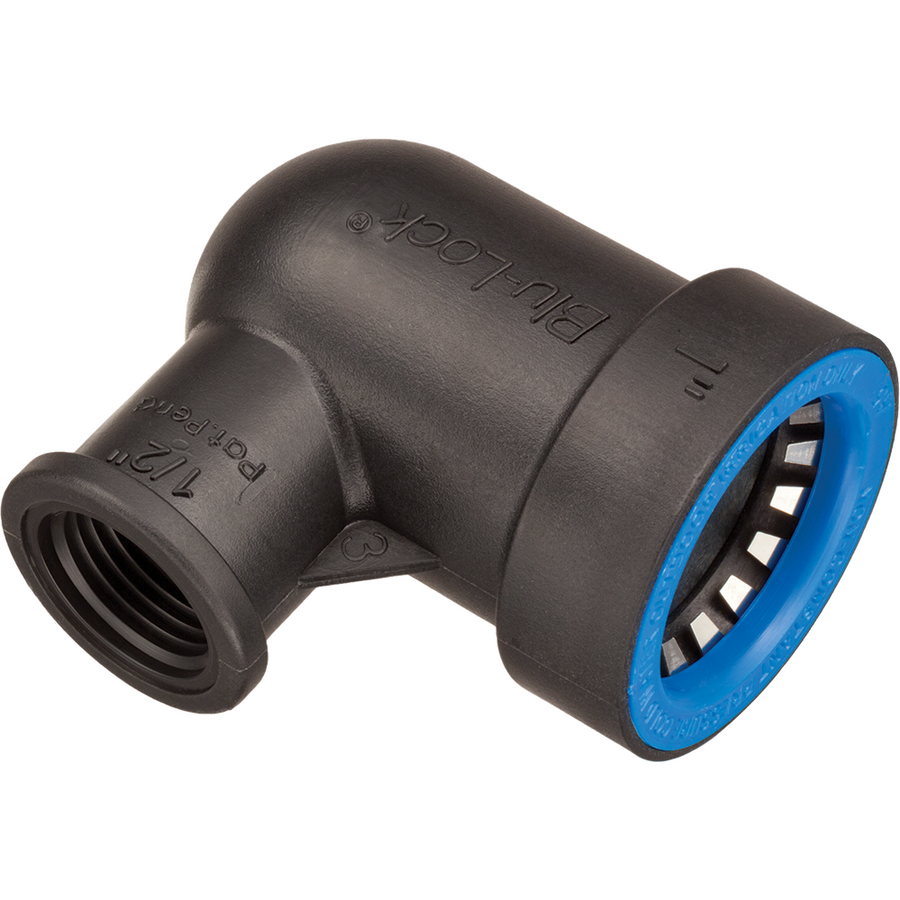

Hydro-Rain BL407-130 Blu-Lock Elbow 1 in. x 1/2 in. BL x FIPT

Product Description

The Hydro-Rain BL407-130 1 in. Blu-Lock x 1/2 in. FIPT Elbow is designed for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections. The push-and-go design allows for a tool and chemical free approach that cuts installation time in half or more. Blu-Lock pipe is a green, environmentally friendly and recyclable HDPE pipe that provides a superior alternative to PVC.

• Patent Pending Push-and-Go Design cuts installation time in half or more
• Environmentally Friendly recyclable HDPE pipe provides a superior alternative to PVC
• Glueless, tool-free installation protects the environment and the long-term health

Product Highlights

The Hydro-Rain Blu-Lock system is the fastest, greenest, irrigation installation method in the world. Built tough fittings made from UV-resistant ABS, stainless steel and EPDM seals are designed and tested to ensure toughness.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL407-130

Technical Specifications

• Brand Name: Hydro-Rain
• Product Type: 1" Blu-Lock Fittings
• Series: Blu-Lock
• Reducing: YES
• Max Working Pressure: 150 PSI
• Burst Pressure: 350 PSI
• Working Pressure: 10-150 PSI
• Warranty: 1 Year
• Size: 1 in. x 1/2 in.
• COMPATIBLE PIPE DIMESNION: 1/2" pipe with an Outer Dimension of 0.59"
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 25 – 80 PSI
• PRESSURE RANGE: 25 – 220 PSI
• UV RATING: 5 Years
• Connection Type: BL
• Item: Elbow
• Type: 90-Degree
• Material: ABS, Stainless Steel, EPDM
• Connection Size: 1 in.
• Weight: 0.20 lb.
• Angle: 90 Degree
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Temperature: 72 F
• Connection 2 Size: 1/2 in.
• Connection 2 Type: Fipt
