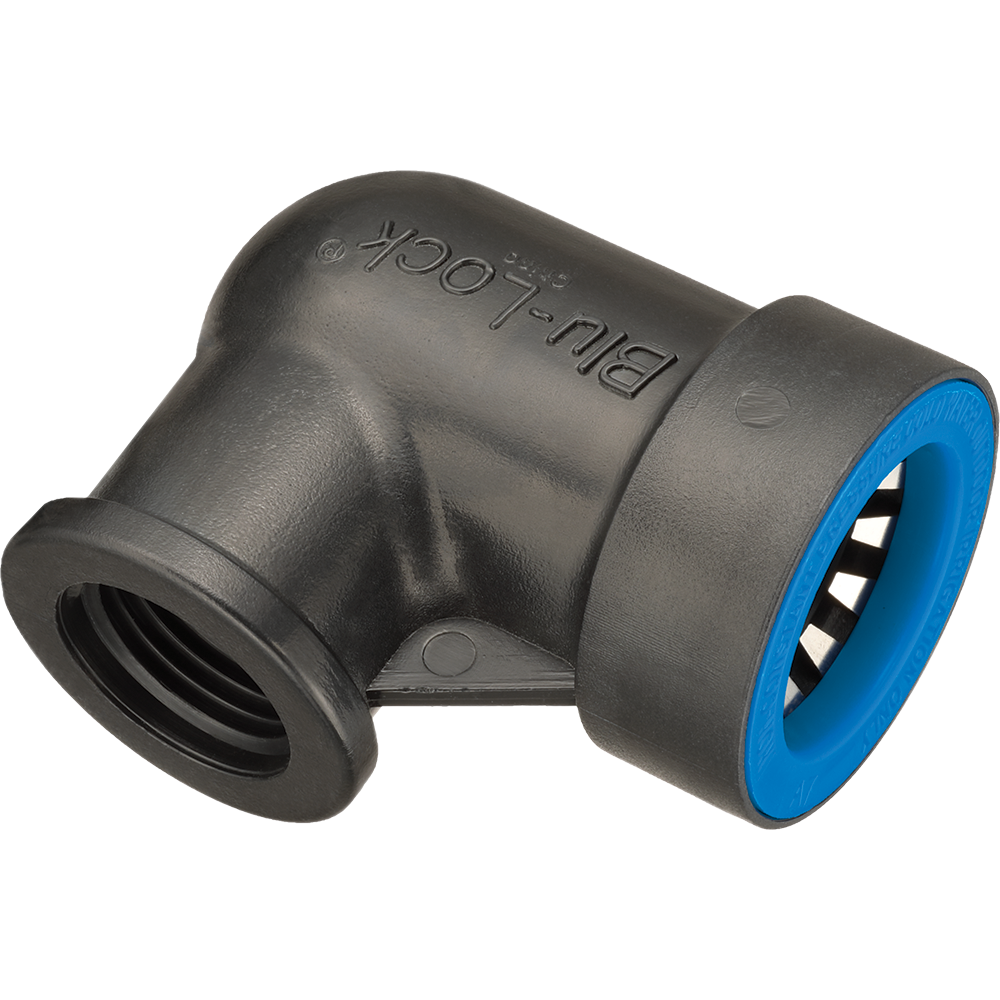

Hydro-Rain BL407-101 Blu-Lock Elbow 3/4 in. x 1/2 in. BL x FIPT

Product Description

The Hydro-Rain BL407-101 3/4 in. Blu-Lock x 1/2 in. FIPT Elbow is designed for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections. The push-and-go design is 100% tool and chemical-free, cutting installation time in half. Fittings are made from UV-resistant ABS, stainless steel, and EPDM seals.

• Patent Pending "Push-and-Go" Design - 100% tool and chemical free approach that cuts installation time in half or more.
• Blu-Lock Pipe is Green Environmentally Friendly recyclable HDPE pipe provides a superior alternative to PVC.
• Blu-Lock Fittings are Green Outside diameter (OD) technology ensure lower friction loss for better efficiency.

Product Highlights

This elbow fitting offers a tool-free and glueless installation, protecting the environment and promoting the long-term health of your crew. Its patented retaining system features stainless steel teeth that grip pipe tight for a strong, leak-proof connection.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL407-101

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 3/4" Blu-Lock Fittings
• Series: Blu-Lock
• Reducing: YES
• Max Working Pressure: 125 PSI
• Burst Pressure: 250 PSI
• Working Pressure: 10-125 PSI
• Size: 3/4 in. x 1/2 in.
• COMPATIBLE PIPE DIMESNION: 3/4" Standard Inside Dimension Ratio (SIDR) 15 and 19 pipe (about 0.944" or 15/16")
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 10 125 PSI
