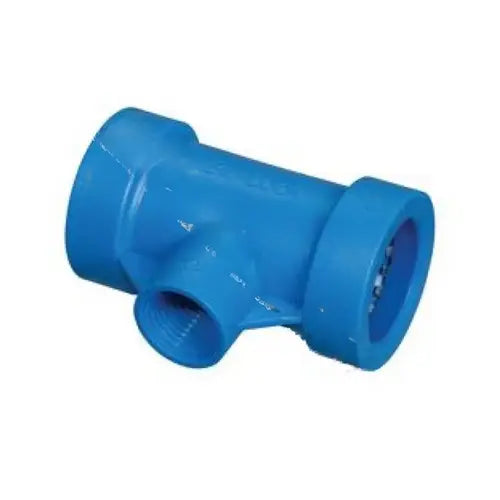

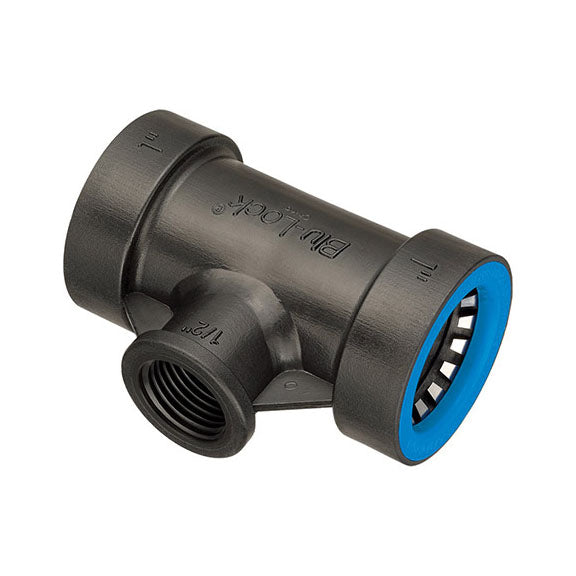

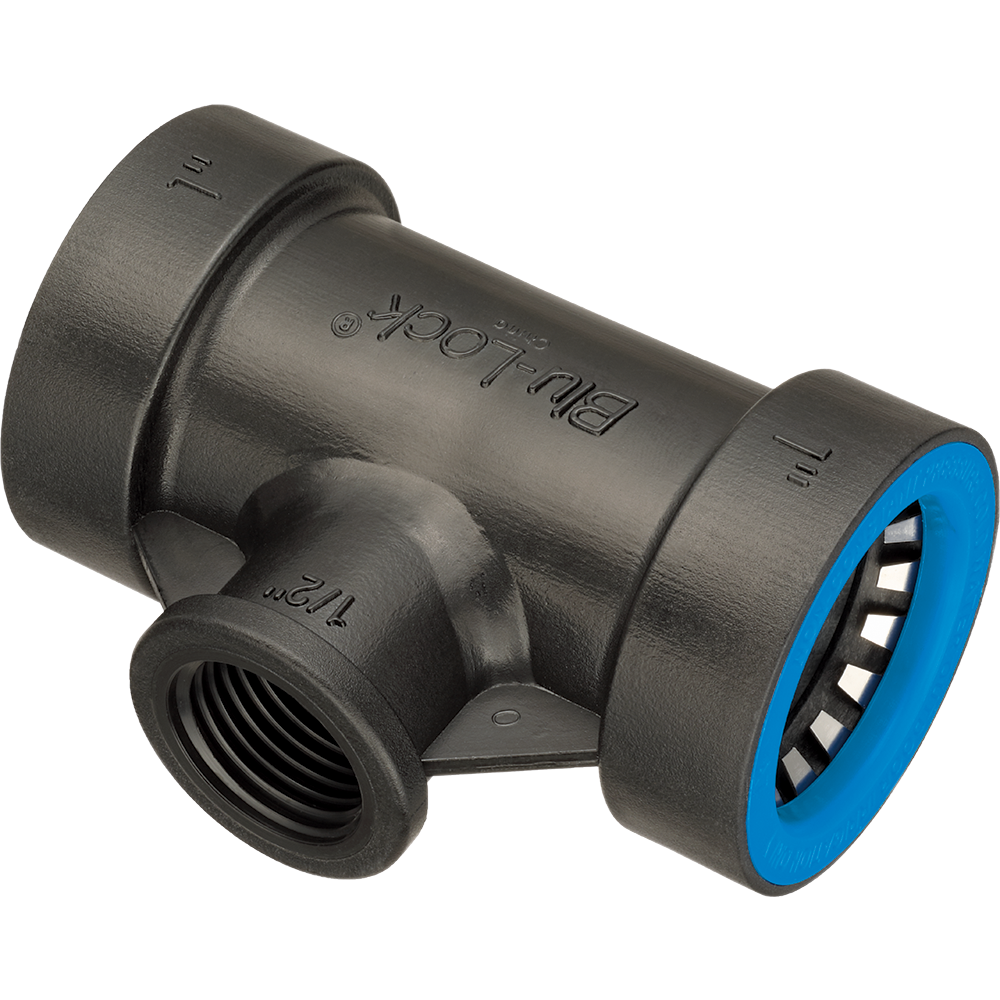

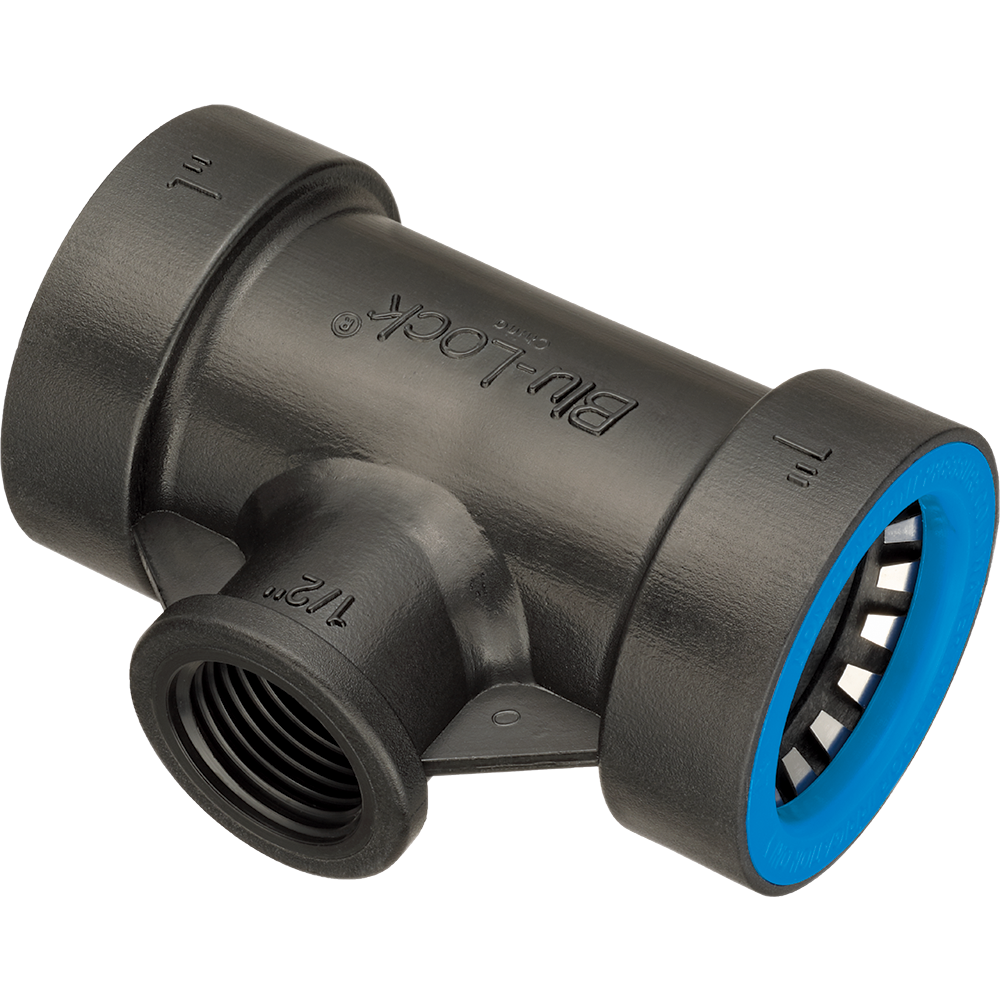

Hydro-Rain BL402-130 Blu-Lock Tee 1 in. x 1 in. x 1/2 in.

Product Description

The Hydro-Rain BL402-130 1 in. Blu-Lock x 1/2 in. FIPT Tee is designed for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections. The push-and-go design is 100% tool and chemical free, cutting installation time in half. Blu-Lock fittings ensure lower friction loss for better efficiency.

• Patent Pending "Push-and-Go" Design - 100% tool and chemical free approach that cuts installation time in half or more.
• Environmentally Friendly recyclable HDPE pipe provides a superior alternative to PVC.
• Outside diameter (OD) technology ensure lower friction loss for better efficiency.

Product Highlights

This Hydro-Rain Blu-Lock Tee offers a fast, green, and efficient irrigation installation method. Its tool-free and chemical-free design ensures environmental protection and long-term health.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL402-130

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 1" Blu-Lock Fittings
• Series: Blu-Lock
• Reducing: YES
• Max Working Pressure: 150 PSI
• Burst Pressure: 350 PSI
• Working Pressure: 10-150 PSI
• Warranty: 1 Year
• Size: 1 in. x 1 in. x 1/2 in.
• Connection Type: BL
• Item: Tee
• Material: ABS, Stainless Steel, EPDM
• Connection Size: 1 in.
• Weight: 0.20 lb.
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Pressure: 150 PSI
• Maximum Working Temperature: 72 F
• Connection 2 Size: 1 in.
• Connection 2 Type: BL
• Connection 3 Size: 1/2 in.
• Connection 3 Type: Blr
• Regulated: No
• COMPATIBLE PIPE DIMESNION: 1/2" pipe with an Outer Dimension of 0.59"
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 25 – 80 PSI
• PRESSURE RANGE: 25 – 220 PSI
• BURST PRESSURE RATING: 320 PSI (22,06 BAR) at 72 F (23 C)
• Working Pressure (Pipe): 100 PSI (6,89 BAR)
• Outer Dimensions: ¾” .944 (2,4 cm), 1.21” (3,1 cm)
• Inner Dimensions: ¾” .824” (2,1 cm), 1.07” (2,1 cm)
• Wall Thickness: .060” (0,2 cm)
• Wt. Foot: .074 lbs. (0,03 Kg)
• Department: PLUMBING - ALL
• Channel: Construction Channel
• Master Carton Quantity: 50
• Each Product Weight: 0.01 pound
• Minimum Sell Quantity: 1
• UV RATING: 5 Years
