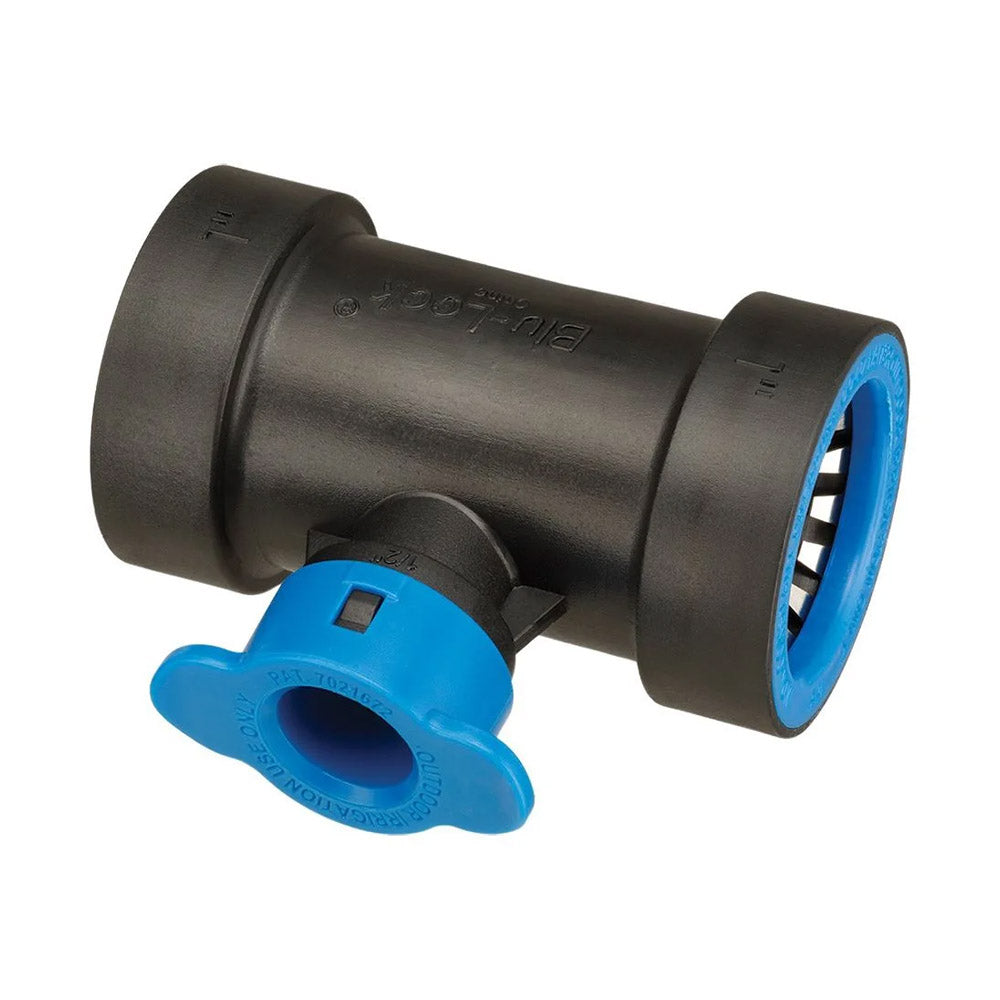

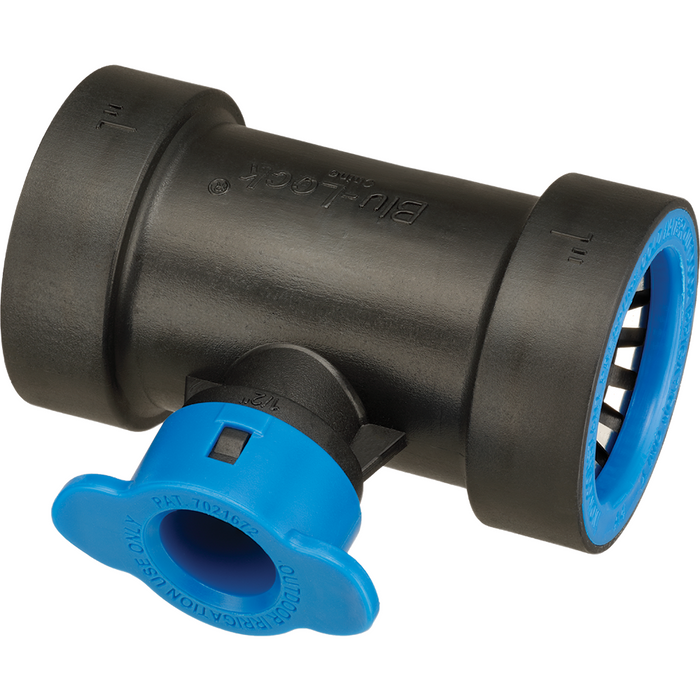

Hydro-Rain BL401-130 Blu-Lock Tee 1 in. x 1 in. x 1/2 in. BL x BL x BLR

Product Description

The HYDRO-RAIN BL401-130 Blu-Lock Tee is designed for non-constant pressure, valve-out, cold water, outdoor direct burial irrigation connections. This fitting features a push-and-go design for easy, tool-free installation. It's compatible with 80# and 100# SIDR 15 and 19 pipe, making it a versatile choice for irrigation systems.

• Insertion force has been reduced by half to make installation even faster.
• Works with all 80# and 100# SIDR 15 and 19 pipe.
• Fittings are releasable and reusable with the Blu-Lock release tool or BLR collar.

Product Highlights

The Blu-Lock system offers a fast, green irrigation installation method, eliminating the need for glue or clamps. Its heavy-duty construction ensures a strong, leak-proof connection.

Product Information

Standard Information

• Brand: HYDRO-RAIN
• Manufacturer Part Number: BL401-130

Technical Specifications

• Brand: Hydro-Rain
• Product Type: 1" Blu-Lock Fittings
• Series: Blu-Lock
• Reducing: YES
• Max Working Pressure: 150 PSI
• Burst Pressure: 350 PSI
• Working Pressure: 10-150 PSI
• Size: 1 in. x 1 in. x 1/2 in.
• Compatible Pipe Dimension: 1" Standard Inside Dimension Ratio (SIDR) 15 and 19 pipe (about 1.169" or 1-5/32")
• Item: Tee
• Material: ABS, Stainless Steel, EPDM
• Connection Size: 1 in.
• Connection Type: BL
• Minimum Operating Pressure: 10 PSI
• Maximum Operating Pressure: 150 PSI
• Maximum Working Temperature: 72 F
• Connection 2 Size: 1 in.
• Connection 2 Type: BL
• Connection 3 Size: 1/2 in.
• Connection 3 Type: Fipt
• Regulated: No
• COMPATIBLE PIPE DIMESNION: 1/2" pipe with an Outer Dimension of 0.59"
• OPERATING PRESSURE: 80 PSI
• OPERATING PRESSURE RANGE: 25 80 PSI
• PRESSURE RANGE: 25 220 PSI
• UV RATING: 5 Years
