HydraPro XR21J1636ZDC Natural Gas Flexible X-Riser 1 inch IPS x 1 inch MIP x 36 inch L

Product Description

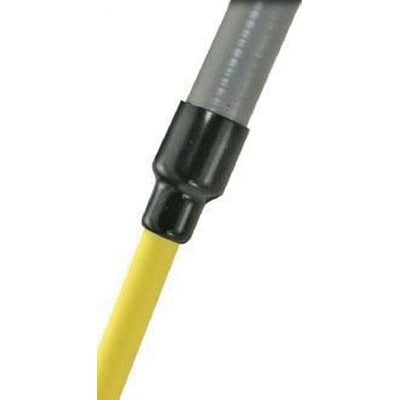

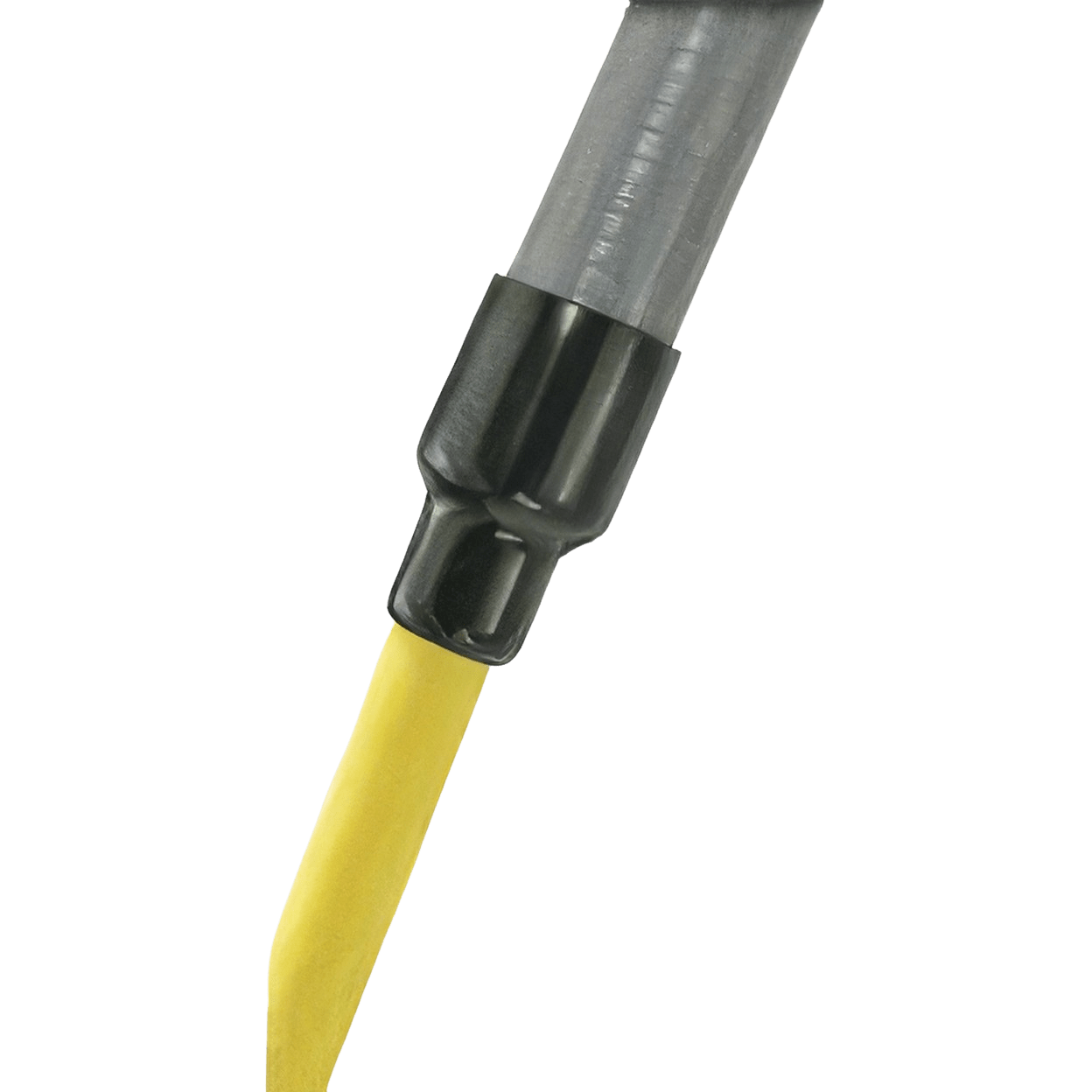

The HydraPro XR21J1636ZDC is a flexible and anodeless gas riser designed for natural gas and propane fittings. This riser has a connection size of one inch IPS tube and an MPT outlet. It features a durable yellow zinc dichromate finish and measures thirty-six inches in length. The product is rated for a maximum pressure of one hundred twenty-five psi and has a wall thickness of zero point one nineteen inches. Compliance with standards such as NFPA 58 and ASTM F1973 ensures safety and reliability.

• Eliminates below grade joints at the building
• Bottoming nut prevents the need for torque measurement
• Single-piece bi-directional seal design

Product Highlights

Ideal for connecting gas lines, this X-riser simplifies installation while meeting all necessary standards.

Product Information

Standard Information

• Item Name: Gas Riser
• Type: Flexible, Anodeless, Straight

Technical Specifications

• Connection Size: 1 inch
• Connection Type: IPS Tube x MPT Outlet
• Length: 36 inches
• Pressure Rating: 125 psi
• Material Finish: Yellow Zinc Dichromate
• Applications: For Natural Gas/Propane Fittings
• Standards/Approvals: NFPA 58, NFPA 54 (ANSI Z223.1), ASTM F1973/F1948-12, ASTM F 1087, IAPMO/UPC/IPC Listed
