Hydra-zorb HYDRA258 Cushion Clamp Strut Mount 2-5/8 Inches Od Tube

Product Description

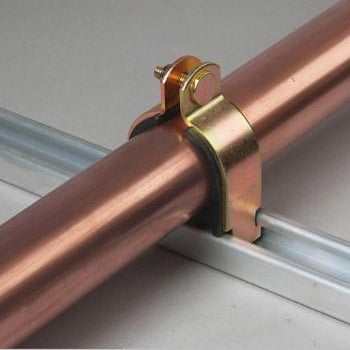

The Hydra-Zorb HYDRA258 is a cushion clamp designed for strut mounting applications. It secures tubing with an outer diameter of 2-5/8 inches to strut channel systems. HVAC technicians, plumbers, pipefitters, and mechanical contractors rely on this type of clamp to support refrigerant lines, hydraulic tubing, copper pipe, and other round conduit runs in commercial and industrial installations. The cushion clamp design reduces vibration transfer between the pipe and the supporting structure. This helps protect both the pipe and the surrounding building components from wear caused by constant system vibration and movement. The cushion material is TPE plastic, which stands for thermoplastic elastomer. This material is rated for temperatures from -65 degrees Fahrenheit to 275 degrees Fahrenheit. That wide temperature range makes the HYDRA258 suitable for both chilled water systems and high-temperature hot water or steam adjacent applications. The clamp body is constructed from 1008-1010 carbon steel, which provides solid structural strength for pipe support loads. The studs are projection welded directly to the clamp, creating a strong and reliable connection point. A nylon insert locknut is included, which resists loosening caused by vibration during system operation. All metal components on the HYDRA258 receive tri-valent, non-hexavalent chromium plating. This plating provides corrosion resistance without the environmental and safety concerns associated with traditional hex chrome plating processes. The tri-valent finish meets modern regulatory standards used in commercial construction and industrial maintenance environments. This clamp is a direct fit for standard strut channel, also known as Unistrut or channel framing systems, which are common in mechanical rooms, pipe chases, and equipment areas. Installers looking for a reliable 2-5/8 inch OD cushion clamp for strut support will find the HYDRA258 a straightforward, code-compatible solution.

• TPE cushion material rated from -65 to 275 degrees Fahrenheit for use across a wide range of system temperatures
• 1008-1010 carbon steel clamp body with projection welded studs and nylon insert locknut for vibration-resistant assembly
• Tri-valent, non-hexavalent chromium plating on all metal components for corrosion resistance and regulatory compliance

Product Highlights

The Hydra-Zorb HYDRA258 cushion clamp provides secure, vibration-dampening strut support for 2-5/8 inch OD tubing. Its TPE cushion, carbon steel construction, and tri-valent plating make it a durable, code-friendly choice for commercial and industrial pipe support applications.

Product Information

Standard Information

• Brand: HYDRA-ZORB
• Manufacturer Part Number: HYDRA258

Technical Specifications

• Mount Type: Strut Mount
• Tube Outer Diameter: 2-5/8 inches
• Cushion Material: TPE Plastic
• Temperature Rating: -65 to 275 degrees Fahrenheit
• Clamp Material: 1008-1010 Carbon Steel
• Stud Attachment Method: Projection Welded
• Locknut Type: Nylon Insert Locknut
• Plating: Tri-Valent, Non-Hexavalent Chromium
