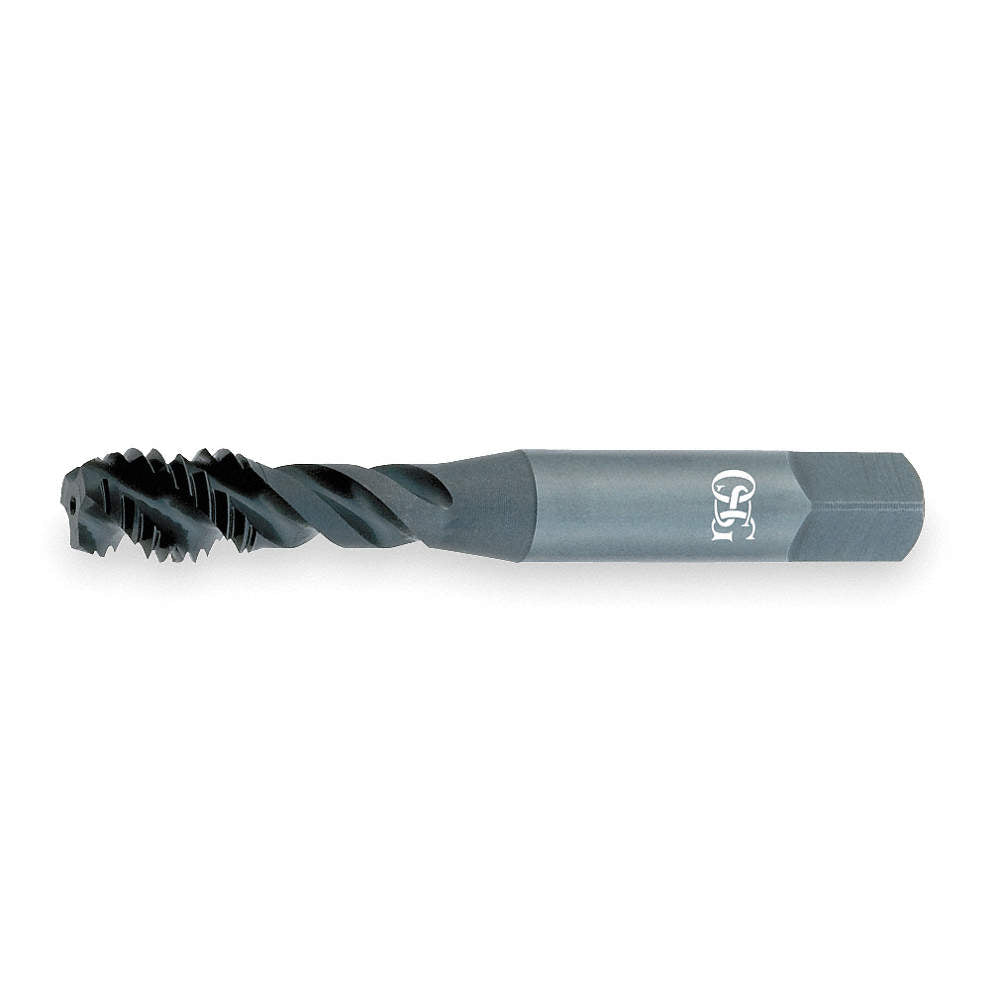

HY-PRO OSGTA-2930801 290 Series Spiral Flute Tap Power 5/16 in-18 UNC Replacement MPN

Product Description

HY-PRO 290 Series Spiral Flute Tap OSGTA-2930801 is designed for various threading applications in metalworking. Made from high-quality vanadium high-speed steel (HSS-E), this tap is suitable for creating threads in a wide range of materials.

• 3 flutes for efficient chip removal
• Semi-bottoming chamfer allows for threading close to the bottom of blind holes
• Right-hand cutting direction for user-friendly operation

Product Highlights

This tap delivers precision and performance in professional settings, making it ideal for use with alloy steel, carbon steel, cast iron, and stainless steel.

Product Information

Standard Information

• Brand: HY-PRO
• MPN: OSGTA-2930801

Technical Specifications

• Measurement System: Imperial
• Overall Length: 2-23/32 in
• Shank Diameter: 0.318 in
• Thread Length: 1-1/8 in
• Thread Size: 5/16 in-18
• Thread Standard: UNC
• Chamfer Type: Semi-Bottoming
• Flute Direction: Right Hand
• Number of Flutes: 3
• Finish/Coating: Steam Oxide
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
