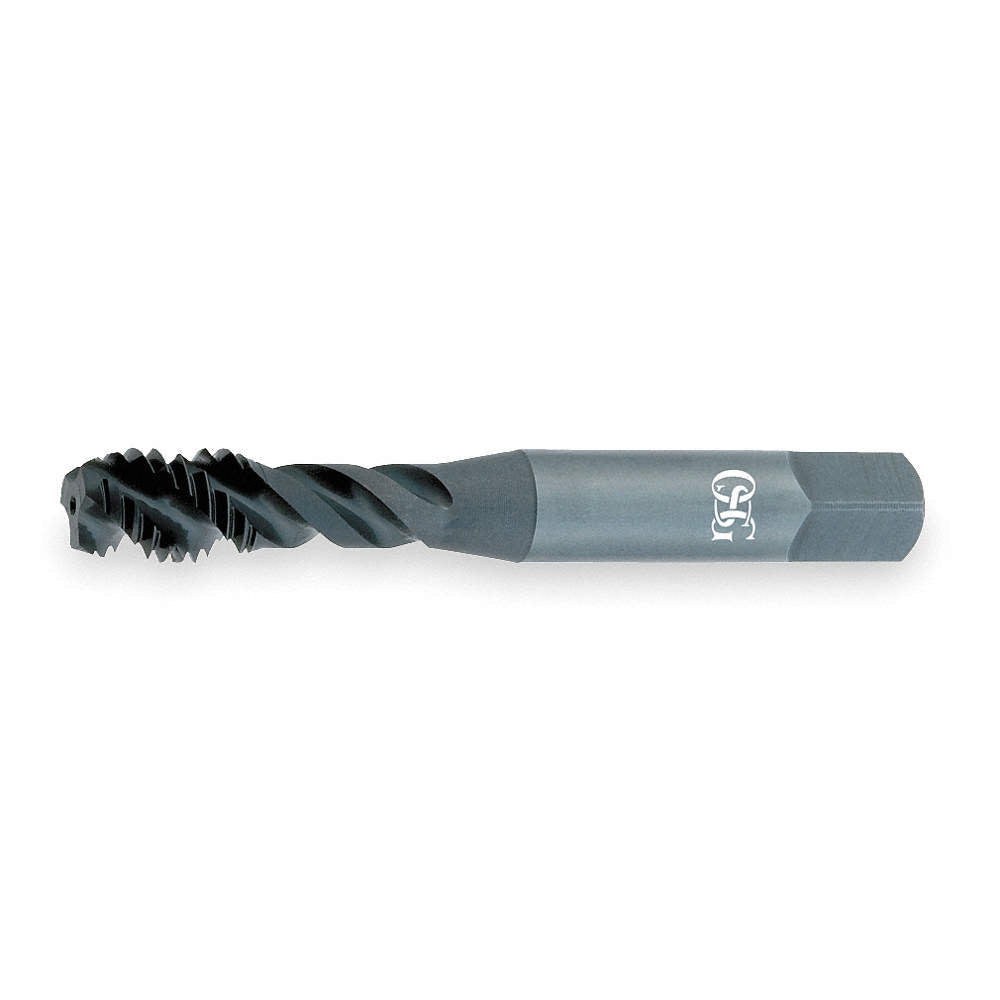

HY-PRO OSGTA-2916801 290 Series Spiral Flute Tap #4-48 UNF Semi-Bottoming Chamfer

Product Description

The HY-PRO 2916801 290 Series Spiral Flute Tap is designed for efficient threading in various materials. This tap features a #4-48 UNF size and is made from high-speed steel ensuring durability and precision.

• Made from vanadium high speed steel.
• 3 flutes enhance chip removal and reduce friction.
• Safe for use in alloy steel, carbon steel, and stainless steel.

Product Highlights

This tap is ideal for a range of applications, providing clean threads in difficult materials while maintaining high performance.

Product Information

Standard Information

• Brand: HY-PRO
• MPN: OSGTA-2916801

Technical Specifications

• Measurement System: Imperial
• Overall Length: 1-7/8 inches
• Shank Diameter: 0.141 inches
• Thread Length: 9/16 inches
• Thread Standard: UNF
• Cutting Direction: Right Hand
• Thread Size: #4-48
• Thread Limit: H2
• Chamfer Type: Semi-Bottoming
• Flute Direction: Right Hand
• Number of Flutes: 3
• Finish/Coating: Steam Oxide
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
