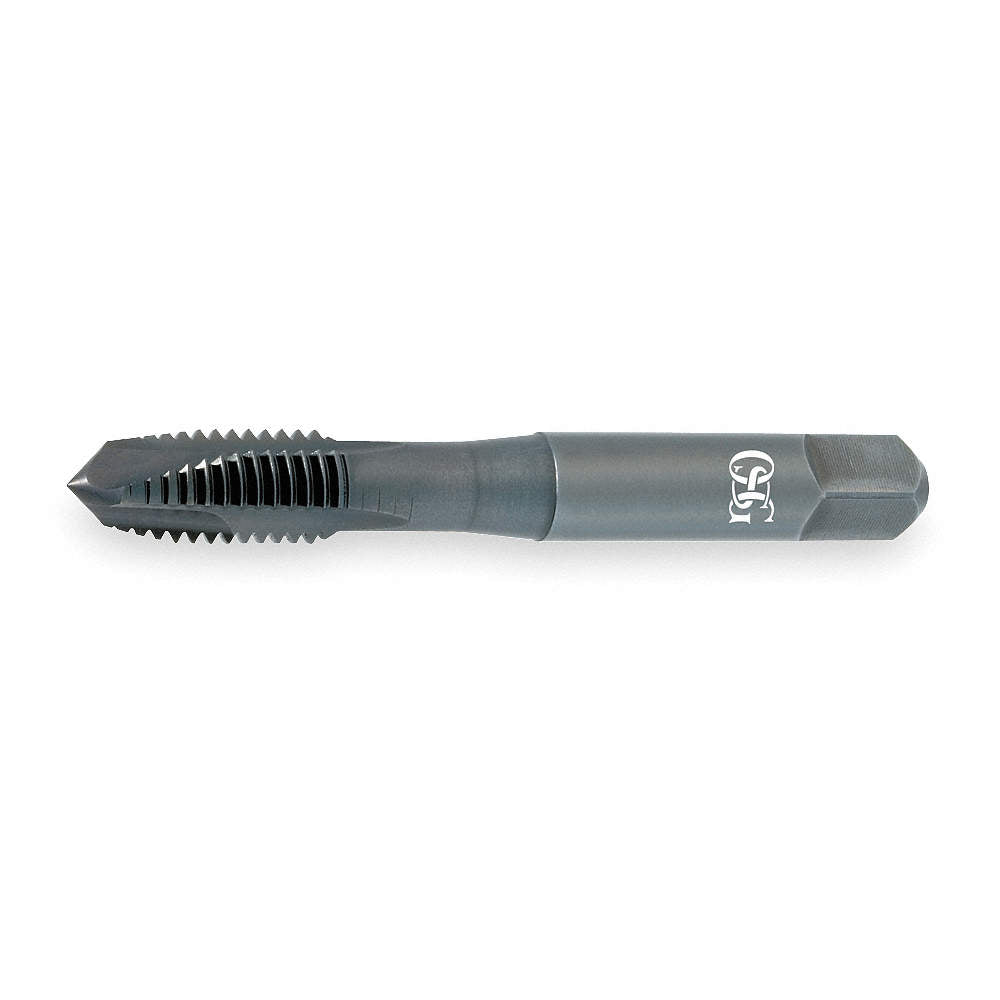

HY-PRO OSGTA-2854808 280 Series Spiral Point Tap 1/4 in-20 UNC Plug

Product Description

The HY-PRO 280 Series Spiral Point Tap, MPN OSGTA-2854808, is a precision tool made from vanadium high-speed steel, ideal for various applications in different industries. This tap is designed for 1/4 inch-20 UNC threads and features a plug chamfer with three flutes for efficient cutting. It is useful for creating threads in materials such as alloy steel, carbon steel, cast iron, die steel, hardened steel, and stainless steel.

• Constructed from high-speed steel for enhanced durability
• Designed with plug chamfer for better chip removal
• Right-hand cutting direction for effective threading

Product Highlights

The tap is suitable for both professional and hobbyist use, providing reliable performance across various materials.

Product Information

Standard Information

• Brand: HY-PRO
• MPN: OSGTA-2854808

Technical Specifications

• Measurement System: Imperial
• Overall Length: 2-1/2 inches
• Series: 280
• Shank Diameter: 0.255 inches
• Thread Length: 1 inch
• Thread Standard: UNC
• Cutting Direction: Right Hand
• Thread Size: 1/4 inch-20
• Thread Limit: H7
• Chamfer Type: Plug
• Number of Flutes: 3
• Finish/Coating: TiCN
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
