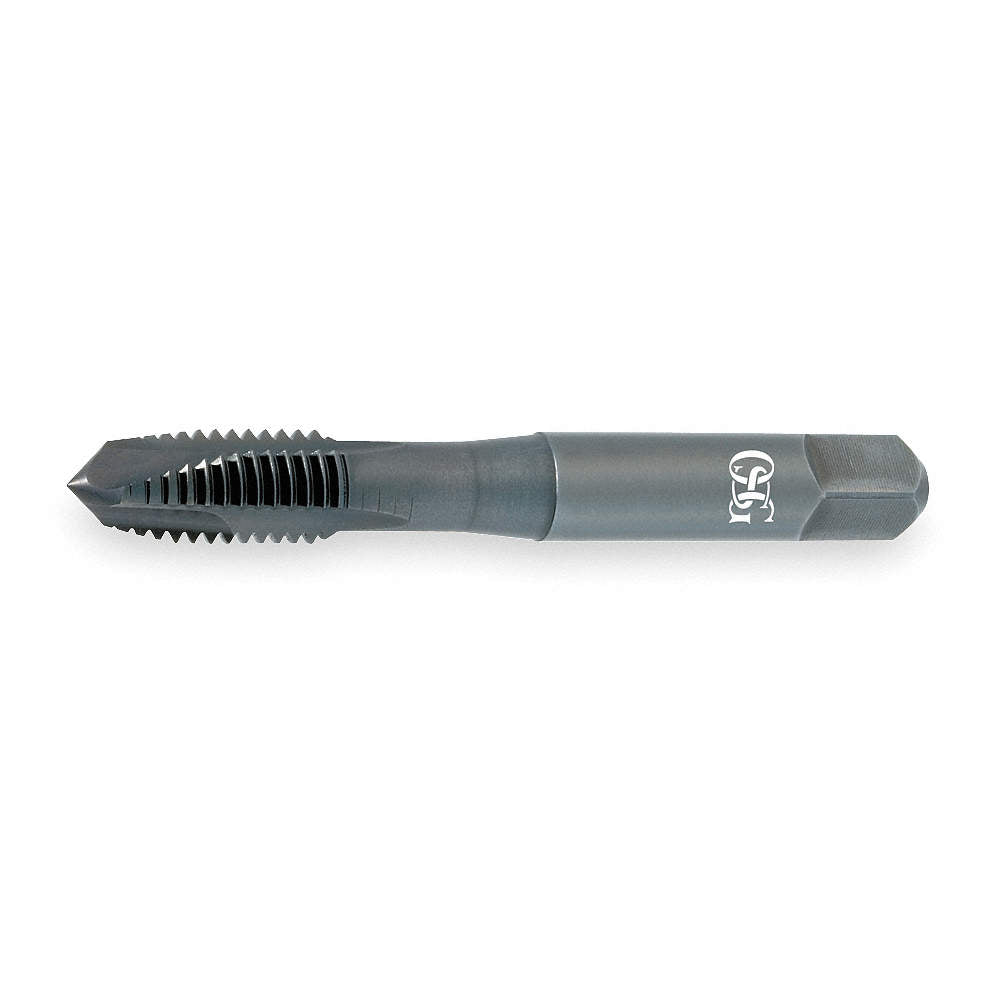

HY-PRO OSGTA-2831601 280 Series Spiral Point Tap 3/8 in-16 UNC

Product Description

The HY-PRO® 280 Series Spiral Point Tap, MPN OSGTA-2831601, is engineered for precision in threading operations across various materials. This tap is made from vanadium high-speed steel and is suitable for use in alloy steel, carbon steel, cast iron, die steel, hardened steel, and stainless steel. It features a plug chamfer with three flutes, allowing efficient chip removal and smooth operation during threading.

• Made from vanadium high-speed steel
• 3 flutes designed for optimal chip removal
• Compatible with multiple materials including hardened steel and stainless steel

Product Highlights

The tap is designed with an H3 thread limit and a right-hand cutting direction, ensuring compatibility for various threading tasks. It boasts an overall length of two and fifteen-sixteenths inches and a thread length of one and one-fourth inches.

Product Information

Standard Information

• Brand: HY-PRO®
• MPN: OSGTA-2831601

Technical Specifications

• Measurement System: Imperial
• Overall Length: 2-15/16 in
• Shank Diameter: 0.381 in
• Thread Length: 1-1/4 in
• Thread Standard: UNC
• Cutting Direction: Right Hand
• Thread Size: 3/8 in-16
• Thread Limit: H3
• Chamfer Type: Plug
• Number of Flutes: 3
• Finish/Coating: Steam Oxide
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
