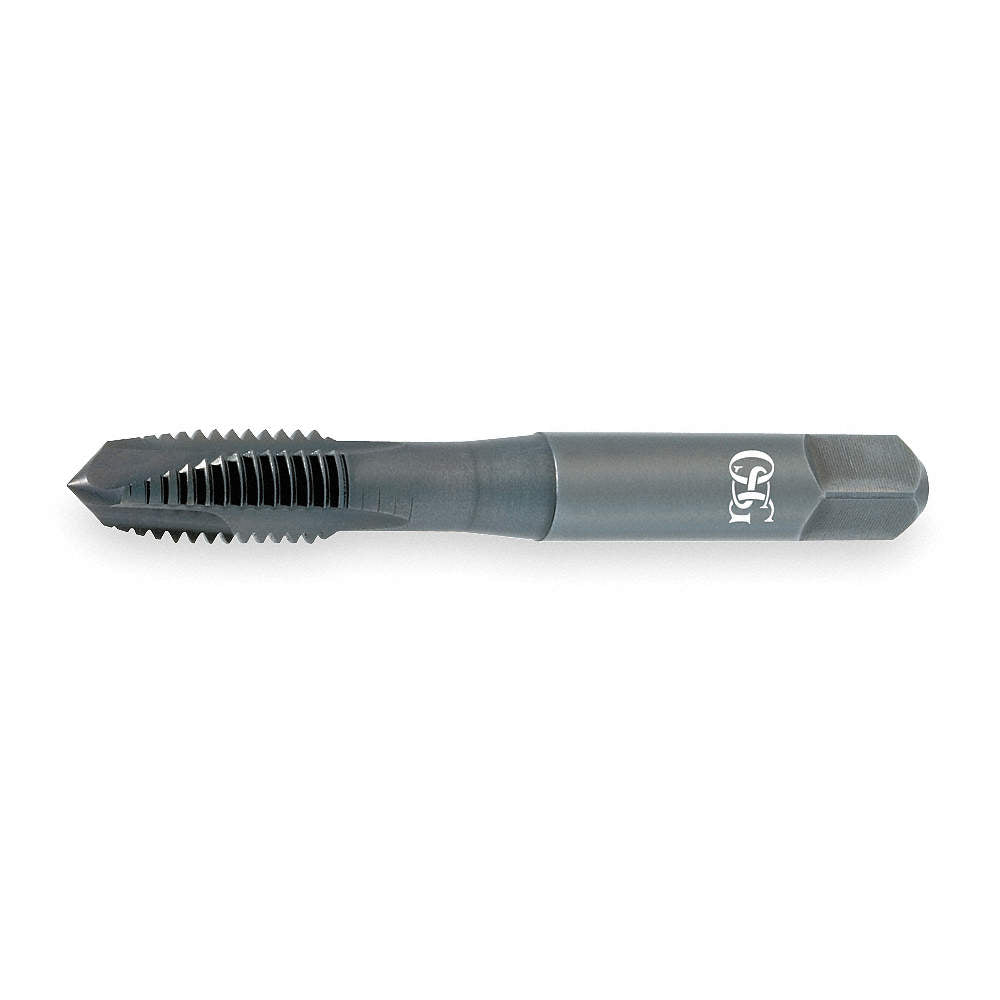

HY-PRO OSGTA-2812401 280 Series Spiral Point Tap Power #6-32 UNC Plug

Product Description

The HY-PRO OSGTA-2812401 is a spiral point tap designed for various industrial applications. This tap features a #6-32 UNC thread size and has a plug chamfer. Made from vanadium high speed steel, it provides strength and durability.

• Constructed from HSS-E material for enhanced performance.
• 11/16 inch thread length for secure fastening.
• Features a right-hand cutting direction and steam oxide finish.

Product Highlights

The HY-PRO tap is ideal for use in alloy steel, carbon steel, cast iron, and hardened steel applications.

Product Information

Standard Information

• Brand: HY-PRO
• MPN: OSGTA-2812401

Technical Specifications

• Measurement System: Imperial
• Overall Length: 2 inches
• Series: 280
• Shank Diameter: 0.141 inches
• Thread Length: 11/16 inches
• Thread Standard: UNC
• Cutting Direction: Right Hand
• Thread Size: #6-32
• Thread Limit: H3
• Chamfer Type: Plug
• Number of Flutes: 2
• Finish/Coating: Steam Oxide
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
