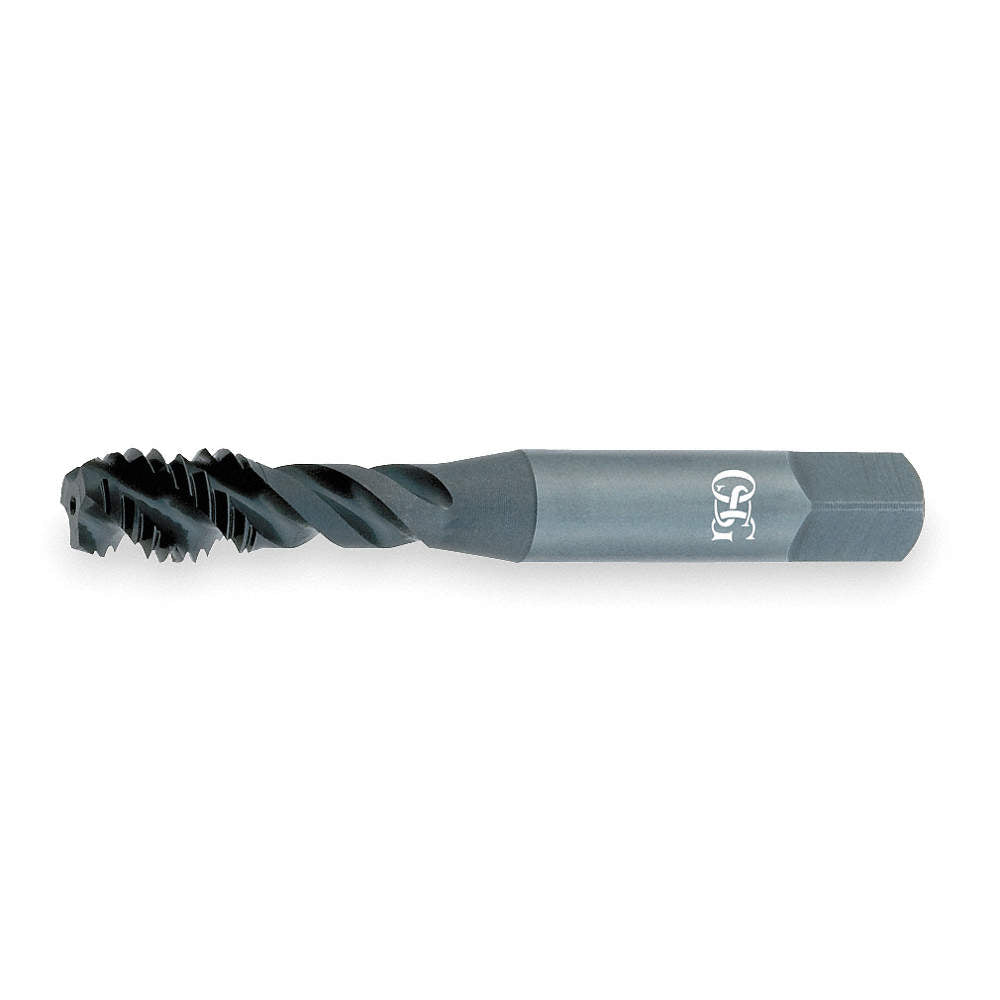

HY-PRO 2905601 290 Series Spiral Flute Tap, #2-56 UNC, Semi-Bottoming Chamfer, H2 Thread Limit

Product Description

The HY-PRO 290 Series Spiral Flute Tap, MPN OSGTA-2905601, is made from vanadium high speed steel. It is suitable for a variety of applications across different industries.

• Right hand cutting direction for efficient threading.
• Built to last with HSS-E material and steam oxide finish.
• Designed for use in alloy steel, carbon steel, cast iron, die steel, hardened steel, and stainless steel.

Product Highlights

This tap features a semi-bottoming chamfer and is ideal for through-hole applications.

Product Information

Standard Information

• Brand: HY-PRO
• MPN: OSGTA-2905601

Technical Specifications

• Measurement System: Imperial
• Overall Length: 1-3/4 in
• Shank Diameter: 0.141 in
• Thread Length: 7/16 in
• Thread Standard: UNC
• Thread Size: #2-56
• Chamfer Type: Semi-Bottoming
• Flute Direction: Right Hand
• Number of Flutes: 2
• Finish/Coating: Steam Oxide
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
• Thread Limit: H2
• Cutting Direction: Right Hand
