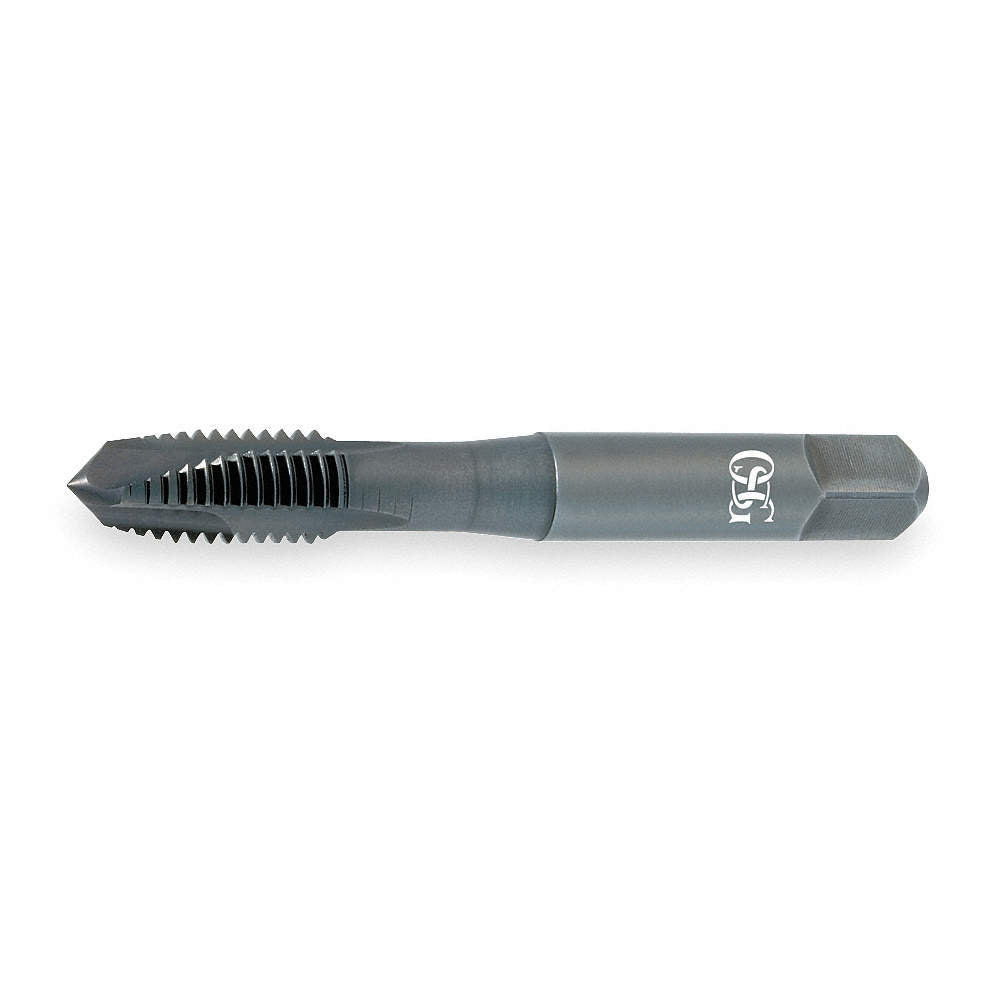

HY-PRO 2813801 280 Series Spiral Point Tap #10-32 UNC Plug Chamfer

Product Description

The HY-PRO 280 Series Spiral Point Tap, model OSGTA-2813801, is engineered from vanadium high-speed steel. This tap effectively serves a variety of threading needs across several materials.

• Features a plug chamfer design for efficient threading.
• Designed for right-hand cutting, suitable for various applications.
• Compatible with materials like alloy steel, stainless steel, and cast iron.

Product Highlights

This tap is reliable for consistent performance in metalworking tasks.

Product Information

Standard Information

• Brand: HY-PRO
• MPN: OSGTA-2813801

Technical Specifications

• Measurement System: Imperial
• Overall Length: 2-3/8 in
• Shank Diameter: 0.194 in
• Thread Length: 7/8 in
• Thread Standard: UNC
• Cutting Direction: Right Hand
• Thread Size: #10-32
• Thread Limit: H3
• Chamfer Type: Plug
• Number of Flutes: 3
• Finish/Coating: Steam Oxide
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
