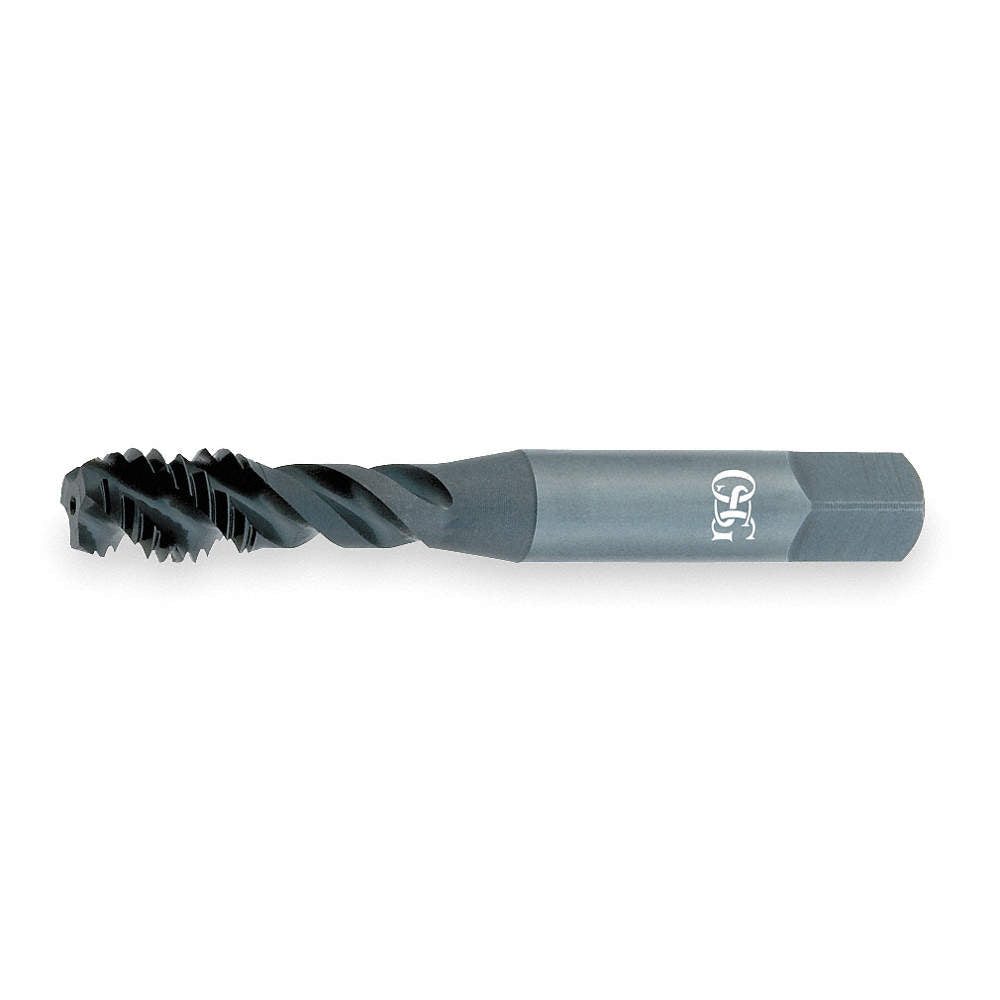

HY-PRO® OSGTA-2940801 290 Series Spiral Flute Tap 5/16 in-18 UNC

Product Description

HY-PRO® 290 Series Spiral Flute Tap, MPN OSGTA-2940801, is a reliable tap made from vanadium high speed steel. This tap suits various applications across different industries.

• Material: Vanadium high-speed steel
• Right hand cutting direction
• Thread size of five-sixteenths inch-18 UNC

Product Highlights

Designed for use with alloy steel, carbon steel, and stainless steel. This tap features a semi-bottoming chamfer, ensuring optimal thread cutting performance.

Product Information

Standard Information

• Brand: HY-PRO®
• MPN: OSGTA-2940801

Technical Specifications

• Measurement System: Imperial
• Overall Length: 2-23/32 inches
• Shank Diameter: 0.318 inches
• Thread Length: 1-1/8 inches
• Thread Standard: UNC
• Cutting Direction: Right Hand
• Thread Size: 5/16 inches-18
• Thread Limit: H5
• Chamfer Type: Semi-Bottoming
• Flute Direction: Right Hand
• Number of Flutes: 3
• Finish/Coating: Steam Oxide
• Material: HSS-E
• Material Application: Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel
• Through Coolant: No
