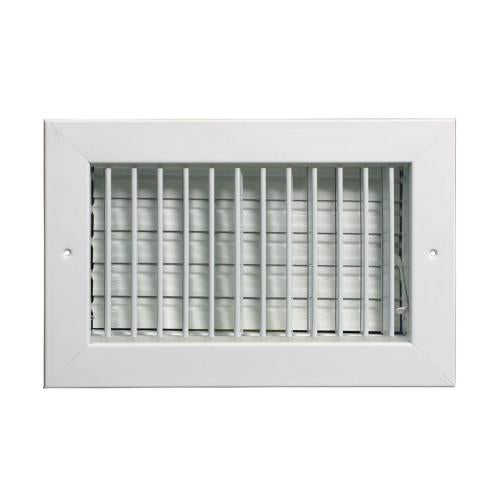

Hvac Parts-generic vm2006 Sidewall Register 20x6 White

Product Description

The HVAC PARTS-GENERIC vm2006 is an aluminum vertical blade sidewall register with an integrated multi-shutter damper, designed for residential and light commercial forced-air distribution systems. The register features vertically oriented blades that direct conditioned air horizontally across a room, while the multi-shutter damper allows field adjustment of airflow volume. The face opening measures 20 inches by 6 inches and ships in a white finish. HVAC technicians and installers use this type of register as a finished outlet grille at wall or sidewall duct terminations.

This register is suited for sidewall installations where vertical blade deflection is needed to spread airflow along a wall plane. The 20-inch by 6-inch face size fits a range of standard duct boot openings commonly found in residential and light commercial construction. The white finish blends with standard interior wall finishes. The built-in multi-shutter damper eliminates the need for a separate volume control damper behind the register in many installations.

Key Features

• Aluminum construction for corrosion resistance and lightweight handling
• Vertical blade design directs airflow horizontally for effective room air distribution
• Integrated multi-shutter damper allows on-site airflow volume adjustment
• 20-inch by 6-inch face size fits standard sidewall duct boot openings
• White finish suits standard residential and light commercial interior walls

Compatibility

Designed as an OEM-style replacement or new-installation sidewall register for forced-air HVAC systems using standard 20-inch by 6-inch sidewall duct terminations.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified installer. Shut down the air handling system before removing an existing register or accessing the duct boot. Secure the register to the wall using appropriate fasteners through the mounting flange, and verify the damper blades move freely before restoring system operation. Follow local mechanical codes for register placement and minimum throw distance requirements.

Technical Specifications

• Material: Aluminum
• Blade Orientation: Vertical
• Damper Type: Multi-shutter
• Face Size: 20 inches x 6 inches
• Color/Finish: White
• Mount Type: Sidewall

Standard Information

• Brand: HVAC PARTS-GENERIC
• Manufacturer Part Number: vm2006
