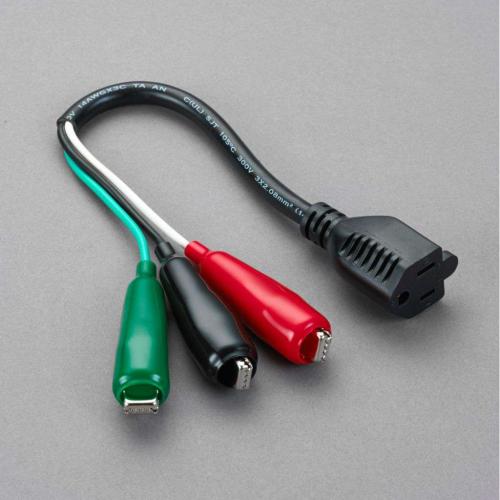

Hvac Parts-generic 69522 Adapter Cord 15 Amp Test Connector

Product Description

The HVAC PARTS-GENERIC 69522 is an adapter cord designed for use with 695 series test equipment. It features a large clip test connector rated at 15 amps, making it a practical accessory for HVAC technicians performing diagnostic and testing work in the field. The cord serves as an interface between test instruments and the circuits or components under evaluation. HVAC service professionals rely on accessories like this to extend the reach and flexibility of their diagnostic tools during system troubleshooting and commissioning work.

This adapter cord is suited for use in HVAC service environments where the 695 series instrument requires a large clip test connector interface. It is appropriate for both residential and light commercial applications where technicians need to connect test equipment to electrical circuits or components. The 15 amp rating supports standard low-voltage and line-voltage circuit testing tasks common in HVAC service calls.

Key Features

• Large clip test connector design for secure contact during diagnostics
• 15 amp rating suitable for standard HVAC circuit testing
• Designed as an adapter cord for 695 series test instruments
• Compact accessory format for field use by service technicians

Compatibility

Designed for use with 695 series test instruments requiring a large clip test connector adapter. Verify instrument model compatibility before installation.

Installation Notes

This accessory is installed and used by licensed HVAC technicians performing diagnostic work. De-energize any circuit before attaching or removing test connectors to avoid shock hazard. Follow applicable NEC guidelines when working with energized electrical systems. Inspect the cord and clips for damage before each use and replace if insulation or contact surfaces show wear.

Technical Specifications

• Current Rating: 15 amps
• Connector Type: Large clip test connector
• Application: Adapter cord for 695 series test equipment

Standard Information

• Brand: HVAC PARTS-GENERIC
• Manufacturer Part Number: 69522
