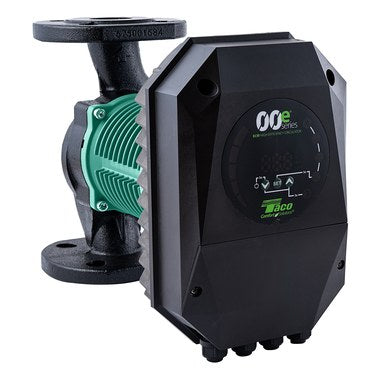

Taco VR20M-F HVAC Circulating Pump 0.035 to 1.088 hp 230V 1 Phase Flange Connection

Product Description

The Taco VR20M-F HVAC Circulating Pump offers a range of 0.035 to 1.088 hp and operates at 230 volts for efficient fluid circulation. This energy-efficient pump is ideal for use in potable systems, featuring a wet rotor design and variable speed for optimized performance.

• Ranged horsepower from 0.035 to 1.088 hp
• Operates at 230V with single-phase power
• Energy-efficient with a wet rotor design

Product Highlights

This Taco HVAC Circulating Pump ensures reliable performance with its 230V single-phase power. It's designed for efficiency, suitable for a range of potable systems, and features a wet rotor for maintenance-free operation.

Product Information

Standard Information

• Category: Pumps
• Subcategory: Hot Water Circulating Pumps
• Application: Potable Systems

Technical Specifications

• MPN: VR20M-F
• HP: 0.035 to 1.088
• RPM: 3,000
• Amps: 3.5
• Phase: 1
• Voltage: 230V
• Maximum Feet of Head: 41 ft
• Maximum Flow Rate: 195 gpm @ 1 ft of head
• Connection Type: Flange
• Housing Material: Cast Iron
• Impeller Material: 304 Stainless Steel
• Inlet/Outlet Size: 2 in
• Maximum Operating Pressure: 175 psi
• Maximum Media Temperature: 230 Degrees F
• Minimum Media Temperature: 36 Degrees F
• Dimensions: 16.75 in (length) x 7.09 in (width) x 11 in (height)
• Weight:
