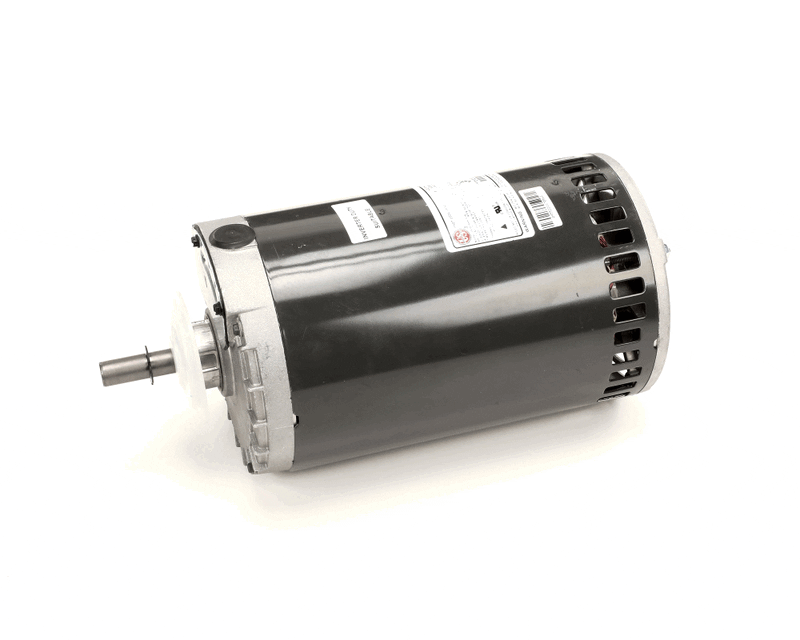

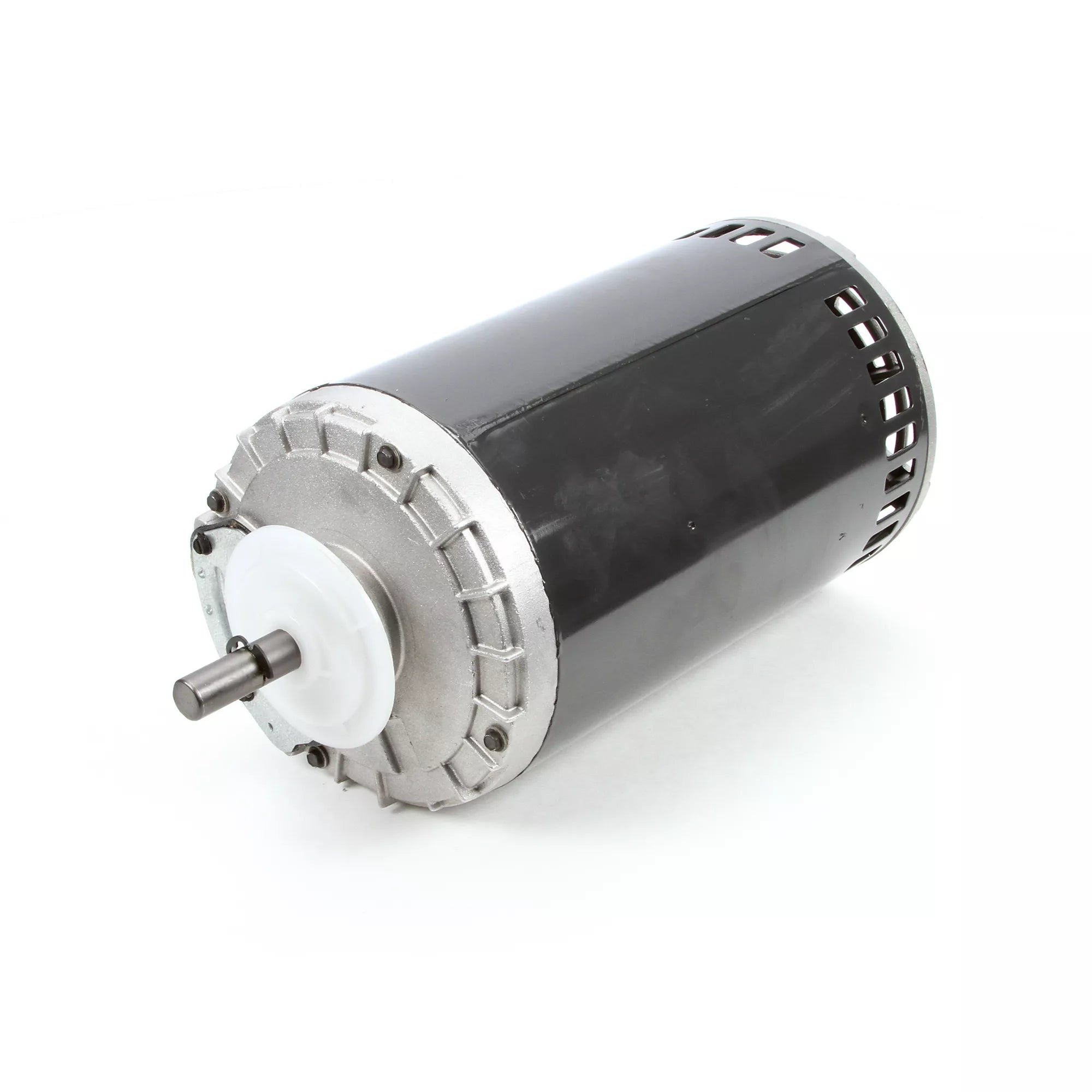

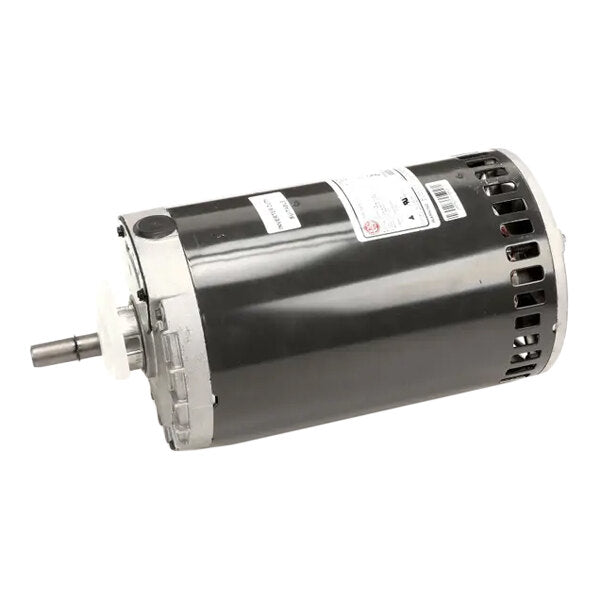

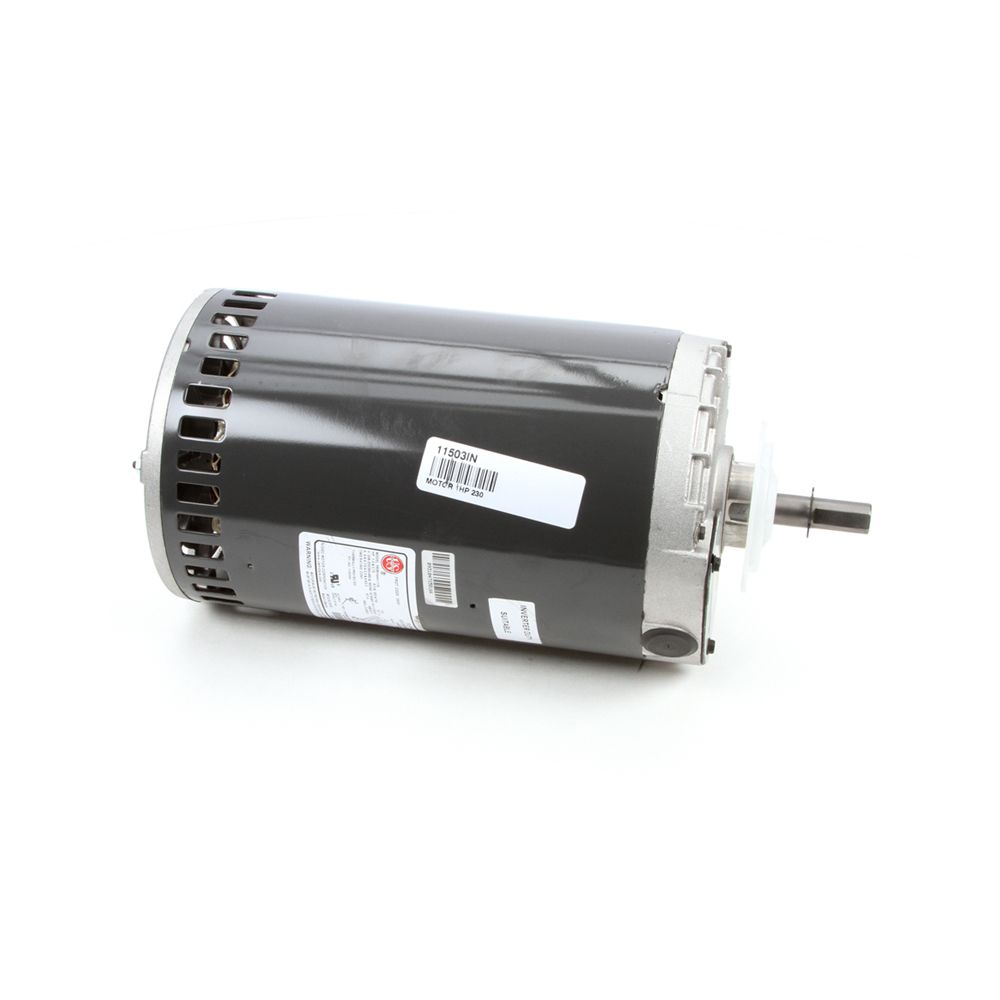

Hussmann 11503IN Motor 1Hp 230/460 VAC

Product Description

The Hussmann 11503IN motor is a 1 HP motor operating at 208-230/460 VAC. This motor is designed for use in Hussmann food service equipment. It features a reversible rotation and operates at 850 RPM, suitable for condenser and evaporator fan applications.

• 1 HP motor
• Reversible rotation
• Open Drip Proof (ODP) enclosure

Product Highlights

This Hussmann motor is ideal for refrigeration equipment, ensuring warranty compliance and optimal performance.

Product Information

Standard Information

• Brand: HUSSMANN
• Manufacturer Part Number: 11503IN
• Country of Origin: Mexico

Technical Specifications

• Amps: 4
• Basis Of Rotation View: Lead End
• Bearing Type: Ball
• Brand: Hussmann
• CSA Certified: Yes
• CSA Listing: Yes
• Cycle/Hertz: 50/60 Hz
• Duty: Inverter
• Full Load Amps: 4
• Height: 6
• Insulation Class: B
• Length: 15
• Motor Enclosure: Open Drip Proof (ODP)
• Motor HP: 1 HP
• Motor Type: PSC (Permanent Split Capacitor)
• Mounting Type: Flange
• NEMA Frame: 56
• Number of Speeds: 2 (Two)
• OPT Code: 11503IN
• Phase: Three
• Protection: Automatic
• Rotation: Reversible
• RPM: 850
• Shaft Diameter: 0.625"
• Shaft Length: 1.125
• UL Listed: Yes
• UL Recognized: Yes
• Voltage: 208-230/460 VAC
• Width: 6
• Country of Origin: MEX
• OEM Compatibility: Hussmann
• Input Voltage: 208-230/460
• Mounting: 56 Frame
• Speed: 850
• Horse Power: 1
• Type: 3 phase
• Equipment Type: MX, LEV Condenser-SM Evaporator
• Manufacturer part number: 11503IN
• Fits Brand: HUSSMANN
