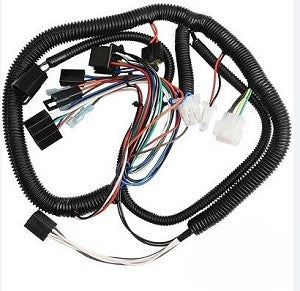

Husqvarna 501133001 Wiring Harness

Product Description

The HUSQVARNA 501133001 is a wiring harness designed as a direct replacement component for Husqvarna lawn and garden equipment. A wiring harness bundles and routes the electrical conductors that connect ignition, charging, and control circuits throughout the machine. This part ensures consistent electrical continuity between switches, solenoids, and the engine control system. Licensed technicians and experienced equipment service professionals typically handle harness replacements as part of electrical diagnostics or full drive-system rebuilds. Proper harness condition is critical for reliable machine operation and safety.

This harness is suited for use in residential and light commercial lawn and garden applications where Husqvarna equipment is in service. It is installed when the original harness shows signs of chafing, corrosion, broken connectors, or failed conductors that cause intermittent electrical faults or no-start conditions. Replacement is most common during seasonal service intervals or after damage from rodents or debris ingestion.

Key Features

• Direct OEM-style replacement for the original Husqvarna wiring harness
• Bundles and protects multiple electrical circuits in a single routed assembly
• Designed to maintain electrical continuity across ignition, safety, and control circuits
• Pre-terminated connectors support straightforward plug-and-play installation

Compatibility

Designed as an OEM-style replacement wiring harness for Husqvarna lawn and garden equipment. Refer to the Husqvarna parts lookup using your equipment model and serial number to confirm fitment before ordering.

Installation Notes

Wiring harness replacement should be performed by a qualified technician familiar with small-engine electrical systems. Disconnect the battery or remove the ignition key and allow all capacitors to discharge before handling any electrical components. Route the replacement harness along the original path, securing all clips and grommets to prevent chafing against moving parts or hot surfaces. Consult the equipment service manual for connector locations and circuit diagrams before beginning the swap.

Technical Specifications

• Part Type: Wiring Harness

Standard Information

• Brand: HUSQVARNA
• Manufacturer Part Number: 501133001
