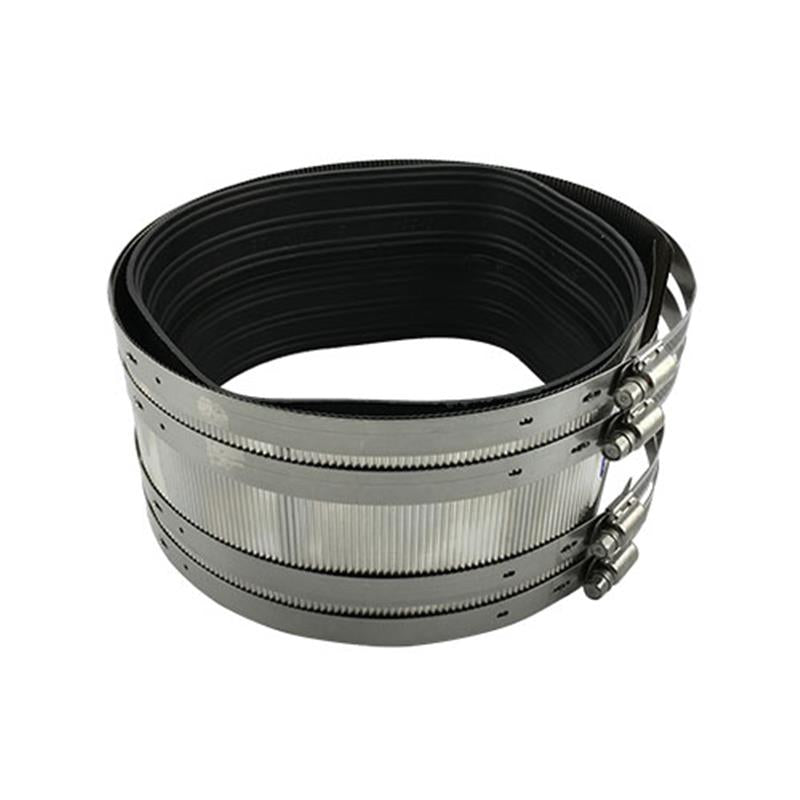

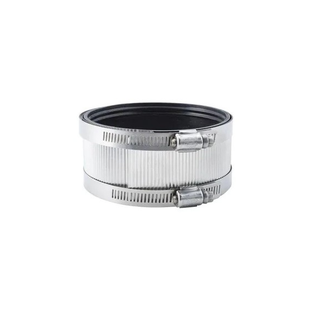

Husky 0016 Standard Coupling, 8 in, No-Hub

Product Description

The Husky 0016 standard coupling is used to join hubless cast iron pipe and fittings. It features a stainless steel shield and clamp assembly that are corrosion resistant. The gasket is manufactured from a properly vulcanized virgin compound in which the primary elastomer is polychloroprene (neoprene) conforming to ASTM C 564.

• Couplings consist of a stainless steel shield, clamp assembly and a gasket manufactured from a properly vulcanized virgin compound in which the primary elastomer is polychloroprene (neoprene) conforming to ASTM C 564
• The couplings is used to join hubless cast iron pipe and fittings made to CISPI 301 and/or ASTM A 888
• The stainless steel shield and clamp assemblies are corrosion resistant

Product Highlights

Connect hubless cast iron pipe and fittings in a DWV system with this standard coupling. Couplings meet/exceed material and performance requirements of ASTM C1277 and CISPI 310.

Product Information

Standard Information

• Brand: HUSKY
• Manufacturer Part Number: 0016
• Country of Origin: USA

Technical Specifications

• Domestic/Import: Domestic
• End Style: No-Hub
• Fitting/Connector Type: Coupling
• Length: 4 In
• Material: Stainless Steel
• Nominal Size: 8 In
• Type: Standard
• mpn: 0016
• SKU: ANA0016
• Clamps: Type 301 AISI stainless steel
• Screw: 5/16" hex head Type 305 AISI stainless steel
• Torque: 60 inch-pounds
• Shield: 0.007" thick Type 301 AISI corrugated stainless steel
• Gasket: High quality elastomeric compound (ASTM C-564)
• Compliance: Conforms to ASTM C1277 and CISPI 310
• UPC: 61577000016
