Huntington Brass P0223199 5.25 GPM Rough-In Mixing Valve

Product Description

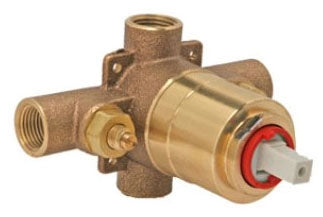

The Huntington Brass P0223199 is a rough-in mixing valve designed for shower applications. This valve features both volume and temperature control functions for effective water management. Made from solid brass, it provides durability and corrosion resistance. The flow rate is measured at five point twenty-five gallons per minute at sixty PSI, ensuring optimal performance for your shower setup.

• Flow Rate: 5.25 GPM at 60 PSI
• Constructed from solid brass for durability
• Includes features like a mud guard and service stop

Product Highlights

The P0223199 offers dual functionality, where lifting controls the volume and turning adjusts the temperature. It also comes equipped with an integral stop for easy servicing.

Product Information

Standard Information

• Manufacturer: Huntington Brass
• Material: Solid Brass

Technical Specifications

• Type: Rough-In, Mixing, Volume Control, Temperature Control
• Flow Rate: 5.25 GPM at 60 PSI
• Number of Valves/Handles: 1
• Applicable Standard: IAPMO, UPC/CUPC
• Inclusions/Features: Mud Guard, Service Stop, Adjustable Hot Temperature Limit Stop, Ceramic Disc and Pressure Balance Cartridge
• Used On Item: Shower Faucet
• Finish: Raw Brass
