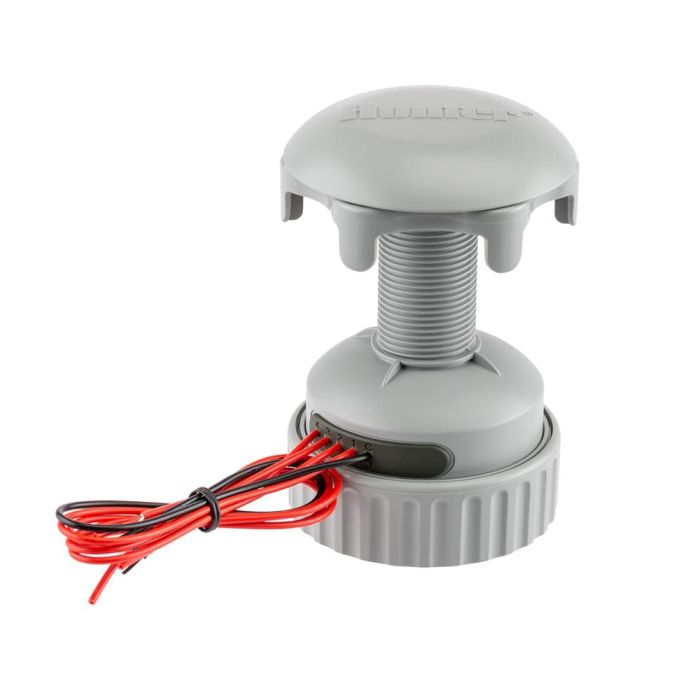

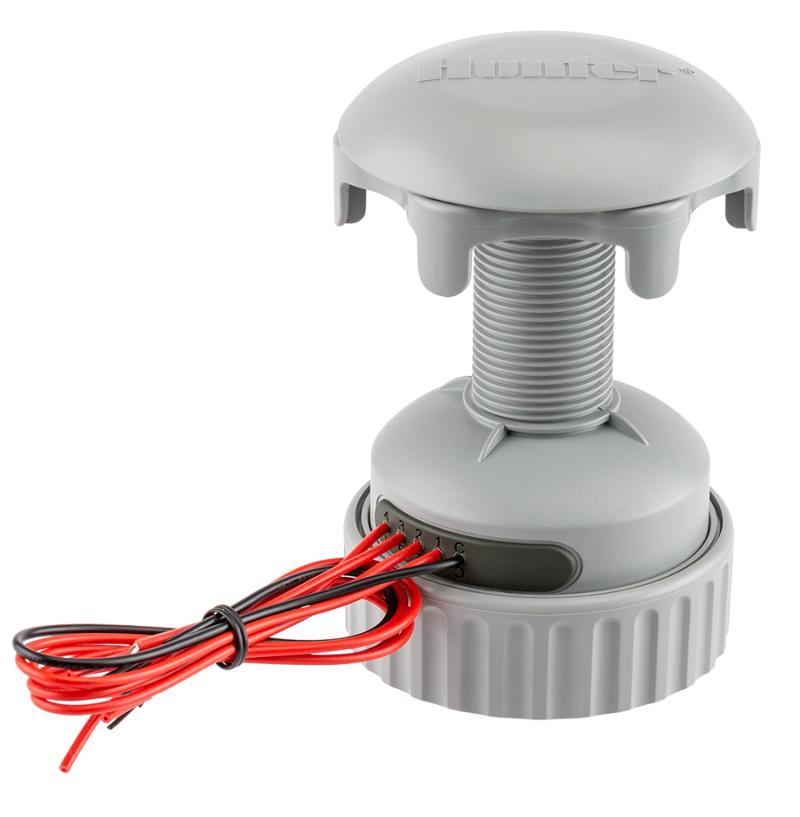

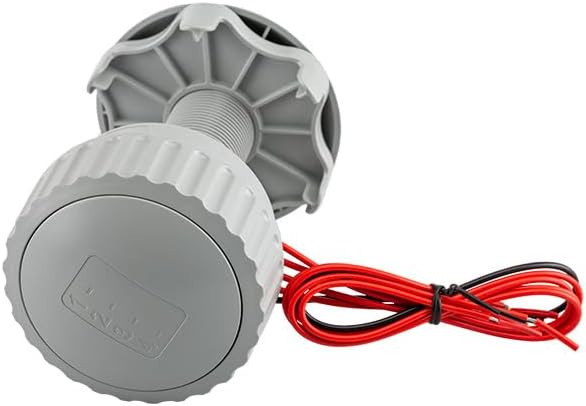

Hunter WVL-400 Wireless Valve Link 4-Station

Product Description

The HUNTER WVL-400 Wireless Valve Link enables wire-free valve control and monitoring for ICC2 or HCC control systems. Add valves up to 2,000' without new wiring. It simplifies installation for landscapes by eliminating costly field wires. Two-way communications confirm field performance. Operates Hunter DC-Latching Solenoids.

• Low-profile, waterproof valve box lid mount for field durability
• Works with Hunter ICC2 and HCC Controllers and is compatible with Centralus and Hydrawise Software
• No field wires, wire breaks, or tracking

Product Highlights

The Wireless Valve Link replaces commodity wire with Hunter ingenuity, providing an efficient alternative to activating irrigation valves.

Product Information

Standard Information

• Brand: HUNTER
• Manufacturer Part Number: WVL-400
• Country of Origin: China

Technical Specifications

• LoRa radio: 900 MHz for North America
• Maximum distance from WVL to solenoid: 100' with 18 AWG wire
• Operates: Hunter DC-Latching Solenoids
• Easy setup with: iOS 9.0 or above, Android 5.0 or above , and Bluetooth apps
• Two-way communications: confirm field performance
• Built-in: site survey and manual test functions
• Approvals: WVL in-box control links: IP68 (submersible), RPT Wireless Solar Repeater: IP55 (outdoor), UL, cUL, FCC, CE, UKCA, RCM, ISED
• Radio Frequency: 900 MHz LoRa radio (North America only)
• Stations: 4-station configuration
• Compatibility: Operates Hunter DC-Latching Solenoids
• Power: One or two 9 VDC batteries per WVL (Replace batteries once per season or year)
• Features: Built-in site survey and manual test functions, Easy, free set up with Bluetooth app (iOS 9.0 or above, Android 5.0 or above)
• Voltage: 9 Volts (DC)
• Material: Plastic
